Van Raises/Extensions - II104

In stock

£89.99
Delivery time:
Shipping cost:
  • 70 mm effective lifting pad extension

  • Compatible with Kroemer TP22 and TP11

  • 50 mm connection diameter

  • Electroplated zinc-coated surface

  • Scope of delivery: 4 lifting pad extensions

Description

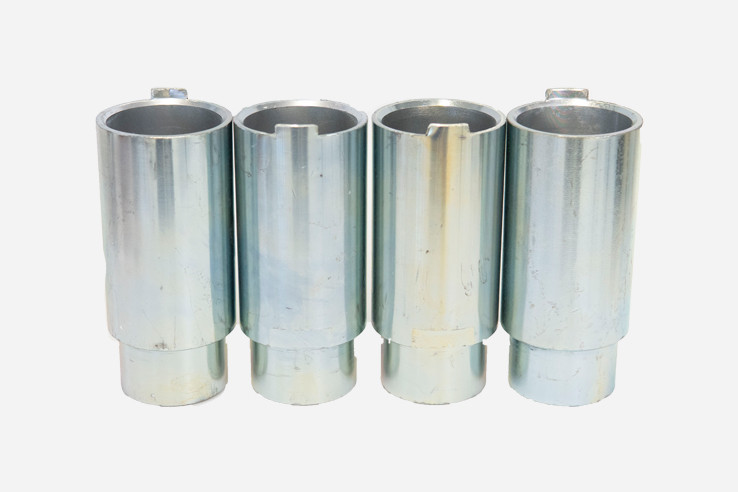

Set of 4 lifting pad extensions, 70 mm – II104

The Kroemer II104 lifting pad extensions increase the support height of the lifting pads on a compatible vehicle lift by 70 mm. They are intended for vehicles with higher designated lifting points, such as vans and light commercial vehicles.

The electroplated zinc-coated adapters plug directly into compatible lifting pads. Each set contains four adapters and is intended for Kroemer TP22 and TP11 lift series. They may also fit lifts from other manufacturers if the connection dimensions and interface match.

Features of the II104 lifting pad extensions

  • 70 mm effective height increase: For higher vehicle lifting points.
  • Set of 4 adapters: For a compatible lift with four lifting pads.
  • Plug-in connection: Insertion and removal with a suitable interface.
  • 50 mm connection diameter: For compatible lifting pads with a matching bore.
  • Electroplated zinc coating: Surface protection against corrosion.
  • Approx. 1.1 kg per adapter: Easy to handle in the workshop.

Reaching higher vehicle lifting points

On vans and certain commercial vehicles, the designated lifting points are often higher above the floor than on conventional passenger cars. The II104 extensions raise the lifting pad support height so that the pads can reach these points.

Each adapter has an overall height of 105 mm. Once installed, the effective height increase is 70 mm.

The adapters do not change the lift's rated capacity or permissible load distribution. Vehicle weight, centre of gravity and lifting points must comply with the vehicle and lift manufacturers' requirements.

Compatibility with Kroemer and other lifts

The II104 adapters are intended for all Kroemer lifts in the TP22 and TP11 series.

Use with other two-post lifts and scissor lifts with round lifting pads is possible if the following conditions are met:

  • Internal diameter of the connection bore: 50 mm
  • Matching connection interface
  • Suitable installation conditions according to the technical drawing and manufacturer's instructions

Compatibility note: A matching bore diameter alone does not establish full compatibility. Check the interface geometry and installation conditions before ordering.

Installation and safety

Insert the adapters directly into the designated lifting pad connections on a compatible lift. Before use, check that each adapter is fully and securely seated in accordance with the operating manual and technical drawing.

Adapters, lifting pads and rubber pads must be free from cracks, deformation and visible damage. Do not use an affected support point if defects are found.

Do not stack extension adapters or modify the connection interface without appropriate technical approval.

Scope of delivery

4 × Kroemer II104 lifting pad extension, 70 mm

Lifting pads, rubber pads and other connection components are not included. These must already be available or purchased separately.

Technical Data

Technical Data

SKU II104
EAN-Code 0738964858428
Delivery Time 5–10 working days
Shipping costs 10.49 €
Suitable for express delivery No
Weight 20.000
For models TP11, TP22
Height 105 mm
Weight 1 kg
Length 130 mm
Diameter Ø Ø 50 mm (mounting diameter)
Number of parts installed -
Delivery Scope

Delivery Scope

  • 4 × Kroemer lifting pad extensions II104, 70 mm
