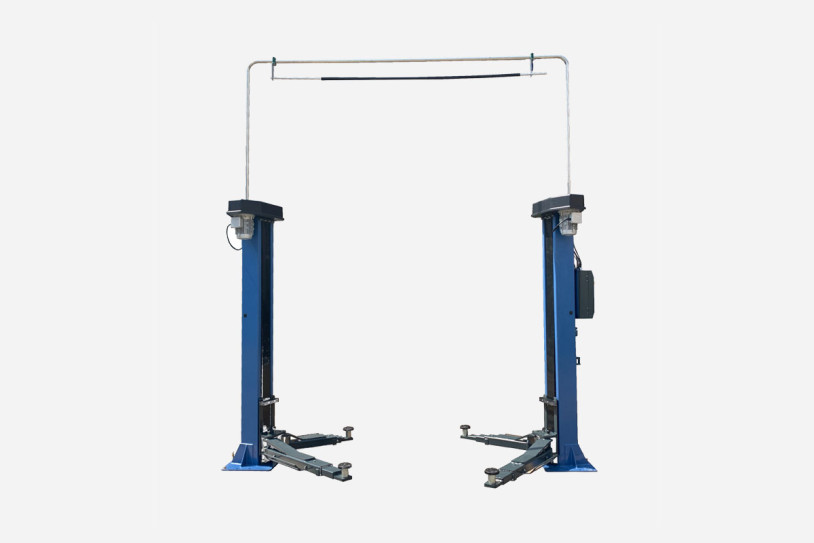

Mechanical 2 Post Spindle Lift 4.0t "Paris" Expert

Special features of "Paris"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

• Maximum lifting height 1,920 mm

• no override

• High-quality and solid construction (weight 850 kg)

• very low column height of only 2599 mm enables installation in low rooms

• Powder-coated paintwork with scratch-resistant surface treatment
  a concrete thickness of 200 mm C20/25 double reinforced is sufficient

• Symmetrical lifting arms with automatic locking and unlocking

• High-quality support columns made of special rolled profile

• Powerful aluminum industrial electric motor with IP 54 processor + aluminum unit
  automatic safety stop when lowering if an obstacle blocks the support arm

• Cable guide tubes for connecting the two lifting columns included in the scope of delivery (max. installation height 4200 mm, system can be shortened)

• Large tool storage areas on the long support arms

Especially in the commercial professional sector, there are special requirements for car lifts. With the "Paris" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 4,000 kg. Even the small trucks as well as caravans can be lifted easily. It should be noted that on one side the support arms are 1200mm long and the other side is supplied 1550mm (see dimensions in the technical drawing).

With a spindle diameter of 60 mm, we use the largest spindles/carrying nuts on the market, which means less friction and therefore less wear.

The columns were manufactured using the highest quality Auropont special steel (Q235) and edged with the help of a machine from a Trumpf subsidiary. Our welders almost exclusively use Panasonic® welding units to assemble this model in order to further increase the production quality for you. Panasonic garantiert tiefporige Durchdringung des Stahls und fügt diesen passgenau, verformungsfrei und ohne Blasenbildung (Bruch) zusammen.

The cable connections inside the control panel were pressed by machine. In addition, only branded electrical components were installed.

In addition, the "Paris" can be equipped with an additional 230V socket with an external 24V connection option. Because space and socket outlets are scarce, especially in professional workshops.

With our additional options, this Krömer model can be perfectly adapted to the individual needs of your workshop: For working with vans, buses, jeeps, etc., our 100 mm high Krömer van risers are also available as an additional option with extra charge.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 2-post car lift "Paris" - TP90 has been tested and approved in accordance with the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! - Unfortunately, most of our competition prefers to work with companies that charge less!

Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel.

* additional hand pump is required to release the lift from the safety catch
