Hydraulic Hose 2800 mm TP22 II221

Hydraulic Hose II221 for TP22 2-Post Lift – 2,800 mm

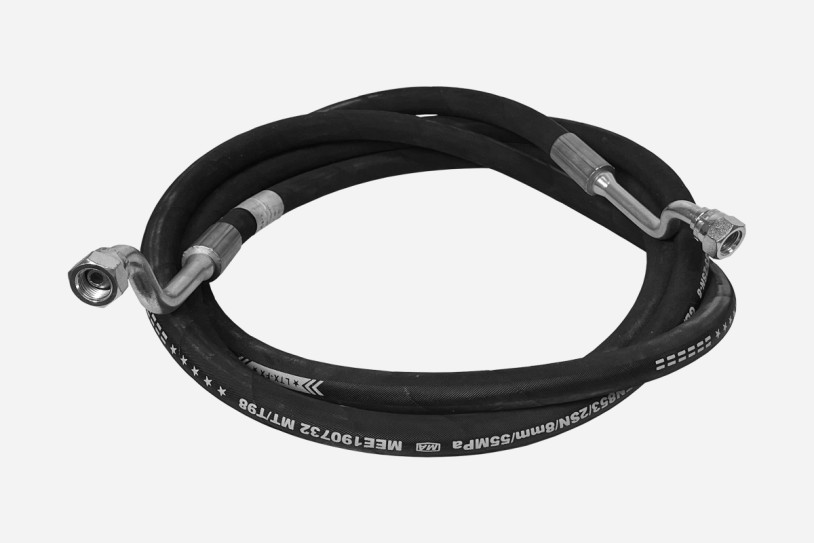

The II221 hydraulic hose is a replacement part specifically designed for the Kroemer TP22 2-post lift. The hydraulic hose connects the main cylinder to the auxiliary cylinder and ensures the reliable flow of hydraulic oil between the two cylinders. This makes it an essential component of the hydraulic lifting system.

The hose is routed under the lift’s drive-over plate and runs from cylinder to cylinder. With a length of 2,800 mm, it is tailored to the TP22’s intended hose routing. The DKRS fittings on both ends allow for connection to the corresponding components of the hydraulic system.

A damaged, leaking, or worn hydraulic hose can impair the lifting system’s function and lead to a loss of hydraulic oil. The II221 is therefore ideal as a replacement or spare part to restore the proper hydraulic connection between the cylinders.

Product Features

• Hydraulic hose for the Kroemer TP22 two-post lift
• Connects the main cylinder to the auxiliary cylinder
• Reliably supplies hydraulic oil to the cylinders
• Designed to be routed under the drive-over plate
• DKRS/DKRS connection on both ends
• Length: 2,800 mm
• Robust design for workshop use
• Suitable as a replacement or exchange part

Technical Specifications

• Part Number: II221
• EAN: 0703441935732
• Component: Hydraulic hose
• Length: 2,800 mm
• Connections: DKRS/DKRS
• Specified contact pressure: 60 MPa
• Suitable for: Kroemer TP22
• Number of parts installed: 1 piece
• Power connection: not required

Note: Before ordering, compare the part number, hose length, and connection type with the existing component. According to the current product page, the hydraulic hose has a DKRS/DKRS connection type.

1 hydraulic hose
