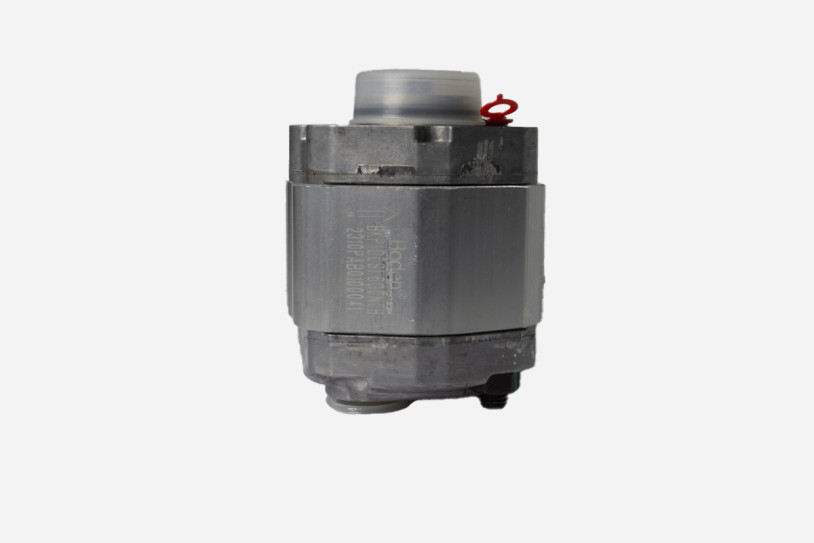

Hydraulic pump for short-rise scissor lifts ALL002

ALL002 hydraulic gear pump with 1.6 cm³/rev. for Kroemer short-rise scissor lifts

The ALL002 hydraulic pump is a suitable replacement part for compatible Kroemer short-rise scissor lifts. It is installed within the hydraulic power unit and pumps the hydraulic oil into the cylinders. This supports the required pressure build-up and reliable operation of the lifting mechanism.

With a displacement of 1.6 cm³ per revolution, the pump is designed for the corresponding hydraulic system of the lift. The compact component is made from aluminium and steel, combining a low weight with a robust construction for regular workshop use.

A worn or damaged hydraulic pump may cause delayed pressure build-up, reduced lifting performance, unusual operating noises or uneven lifting movement. Professional replacement of the individual pump allows the hydraulic power unit to be repaired without necessarily replacing the complete hydraulic unit.

Product features

• Hydraulic pump for compatible Kroemer short-rise scissor lifts
• Replacement part for the lift’s hydraulic power unit
• Pumps hydraulic oil into the hydraulic cylinders
• Displacement of 1.6 cm³ per revolution
• Supports pressure build-up and operation of the lifting mechanism
• Compact design for installation in the hydraulic power unit
• Robust construction made from aluminium and steel

Technical data

• Item number: ALL002
• Product type: hydraulic pump
• Application: Kroemer short-rise scissor lifts
• Displacement: 1.6 cm³/rev.
• Length: 110 mm
• Width: 70 mm
• Height: 70 mm
• Weight: 920 g
• Material: aluminium and steel
• EAN: 0757284129247

Scope of delivery

• 1 ALL002 hydraulic pump

Important application note

Before ordering, carefully compare the item number, displacement, dimensions, housing shape, connection positions and direction of rotation with the existing hydraulic pump. Visually similar pumps may differ in terms of displacement, connections and direction of rotation.

Replacement must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. The hydraulic system must be fully depressurised before dismantling.

After installation, check that the connections and seals are correctly fitted and leak-tight. The hydraulic oil level, pumping direction, pressure build-up and smooth raising and lowering movement of the lift must also be checked.
