Lifting arm locking mechanism for 1-post lift I170
In stock
- Delivery time:
- Shipping cost:
- I170 locking mechanism for the front lifting arms of a Kroemer 1-post lift
- Precisely fitting metal spare part for reliable locking and unlocking
- The I300 component is also required for complete functionality
Description

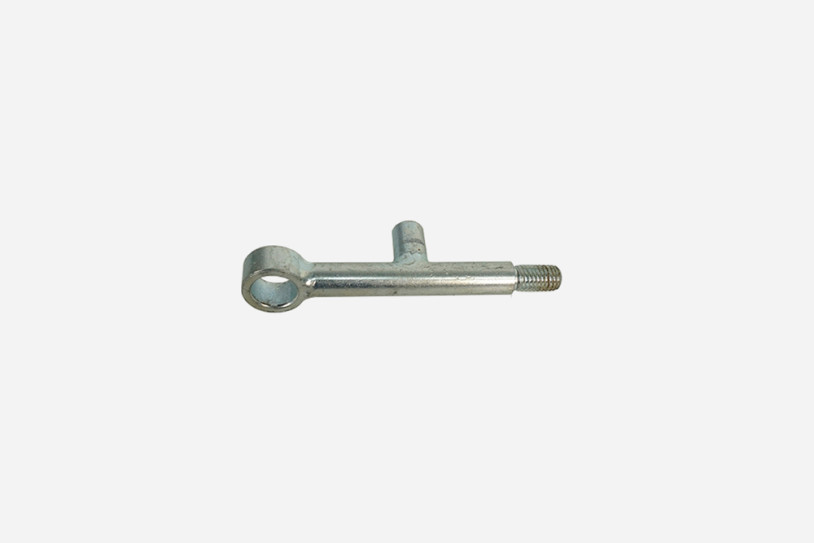

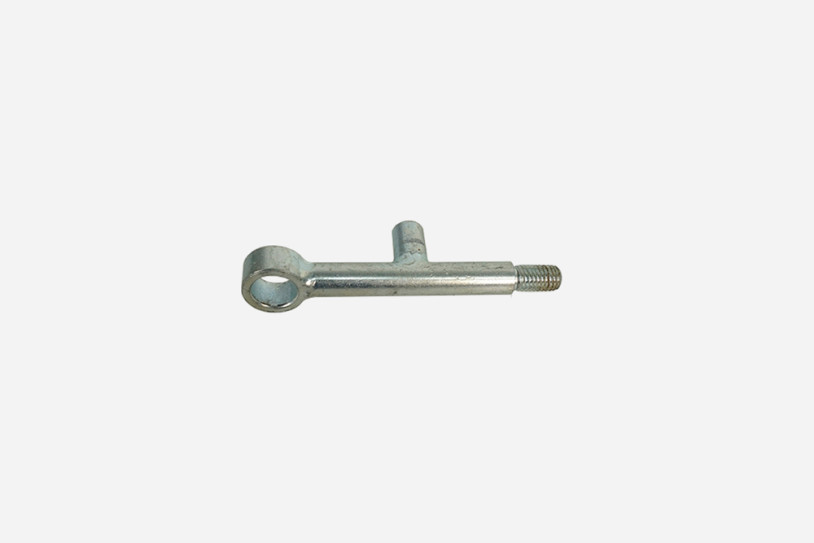

Locking mechanism for the lifting arms of the Kroemer 1-post lift – I170
The I170 locking mechanism is a precisely fitting spare part for the front lifting arms of a Kroemer 1-post lift. The component serves as the operating lever for the lifting arm locking mechanism and supports reliable locking and unlocking of the lifting arms.
A damaged, bent or worn locking mechanism may impair the operation of the lifting arm lock. Replacing the component in good time allows the intended function of the locking mechanism to be restored correctly. The compact metal design is matched to the existing mounting point on the lift and can be installed as part of a professional repair.
With an overall length of 92.8 mm including the eye and a pin diameter of 10 mm, the locking mechanism is suitable as a replacement part for the corresponding lifting arm mechanism. The distance between the centre of the pin and the centre of the eye is 38.8 mm.
Product features
- Locking mechanism for the front lifting arms of a Kroemer 1-post lift
- Serves as the operating lever for the lifting arm lock
- Supports the locking and unlocking of the lifting arms
- Precisely matched dimensions for the intended lifting arm mechanism
- Robust metal design for regular workshop use
- Suitable for replacing a damaged or worn component

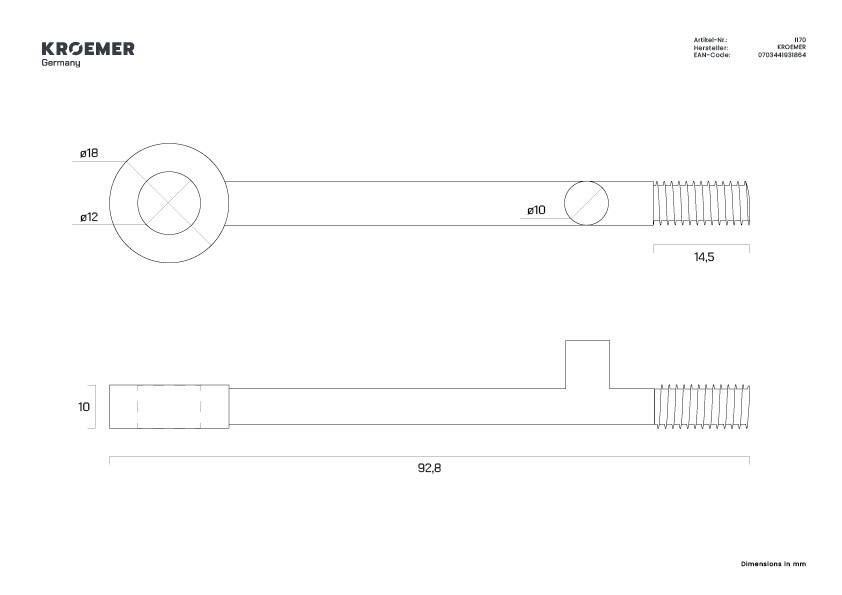

Technical specifications
- Item number: I170
- Overall length including eye: 92.8 mm
- Internal diameter of the eye: 12.3 mm
- Pin diameter: 10 mm
- Pin length: 17 mm
- Distance between pin and eye, measured from centre to centre: 38.8 mm
Scope of delivery
- 1 I170 lifting arm locking mechanism
Important application note
The matching I300 component is also required for the complete function of the lifting arm locking mechanism. Before ordering, compare the stated dimensions and design of the spare part with the existing component. Installation must only be carried out when the lift is fully lowered, switched off and secured against unintentional operation.
Technical Data
Technical Data
| SKU | I170 |
|---|---|
| EAN-Code | 0703441931864 |
| Delivery Time | 10 business days |
| Shipping costs | 10 |
| Suitable for express delivery | No |
| Anzahl verbauter Teile | - |
Delivery Scope
Delivery Scope
1 support arm lock
