II159 equalisation cable for KHG2016TP-3.2T

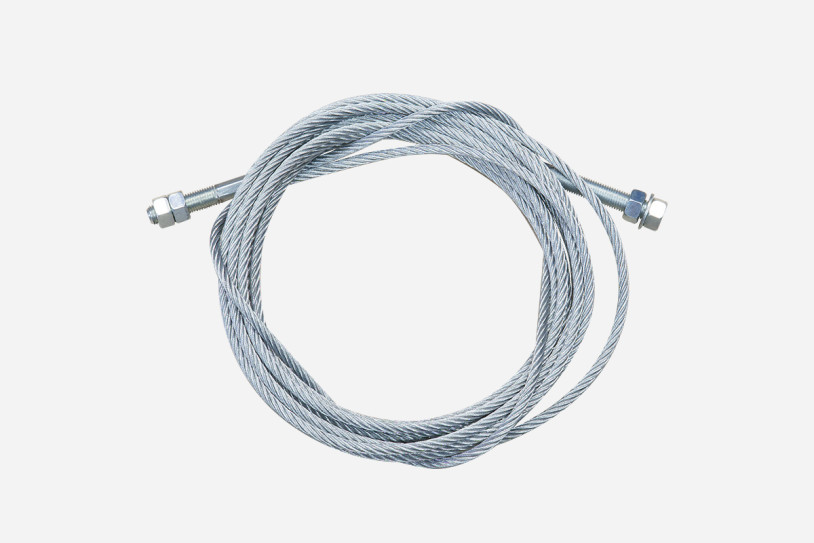

7,950 mm equalisation cable for Kroemer KHG2016TP-3.2T 2-post lift – II159

The II159 equalisation cable is a suitable spare part for the Kroemer KHG2016TP-3.2T 2-post lift. The steel cables support the even movement of both lifting carriages and contribute to the reliable lifting operation of the lift.

A 2-post lift is fitted with a total of two equalisation cables of identical length. For this reason, this item is available individually or as a complete set containing two equal-length cables at a reduced set price. This allows both cables to be replaced at the same time.

The equalisation cables are continuously exposed to mechanical stress during lifting and lowering. Damaged, corroded or worn cables may impair the even movement of the lifting carriages. Timely replacement helps maintain reliable operation and supports the professional repair of the lift.

This equalisation cable has a length of 7,950 mm and an M16 crimp fitting. A serial number or identification marking is located at both ends of the cable. This provides information about the cable length and the generation of the lift. Before ordering, the marking on the existing cable should therefore be carefully compared with the specifications of the spare part offered.

Product features

• Suitable spare part for the first-generation Kroemer KHG2016TP-3.2T 2-post lift
• Reduced set price compared with purchasing the cables individually
• Supports the even movement of both lifting carriages
• Robust steel cable for regular workshop use
• Serial number at both cable ends for identifying the length and generation

Technical specifications

• Item number: II159
• Compatible model: Kroemer KHG2016TP-3.2T
• Length of each equalisation cable: 7,950 mm
• Crimp fitting: M16
• Design: two equalisation cables of identical length
• Identification: serial number at both cable ends

Scope of delivery

1 II159 equalisation cable with a length of 7,950 mm or as a set of 2

Important application note

Before ordering, check the serial number or identification marking at both ends of the existing equalisation cable. The marking provides information about the cable length and the generation of the lift, making it easier to select the correct spare part.

After installation, both equalisation cables must be correctly tensioned and adjusted to ensure the even movement of the lifting carriages. Replacement must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, the cable routing, fastenings, tension and lifting movement must be checked carefully.
