4x Transporter Erhöhungen/Extension-Erhöhungen

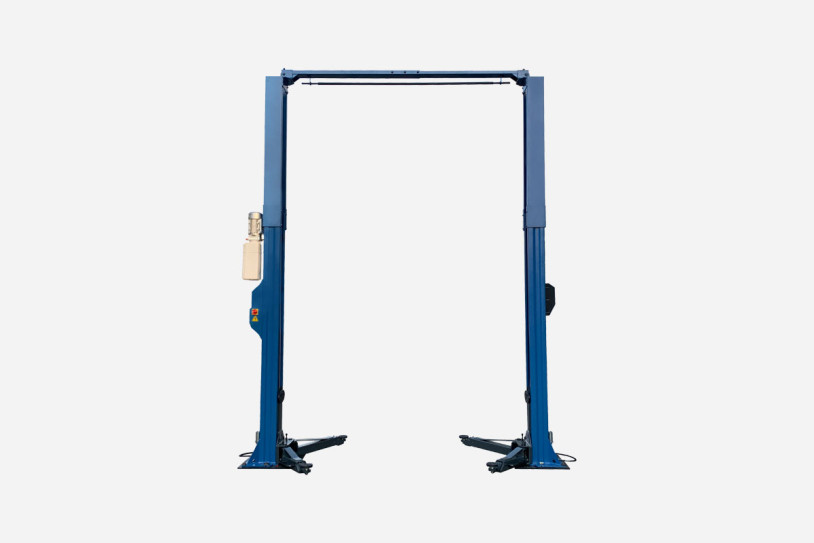

Vehicle 2 Post 4.0 "Berlin" Lift electromagnetic - barrier free

As low as €2,299.00
  • Industrial control according to the latest standards for commercial use
  • Barrier-free
  • Double security of the support arm lock
  • Only 95 mm swing-in height
  • All essential assemblies are 90% pre-installed
  • High-quality support columns made of special rolled profile
  • Heat-resistant motor made of high-quality aluminum alloy
Availability: Out of stock
Only %1 left
More Information
Delivery Time 5-10 Business days
Shipping Cost 299

Special features of "Berlin"

  • 1A processing quality, with CE certificate for UVV acceptance

  • Production according to ISO 9001

  • Maximal lifting height 1900 mm

  • High-quality and solid construction (weight 710 kg)
  • Optional additional 230 V socket on the switch box

  • Lifting arms with automatic locking and unlocking

  • No drive-over height (0 mm) - barrier-free

  • Synchronization control by wire ropes
  • Powder-coated finish, with a scratch-resistant surface

  • Convenient control box (protection class IP54 and 24 V control voltage)
  • Powerful aluminum electric motor

  • Limit switch for height limitation and automatic safety for safe working
  • Support arm lengths 900 - 1430 mm or 580 - 1140 mm
  • Two-stage, height-adjustable turntable with anti-twist protection, low swiveling height thanks to flat support arms
  • Column covers for comprehensive occupational safety
  • Two powerful hydraulic cylinders

Especially in the commercial professional sector, there are special requirements for car lifts. With the "Berlin" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 4,000 kg. You will soon be able to lift small trucks and caravans without any problems. The length of the double telescopic support arms of our platform is now 900 - 1430 mm or 580 - 1140 mm to cover an even larger range of vehicles (see dimensions in the graphic).

The hydraulic motor of this 2 post lift is made of high-quality industrial aluminum! Cheap cast iron motors are a thing of the past.

In order to keep your new lifting platform reliable in the long term, we have therefore relocated the hydraulic unit and the associated oil tank to the main column head. This protects the important drive machinery from impact and dirt. In addition, this Krömer column lift offers you a 2-way height-adjustable support plate with a sophisticated double thread and overturning protection. From now on, you can also easily raise vehicles with difficult dimensions in just a few simple steps.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 2-post car lift "Fürth" - TP65 has been tested in accordance with the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations.This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! - Unfortunately, most of our competition does not works with a top tier insurance company, whcih displays their value of customer service!



For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel.



* additional hand pump is required to release the lift from the safety catch

More Information
SKU TP65
EAN-Code 0757284116650
Write Your Own Review
You're reviewing:Vehicle 2 Post 4.0 "Berlin" Lift electromagnetic - barrier free
Your Rating

2 post car lift 4.0 "Fürth"
Electric motor 230V or 400V hydraulic unit
German operating instructions and test book for the UVV acceptance in DOWNLOADS
Heavy-duty anchor (12 pieces)
door edge protection
4x height-adjustable carrying plates with double thread
Invoice with VAT shown.

Not included in delivery:
Oil - but can be ordered as an option (capacity: 15 liters)
vehicle
