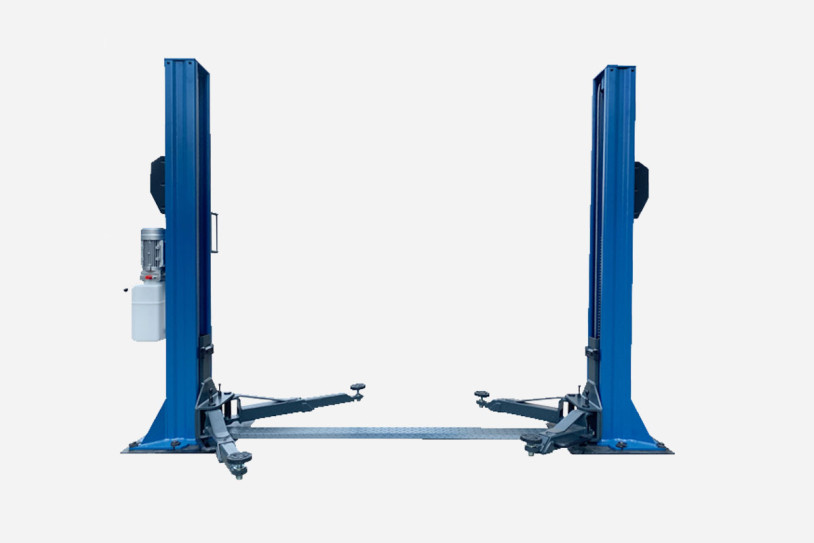

2 Post Lift "Quebec"- dual unlocking

Special features of "Quebec"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

• Maximum lifting height 1600 mm

• High-quality and solid construction (weight 515 kg)

• mechanical safety catches

• high-quality, short columns (2326mm)

• Optional additional 230 V socket on the switch box

• High-quality support columns made of special rolled profile

• Hydraulic unit and oil tank relocated to the main column head

• Stability and security through special rolled profile

• Support plate with refined double thread and over-tightening protection

• Exceptionally low drive-over height (100 mm)

• Synchronization control by wire ropes

• Powder-coated paintwork, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Two-stage, height-adjustable turntable with anti-twist protection, low swiveling height due to flat support arms

• Two powerful hydraulic cylinders

With the "Quebec" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 3,000 kg. Even small trucks as well as caravans can be lifted (see dimensions and graphic). The length of the support arms of our stage is now 620 - 920 mm or 520 - 740 mm.

In order to keep your new 2-post lift reliable over the long term, Krömer has therefore relocated the hydraulic unit and the associated oil tank to the main column head. This protects the important drive machinery from impact and dirt.

The TP10 "Quebec" was manufactured using the highest quality Auropont special steel (Q235) and folded 14 times with the help of a machine from a Trumpf subsidiary. Wobbly and imprecisely fitted support arms or lifting carriages are almost impossible. Our welders almost exclusively use Panasonic® welding units to assemble this model in order to further increase the production quality for you. Panasonic guarantees deep-pored penetration of the steel and joins it precisely, without deformation and without blistering (breakage).

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 2-post car lift "Quebec" - TP10 has been tested and approved in accordance with the Machinery Directive in accordance with Annex IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations.This is how you succeed in the UVV acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! - Sadly this is not the case for the most of our competition, they prefer the cheaper suppliers!

Since we Krömer's Handelsgesellschaft mbH are listed as manufacturers for our platforms, we naturally have a service workshop with a training center for our customers!

So why this attractive price? No visits to trade fairs, no on-site sales network, quantity instead of large margins per stage sold, proven technologies, no experiments. The stability and safety of our stages comes first!

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required).

Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel.

Additional options or accessories in the product images are subject to a charge and are not included in the scope of delivery.
