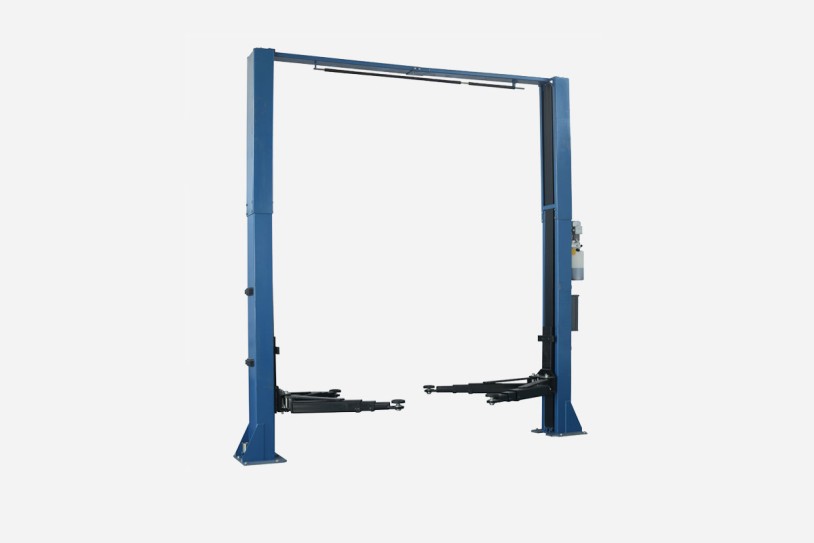

Profi 2 Post Vehicle Lift 5.5h "Leeds" automatic

Special features of "Leeds"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

• Exceptionally low drive-over height (100 mm)

• High-quality and solid construction (weight 1060 kg)

• 4x height-adjustable support plates with double thread included

• Support arm length with 3 levels (940 - 1200 - 1800 mm)

• Optional additional 230 V socket on the switch box

• Symmetrical lifting arms with automatic locking and unlocking

• Synchronization control by wire ropes

• Powder-coated finish, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Powerful aluminum electric motor

• Limit switch for height limitation and automatic safety for safe working

• Two-stage, height-adjustable turntable with anti-twist protection, low swiveling height thanks to flat support arms

• Column covers for comprehensive occupational safety

• Two powerful hydraulic cylinders

With the "Leeds" 2-post lift, Krömer provides you with the perfect companion for hydraulically lifting motor vehicles with a maximum weight of up to 5,500 kg. You will soon be able to lift small trucks and caravans without any problems (see dimensions and graphic).It should be noted that the stage is delivered with 180 cm support arms. With a support arm length of more than 150 cm, the platform can lift a maximum weight of 4,200 kg.

The hydraulic motor of this 2 post lift is made of high-quality industrial aluminum! Cheap cast iron motors are a thing of the past. At Krömer you also get a high-quality, modern and newly designed metal control panel, which is not available anywhere else.

Due to our welder, Panasonic® welding units were mainly used to assemble the TP75 "Leeds". Thus, the manufacturing quality can be increased. Because Panasonic additionally guarantees deep-pored penetration of the steel and joins it together precisely, without deformation and without the formation of bubbles (breakage).

A high bending resistance is particularly important for long support arms, such as the 4x1800mm samples installed here. For this reason, only 1A strength was used for the construction of this model, which guarantees a longer service life even in long-term operation.

In addition, this Krömer car post lift offers you 2-way height-adjustable support plates with sophisticated double thread and overturning protection. You can now easily raise vehicles with difficult dimensions in just a few steps. The noble and high-quality design with durable white sliding blocks and the powder coating round off the Krömer overall package.

The 400V connection is recommended for the TP75 "Leeds" 2-post lift.

With our additional options, this Krömer model can be perfectly adapted to the individual needs of your workshop: For working with vans, buses, jeeps, etc., there are also our 100 mm high Krömer van risers as an additional option, which is subject to a surcharge.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 2-post car lift "Leeds" - TP75 has been tested in accordance with the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products!Our competition on the other hand , mostly do not work with will known insurance companies.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel.

* additional hand pump is required to release the lift from the safety catch

Hydraulic fully automatic 2 post car lift 5.5t "Bonn"
Door edge protection (door stop rubber) on both columns
Electric motor 230V or 400V hydraulic unit
English operating instructions and test book for the APR
Heavy duty anchor (12 pieces)
Invoice with VAT shown.

Not included in delivery:
Oil - but can be ordered as an option (capacity: 15 liters)
220 volt socket, remote control, increases possible
Power cable + plug
vehicle
