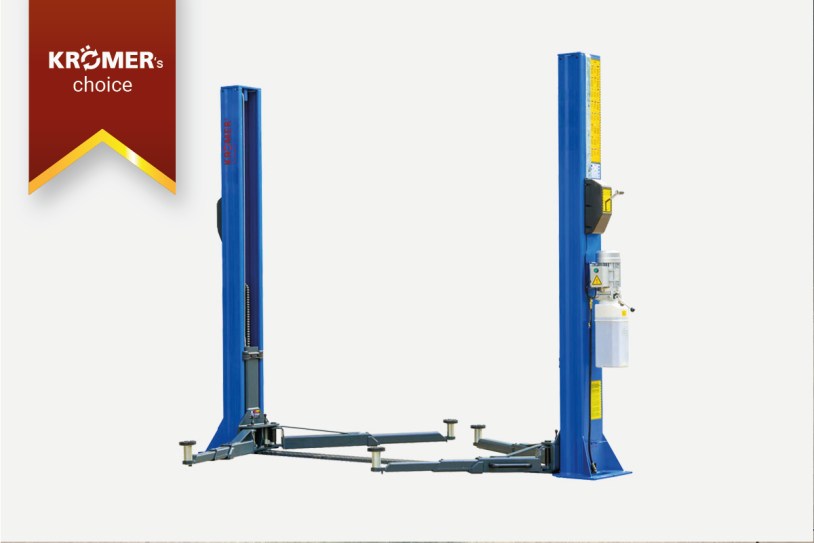

Electrohydraulic 2 Post Lift "Bristol"

Special features of "Bristol"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

• Maximum lifting height 2150 mm

• Exceptionally low clearance (30mm)

• High-quality and solid construction (weight 625 kg)

• Optional additional 230 V socket on the switch box

• high-quality support columns made of special rolled profile

• Synchronization control by wire ropes

• Powder-coated finish, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Powerful aluminum electric motor

• Limit switch for height limitation and automatic safety for safe working

• Two-stage, height-adjustable turntable with anti-twist protection, low swiveling height thanks to flat support arms

• Column covers for comprehensive occupational safety

• Two powerful hydraulic cylinders

Especially in the commercial professional sector, there are special requirements for car lifts. With the "Bristol" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 4,000 kg. Even small trucks as well as caravans can be lifted (see dimensions and graphic). The length of the double telescopic support arms of our platform is now 900 - 1430 mm or 580 - 1140 mm to cover an even larger range of vehicles.

The columns were manufactured using the highest quality Auropont special steel (Q235) and bent 14 times with and with the help of a machine from a Trumpf subsidiary. This guarantees high dimensional accuracy due to low manufacturing tolerances. Wobbly and imprecisely fitted support arms or lifting carriages are almost impossible. Our welders almost exclusively use Panasonic® welding units to assemble this model in order to further increase the production quality for you. Panasonic guarantees deep-pored penetration of the steel and joins it precisely, without deformation and without blistering (breakage).

In addition, this Krömer car post lift offers you 2 height-adjustable support plates with sophisticated double thread and overturning protection. You can now easily raise vehicles with difficult dimensions in just a few steps. The noble and high-quality design with durable white sliding blocks and the powder coating complete the Krömer package.

The cable connections inside the control panel were pressed by machine. In addition, only branded electrical components were installed.

With our additional options, this Krömer model can be perfectly adapted to the individual needs of your workshop: For working with vans, buses, jeeps, etc., there are also our 100 mm high Krömer van risers as an additional option, which is subject to a surcharge.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 2-post car lift "Bristol" - TP19 has been tested in accordance with the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you. Bedienen Sie sich einfach in unserem Shop.

We have Allianz product liability insurance and business liability insurance on our products!

So why this attractive price? No visits to trade fairs, no on-site sales network, quantity instead of large margins per stage sold, proven technologies, no experiments. The stability and safety of our platforms comes first!

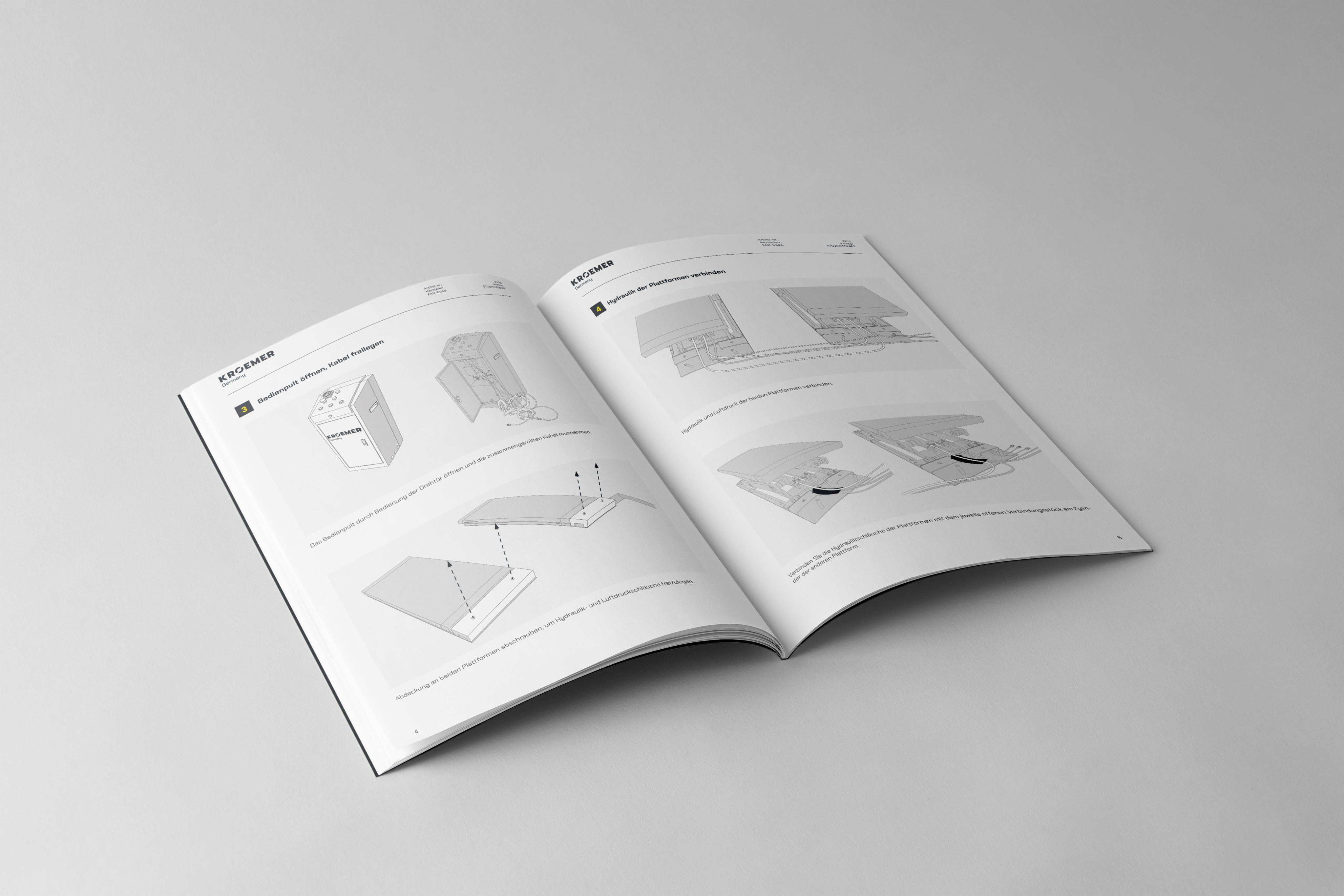

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel.

* additional hand pump is required to release the lift from the safety catch
