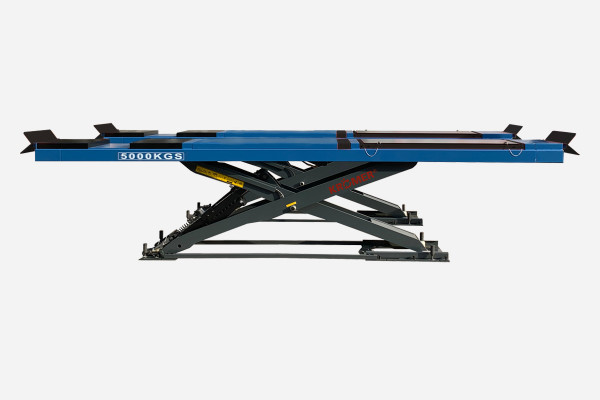

Full Rise Scissor Lift "Denver"

--- IMPORTANT NOTICE ---  When unloading, the customer must have a forklift available

• Loading fee for pickup: 200€

Special Features of XX82 "Denver"

• CE stop and signal tone when lowering (foot protection), acoustic lowering protection, acoustic warning device
• Anti-trap protection according to Euro standard (EN)
• Hydraulic synchronization control / synchronization regulation (cylinder sequence principle)
• Automatic safety locking and unlocking - compressed air of 10 bar is required!
• Emergency lowering system in case of power failure
• Roadway with roll-off protection
• Hydraulic check valves
• overload valve
• Lowering safety devices
• Automatically locking safety latches
• Load capacity: up to 5.0 t
• 2.2 kW motor power
• 16 MPa hydraulic pressure
• Zinc plated bolts and screws
• Wheel-free jack with lockable ramps for a longer pickup area
• hose rupture protection
• Roadway with ramps and roll-off protection
• Hose packages more than 3000 mm
• 1A processing quality with CE certificate for APR
• Production according to ISO 9001
• Almost all swivel joints and bearing parts with grease nipples, therefore low-wear
• High-quality, durable electronics with plug-in system, no printed circuit boards!
• Two-wall air cylinder for less wear
• High-quality powder coating with powder coating from DUPONT, bolts and screws are hot-dip galvanized
• High quality and solid construction

Are you looking for a drive-on scissor lift for underfloor body works? No need to anymore! With a maximum lifting height of gigantic 2.05m (without wheel-free jack) and a lifting time of a rapid 75 seconds, a scissor lift from Krömer is simply a must for almost all maintenance work on tires and lower body parts. This Krömer professional drive-on scissor lift is perfectly equipped for underfloor installation. Of course, a ground-level installation without digging is also possible as an alternative. With a load capacity of 4,000 kg, our XX82 "Denver" model carries everything.

Die Profi-Auffahrhebebühne XX82 verfügt ein Radfreiheber und beträgt eine Hubhöhe von 205 cm. Die Ladebahn der XX82 "Weinheim" ist zusätzlich mit LED Licht ausgestattet.

By purchasing drive-on ramps, the XX82 "Denver" double lifting platform can optionally also be used as a transfer platform.

In addition, this Krömer scissor lift is also perfect as a receiving platform. With the associated LED light, you always have an overview.

Working with your new XX81 double lift should remain stress-free for you. Ascending and descending the scissors is easy with push button controls on the control panel!

Does your car have a longer wheelbase? No problem for Kromer! Due to its particularly large drive-on platforms with a huge length of 4.50 m, the XX81 can lift any body, no matter how huge.

The areas of application of our lifting platform are very diverse due to the wide range of vehicle models and their mounting points.We would like to point out that the application pictograms given are only and exclusively intended as a guide and do NOT reflect the actual absorption capacity of our products. KHG Krömer's Handelsgesellschaft mbH assumes no liability that all models of the corresponding vehicle class can be accommodated.

The Krömer full rise scissor lift is very well equipped for wheel alignment. The particularly long wheel-free jack (18200 mm) makes work on the wheel axles easier. Of course, this stage also has a detachable ratchet system as well as rear swing plates and recesses for turntables. This allows you to work quickly and efficiently. Cross-adjustable, lockable sliding panels complete the Krömer package.

Paint scratches and poor processing are now at an end! Because your Krömer scissor lifts are coated with excellently finished, powder-coated DUPONT® paint.

The "Denver" - XX82 scissor lift has been tested and approved in accordance with the Machinery Directive in accordance with Annex IV and is therefore equipped with a CE certification from one of the leading testing agencies that deals exclusively with lifts.

In addition to the usual CE regulations, both the platform and the control panel were tested separately for functionality before they were sold.

Notice!

In addition to a compressor (at least 10 bar), you also need hydraulic oil* (25 liters required, observe the operating instructions) for the first start-up. A forklift should also be available for delivery.
