3D wheel alignment Kroemer 903D
In stock
- Delivery time:
- Shipping cost:
- 3D aligner for automatic dynamic scanning with an HD camera
- fully automatic target tracking
- advanced, state-of-the-art computer-aided 3D wheel alignment from Kroemer
- requires internet access to update the database
(can only be bought together with a car-lift!)
Description

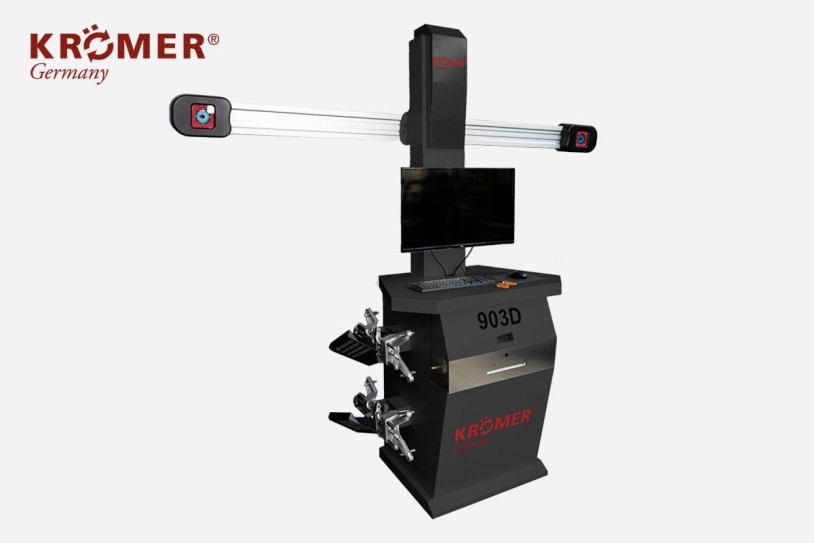

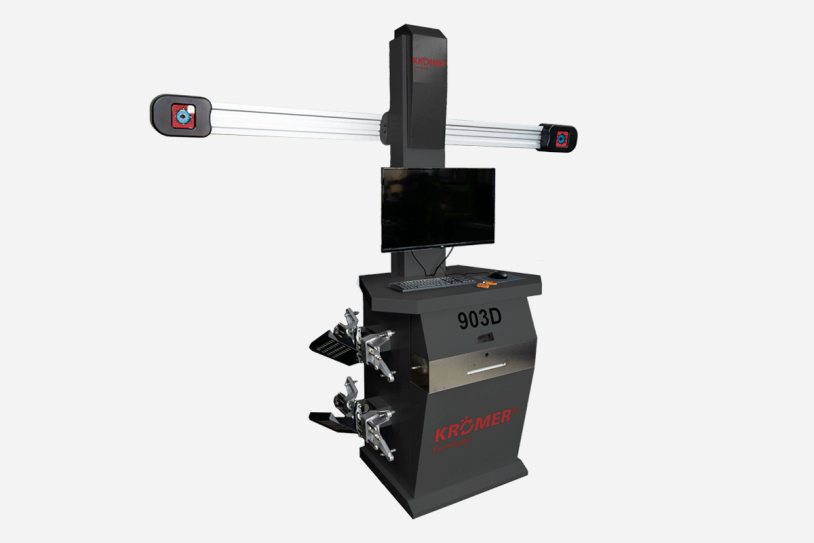

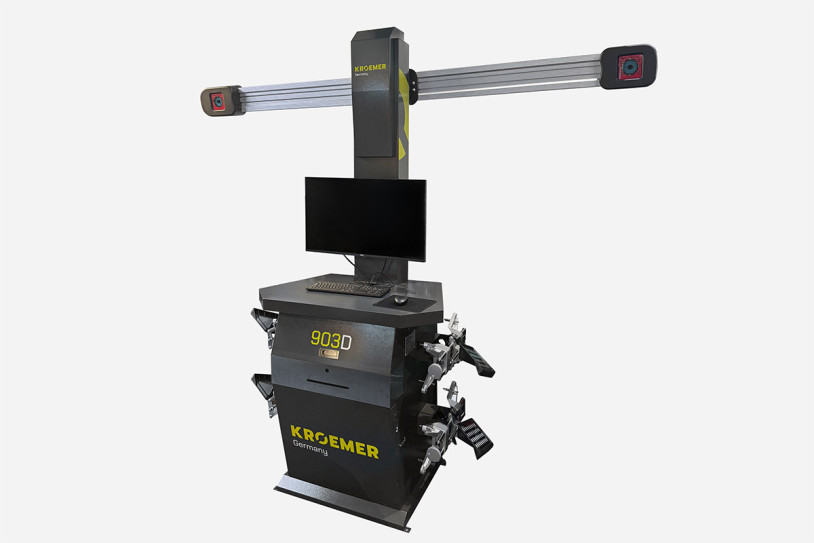

Kroemer 903D – 3D Wheel Alignment System with QuickCheck
The Kroemer 903D is a 3D wheel alignment system designed for automotive workshops and tyre service centres. Two industrial 5-megapixel cameras with automatic target tracking measure wheel geometry and display parameters such as toe, camber and caster on the 32-inch screen.
The QuickCheck initial inspection can be carried out directly on a suitable, level workshop floor – without a vehicle lift. This allows potential wheel alignment deviations to be identified during vehicle reception.
PRTC technology allows measurement data to be collected without the usual forward and backward rolling of the vehicle for compensation. A vehicle database containing reference values supports the assessment.
The system supports 13 to 24-inch wheel rims and is supplied with a computer, monitor, printer, four targets, wheel clamps and additional measuring accessories.
Features and functions
-
Automatic target tracking, camera beam length: 2,782 mm
-
Wheel alignment with or without moving the vehicle
-
PRTC technology: measurement data without pushing, rolling, a measuring tower or compensation
-
Two industrial 5-megapixel cameras; independent third-party testing supported
-
Display of front and rear wheel alignment parameters, including toe, camber and caster
-
Measurement and adjustment functions for overall vehicle geometry
-
Front axle alignment function
-
3D animations showing where and how alignment angles should be adjusted
-
Four interchangeable measuring targets
-
Calibration data stored in the cameras
-
Software customisation available if required
-
Vehicle database sourced from Autodata
-
Positioning function to help centre the front wheels on the turntables
Technical equipment
-
Operating system: Windows 10, pre-installed
-
Cameras: 2 × 5 megapixels
-
Printer: 1 unit
-
Monitor: 32 inches
Measurement specifications
| Parameter | Accuracy | Resolution | Measurement range |
|---|---|---|---|
| KPI / Steering Axis Inclination | ±0.05° | 0.01° | ±20° |
| Caster | ±0.05° | 0.01° | ±20° |
| Camber | ±0.03° | 0.01° | ±10° |
| Toe | ±0.03° | 0.01° | ±10° |
| Thrust angle | ±0.03° | 0.01° | ±10° |
| Track width | ±2 mm | 0.1 mm | 1,200–2,200 mm |
| Wheelbase | ±2 mm | 0.1 mm | 1,600–4,200 mm |
| Wheel setback | ±2 mm | 0.1 mm | ±200 mm |
| Lateral offset | ±2 mm | 0.1 mm | ±200 mm |
| Longitudinal offset | ±2 mm | 0.1 mm | ±200 mm |
| Rim size | – | – | 13–24 inches |
Technical Data
Technical Data
| SKU | 903D |
|---|---|
| EAN-Code | 0703441952609 |
| Delivery Time | 10 business days |
| Shipping costs | 499 £ |
| Suitable for express delivery | No |
| Weight | 181 kg |
| Höhe | 1090 mm |
| DIN EN-Normen | EN 60204-1:2018, EN ISO 12100:2010, EN ISO13857:2008, EN ISO13849-1:2008 |
Delivery Scope
Delivery Scope
Not Eligible for Express Shipping
Scope of Delivery:
- Computer: 1 piece
- Target plates: Durable / 4 pieces (Size: 324.2 x 175 x 62.6 mm, net weight: 1.32 kg per piece, pin diameter: 22 mm)
- Brake pedal depressor and steering wheel holder: 1 piece each
- Clamps: 4 pieces (13"–24")
- Turntables: 2 pieces (Diameter: 340 mm, thickness: 49 mm)
- Wheel chocks: 2 pieces
Not included in delivery:
- Tires
Despite the high-quality paint finish, scratches may occur on the machine due to logistics, quality control, and assembly.
Below the description you will find the accessories section with a wide range of products and services for the 903D.
