Floor Reinforcement Plate Set from 4.2 t – TP006

TP006 Floor Reinforcement Plate Set for 2-Post Lifts from 4.2 t – 2 Pieces

The TP006 floor reinforcement plate set has been developed for the Kroemer TP52 and TP78 2-post lifts. The solid steel plates increase the contact area beneath both columns and support a more even distribution of the forces acting on a suitable concrete floor.

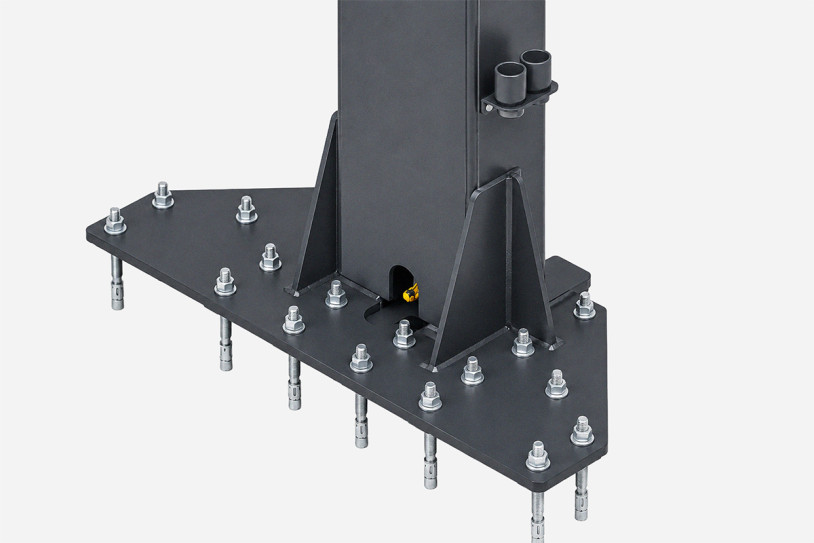

When lifting and lowering heavy vehicles, high point loads occur around the column fixings. The reinforcement plates are positioned beneath the columns and professionally secured to both the lift and the floor. This allows the loads to be transferred over a larger area and provides additional support for the lift installation.

The set consists of two floor reinforcement plates, providing one plate for the left column and one for the right column. The robust construction is suitable for permanent use in workshops, garages and commercial installation areas where additional stability is required when installing heavy-duty 2-post lifts.

Product Features

Complete set of 2 floor reinforcement plates
For Kroemer 2-post lifts from 4.2 t
Suitable for TP52 and TP78
Solid and durable steel construction
Increases the contact area beneath the columns
Supports a wider distribution of loads
One plate for the left and one for the right column
Suitable for workshops, garages and professional installation areas

Technical Data

Item number: TP006
EAN: 0703441942440
Version: Set
Quantity: 2 pieces
Suitable for: TP52 and TP78

Important Information

Floor reinforcement plates do not replace a professionally constructed foundation or an assessment of the existing floor. Before installation, the load-bearing capacity, concrete quality and foundation thickness must be checked in accordance with the technical specifications of the relevant lift. Installation may only be carried out on a suitable concrete floor and by qualified personnel.
