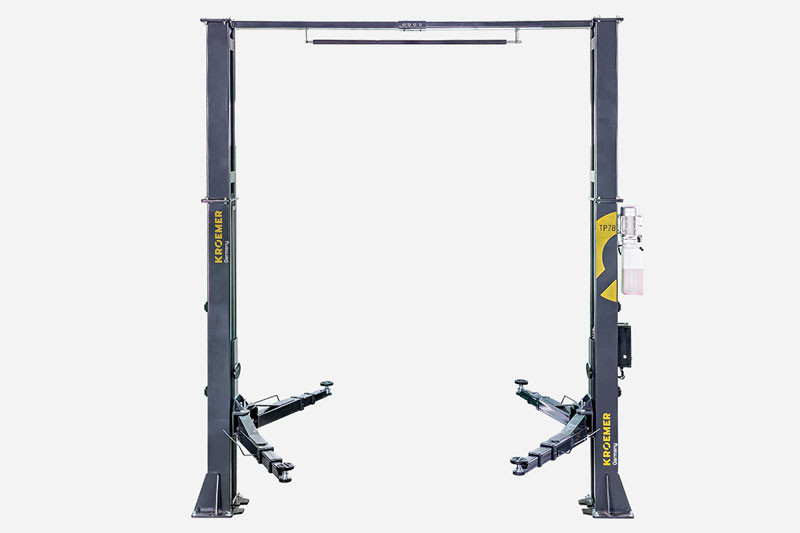

Barrier-free Kroemer TP78 2-post lift

Barrier-Free Kroemer TP78 2-Post Lift – 6,000 kg Lifting Capacity, 1,810 mm Lifting Height and Ideal for Cars, SUVs & Vans

The new Kroemer TP78 professional 2-post lift offers an impressive lifting capacity of 6,000 kg and is suitable for a wide range of appropriate motor vehicles – from passenger cars and SUVs to long-wheelbase vans and motorhomes. Thanks to its barrier-free design, 3-stage telescopic lifting arms and particularly low minimum arm height of just 100 mm, even lowered vehicles can be accommodated flexibly. The robust construction is complemented by a lightweight and corrosion-resistant 3 kW aluminium motor.

• Lifting capacity: 6,000 kg
• Maximum lifting height: 1,810 mm

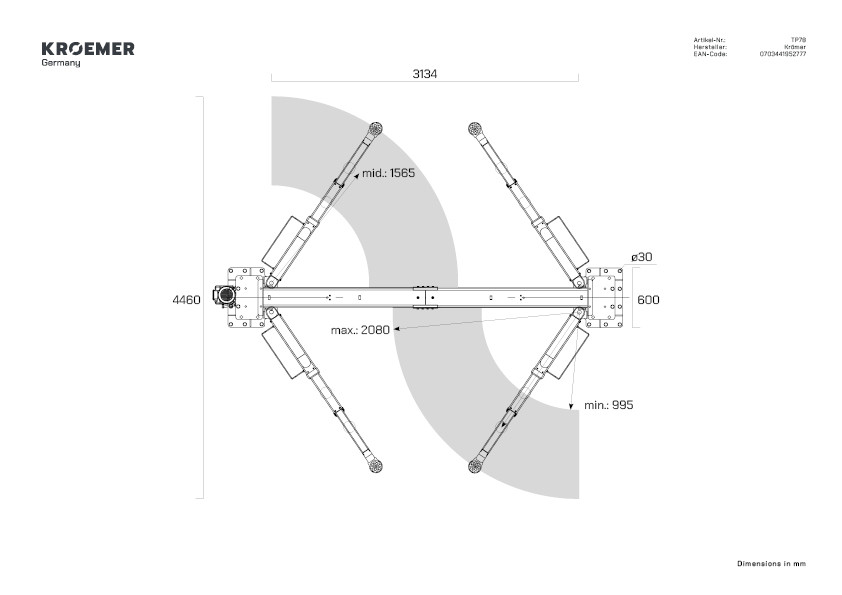

• Maximum lifting arm length: 2,080 mm
• 3-stage telescopic lifting arms
• Minimum arm height: 100 mm

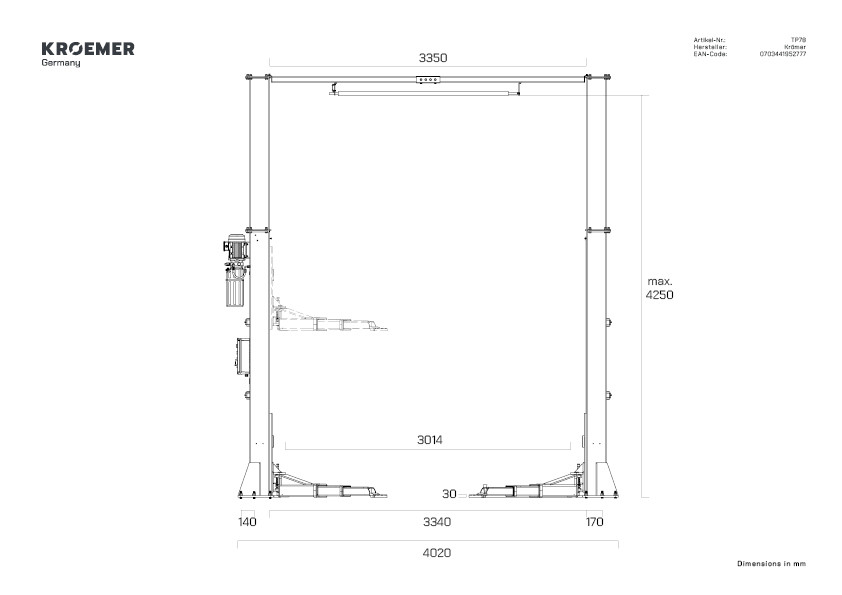

• Total width: 4,020 mm

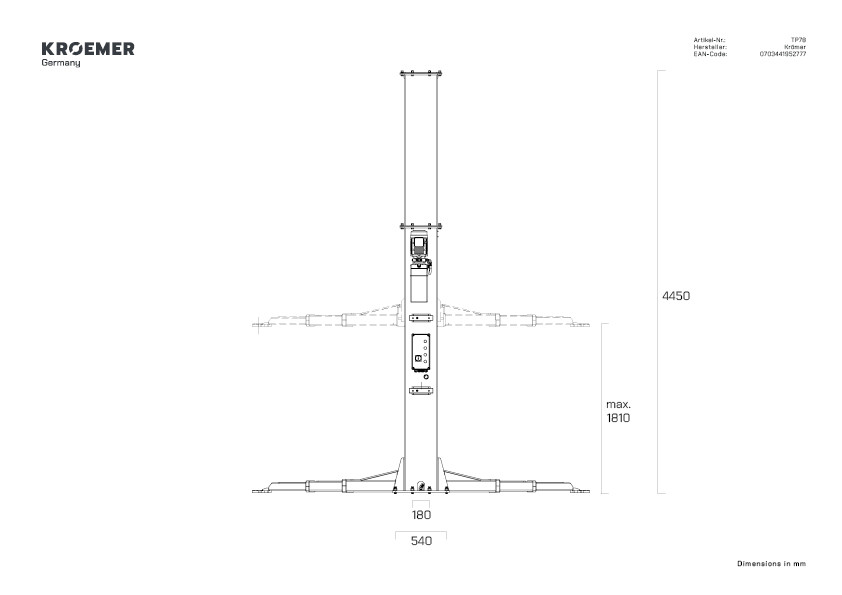

• Total height: 4,450 mm
• Total weight: 1,020 kg
• Noise level: 75 dB
• 3 kW aluminium motor
• Manufactured in accordance with ISO 9001
• 1A build quality

Powerful Technology for Professional Use

The height-adjustable rotating lifting pads with anti-twist protection, robust lifting-arm locking system and high-quality components such as zinc-plated bolts, brass bushes and powder-coated columns ensure a durable and robust construction.

Thanks to the integrated emergency lowering function, the lift can be lowered in a controlled manner even in the event of a power failure. An additional upper limit switch provides protection for vehicles that are too high and contributes to safe operation.

The upper section of each column is securely bolted in place, providing additional stability and safety for the entire structure.

Flexible for Different Motor Vehicles

The TP78 is particularly suitable for:

• Passenger cars and compact cars
• SUVs
• Long-wheelbase vans, e.g. Mercedes-Benz Sprinter, VW Crafter or Fiat Ducato
• Motorhomes
• Light commercial vehicles

The long telescopic lifting arms allow the vehicle pick-up points to be adapted flexibly to different wheelbases and lifting points.

Important Notice Regarding Permitted Use

Approved only for suitable motor vehicles.

Not permitted for construction machinery, mini excavators, excavators, forklifts, industrial trucks, agricultural machinery or comparable machines and equipment.

Before lifting, it must always be checked that the vehicle weight, dimensions and designated lifting points comply with the technical specifications of the lift.

Important Unloading Information

A suitable forklift must be provided by the customer for unloading.

Not eligible for express shipping

Scope of delivery:

• Barrier-free Kroemer TP78 2-post vehicle lift
• 230 V or 400 V electric motor with hydraulic unit
• Lifting arms
• Door edge protection (rubber door stops) on both columns
• Column covers
• German operating instructions and inspection logbook for the UVV inspection in the DOWNLOADS section
• Invoice with VAT shown separately

Not included in the scope of delivery:

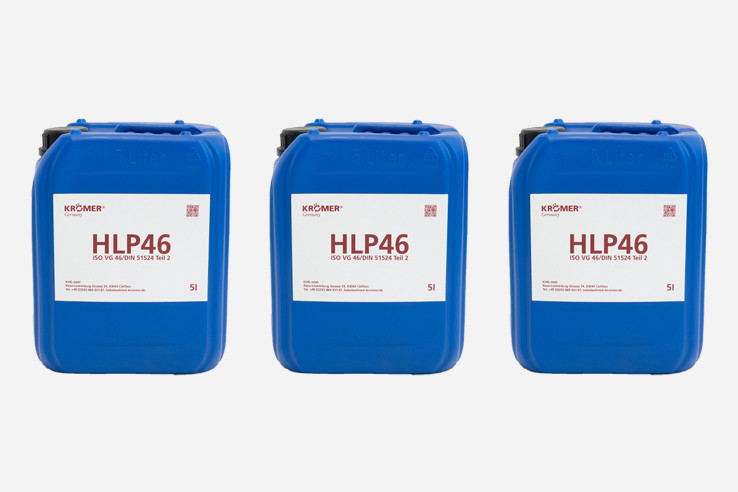

• Oil – can be ordered optionally (filling quantity: 15 litres)
• Lifting arms
• Heavy-duty anchors: Suitable and approved anchoring systems must be selected on site according to the foundation design, concrete quality, component thickness, edge and centre distances, and the loads involved.
• Vehicle

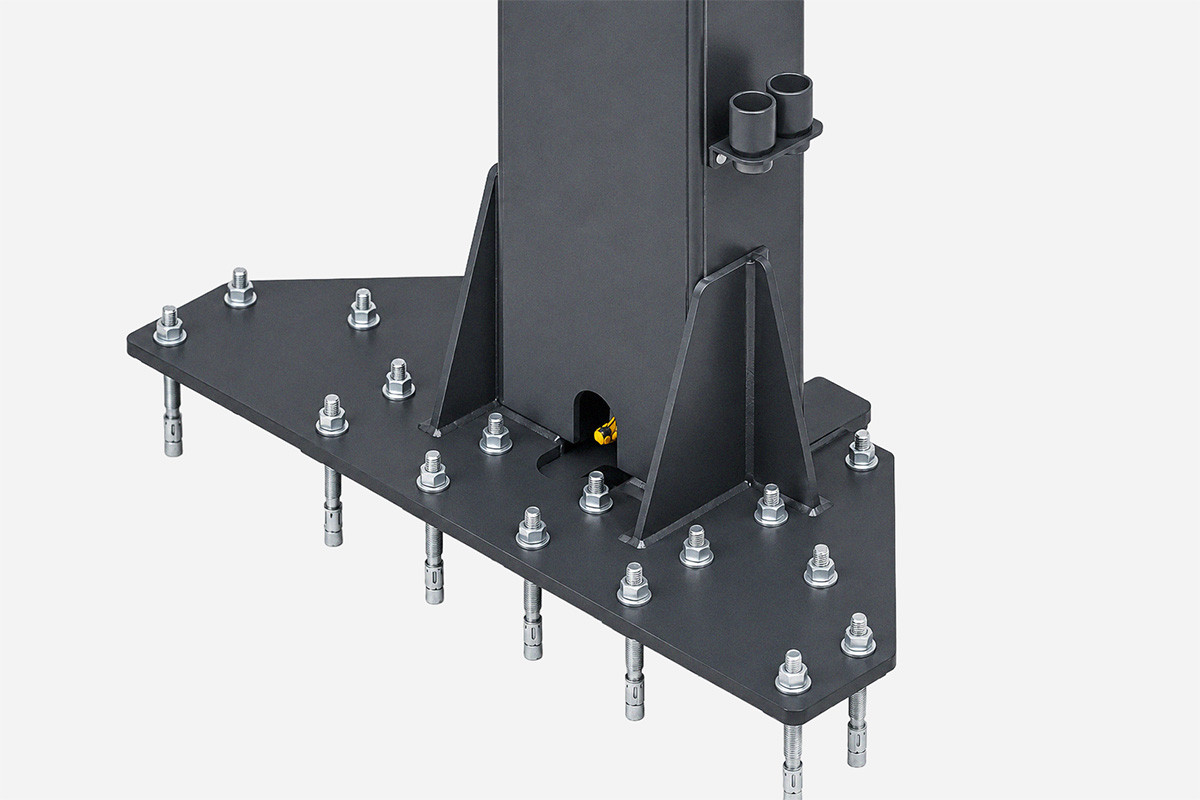

• Floor reinforcement plates – TP004
• 220 V socket, remote control and height extensions optionally available

Below the description, you will find the accessories section with a wide range of products and services for the TP78.

Information regarding unloading

Despite careful painting, scratches may occur during transport, inspection and installation.
