Secondary cylinder – XX50 double scissor lift – XX513

Secondary cylinder for Kroemer XX50 double scissor lift from model year 2022 – XX513

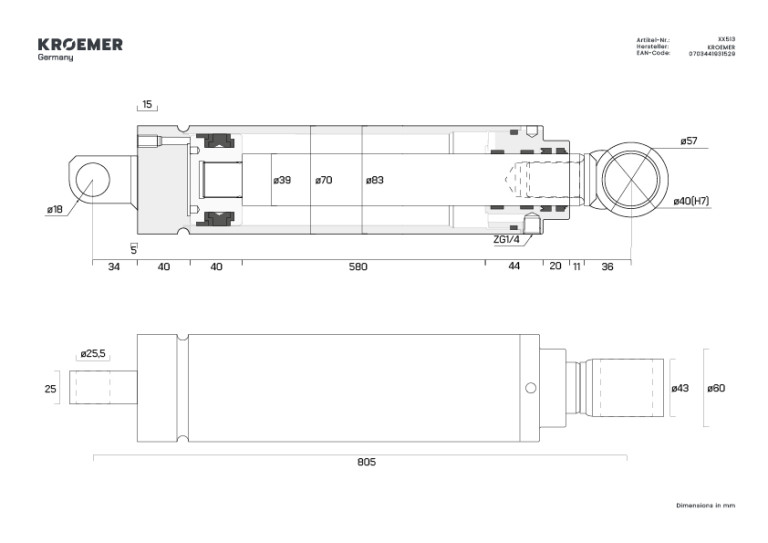

The XX513 secondary cylinder is a suitable spare part for the Kroemer XX50 double scissor lift from model year 2022. It is part of the hydraulic lifting system and is located underneath the secondary platform of the lift.

Together with the main cylinder, the secondary cylinder supports the controlled raising and lowering of the platforms. Hydraulic pressure transfers the required force to the scissor mechanism, enabling the lift to be raised and lowered evenly.

During daily workshop use, the hydraulic cylinder is exposed to high hydraulic and mechanical loads. Over time, seals may wear, leaks may occur or the cylinder may suffer mechanical damage. In such cases, the affected secondary cylinder can be replaced specifically with the XX513.

The replacement hydraulic cylinder is designed for the hydraulic system of the corresponding Kroemer XX50 and is suitable for professional repair and maintenance of the lift.

Note

Before ordering, please check the spare part number, model and year of manufacture of your lift to ensure compatibility.

For XX50 models from model year 2022, the XX513 is used as the secondary cylinder. The corresponding main cylinder is available separately.
