Plattformen, beide Auffahrrampen und Unterplatten verzinkt

Galvanised Full-rise scissor lift - KROEMER XX54

Doppelscherenhebebühne XX63 in der höchsten Hubhöhe

Full-rise scissor lift, Underfloor - KROEMER XX63

Full Rise Scissor Lift, Overfloor - KROEMER XX50

As low as £2,999.00
  • New feature: No compressed air required
  • Redundant hydraulic system
  • Load capacity (static): 3,000 kg
  • 1,900 mm lifting height (including rubber blocks)
  • Acoustic warning device (foot protection)
  • Integrated deflection aid
  • No additional lifting during lowering
Availability: Out of stock
Only %1 left
More Information
Delivery Time 20 Business days
Shipping costs 599 £

Special features of the "Leipzig"

  • fully automatic lifting and lowering per button click
  • 1A proccesing quality with the CE-certificate for the APR acceptance in our download section
  • Production according to ISO 9001
  • Double line system for the symmetrical disturbution of the pressure
  • Space saving design
  • minimal floor requirement only 200 mm
  • Powder coated paintwork with scratch-resistant surface treatment
  • Powerful electric motor in hydraulic oil with IP 54 control unit
  • lowering safety device
  • Low-wear bearing of the scissor joints
  • Mechanical synchronization control
  • Lockable/lockable ramps, resilient up to 2 tons per ramp (4x drive-on ramps)
  • two powerful, hard-chromed hydraulic cylinders
  • foot protection
  • electronic lifiting limitation through limit switch
  • absolute space nfreedom due to lack of disturbing pillars
  • Supply of spare parts for a long time period.
  • Multiple safety devices through hose rupture protection and overload valve


The full length scissor lift XX50 "Lisbon" has lifting capacity from 3000kg (dynamic) to 4500 kg (static). The maximal lifting height is 186 cm which makes the work easier and Kromer offers also steering aid for the low vehicles.

For maintenance and repair work on tires and lower body parts of the vehicle, a full rise scissor lift from Krömer is the ideal equipment for mechanics in the automotive sector.

The built-in deflection aid allows to lift vehicles directly from the position zero. Due to the technical construction of full rise scissor lift, it requires a free lift of approx. 10 cm so that it can develop its power. Normally scissor lift moves few centimeters up before lowering. If the ceiling of the building is low, this can couse possible damages to the vehicle. it will NOT be the case with the scissor lift "Lisbon". Because the platform is lowered immediately with the help of the noiseless safety catches.

Does your car have a longer wheelbase? No problem with Kromer! Thanks to its 4x extendable, extra large ramps, your new professional scissor lift is extremely flexible. With it, even the Porsche of your most demanding customer will be raised in a matter of seconds.

Our engineers have designed this professional scissor lift especially for long running times. One of the most common sources of failure in scissor lifts is corroded air cylinders. Krömer products therefore have an oiler as standard, which is used to remove water from the compressed air circuit. At Krömer you can get our special double-wall compressed air cylinder as an option. This lowers the platform's susceptibility to errors and at the same time reduces the maintenance intensity.

Low-noise operation also due to the motor! Since the newly designed engine is completely immersed in oil, it is extremely quiet! Easy on the ears with daily use.

Ideal working conditions for a professional vehicle operstions.

We have Allianz product liability insurance and business liability insurance on our products! - Unfortunately, this is not the case for our competiton, most them not having an agreement with a well-known insurance company hence demonstrating they attitude toward the customers.





Tip!

To use the platform you need hydraulic oil* (20 liters required, follow the operating instructions).

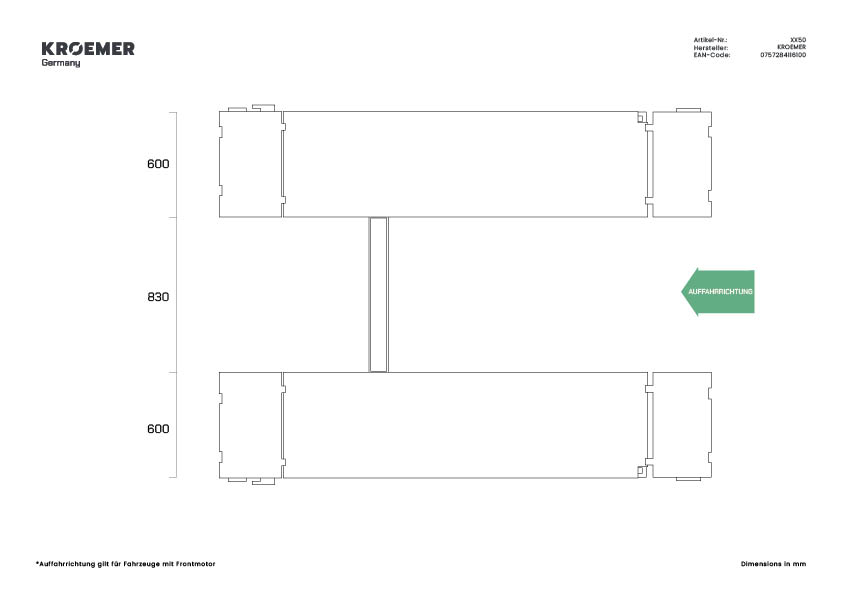

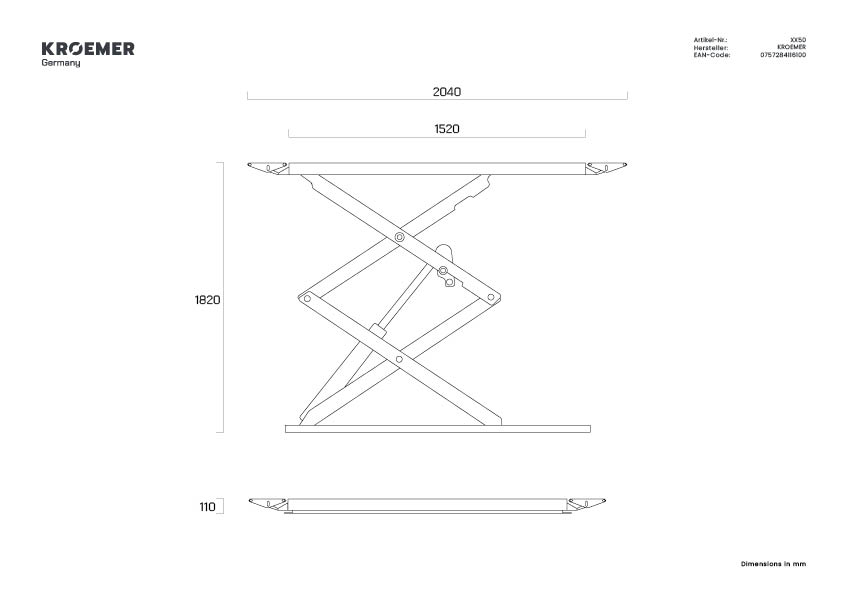

For trouble-free operation of the lift and to avoid vehicle/ceiling damage, a room height of at least 3.20 m or 3.50 m for short-stroke scissor lifts and 4.20 m or 4.50 m for double scissor lifts (depending on the vehicle and lifting height of the lift) be given. The dimensions of the lifting platform can be found in the technical drawing.
  • Fully automatic lifting and lowering at the touch of a button
  • First-class workmanship with CE certificate for UVV approval
  • Manufactured in accordance with ISO 9001
  • Compact design with low space requirements
  • Powder-coated finish with scratch-resistant surface treatment
  • Powerful electric motor immersed in hydraulic oil with IP54 control unit
  • Two robust, hard chrome-plated hydraulic cylinders
  • Foot protection system (anti-pinch)
  • Full door clearance for easy vehicle access
  • Long-term spare parts supply guaranteed
  • Multiple safety features including hose rupture protection and overload valve

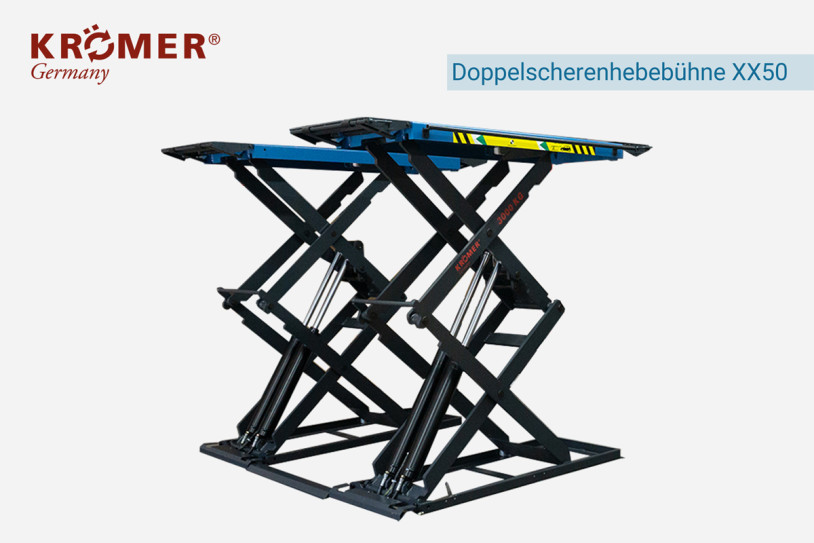

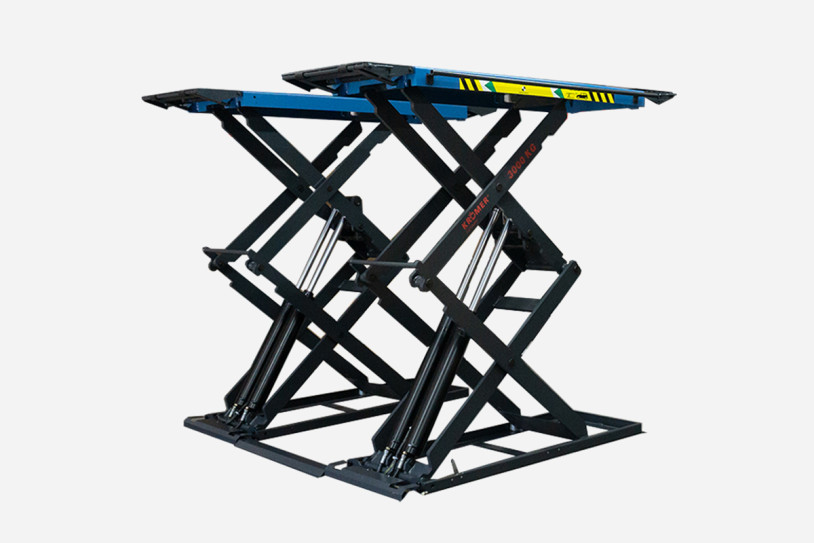

With a flexible lifting height of up to 1.85 m and a static lifting capacity of up to 3,000 kg, the XX50 full-rise scissor lift is ideal for repairs, tyre and oil changes, and engine work. Kroemer’s advanced hydraulic technology ensures perfect synchronisation of the four hydraulic cylinders, powered efficiently and quietly through two independent, redundant hydraulic circuits. This redundant hydraulic system guarantees exceptionally reliable and robust operation. The Kroemer scissor lift is the perfect choice for professionals in the automotive trade, offering outstanding performance for maintenance and repair work on tyres and lower vehicle components.

The flexible installation width and the adjustable distance between the control unit and the lifting platform make the XX50 full-rise scissor lift a versatile asset for any automotive workshop. The control panel features a main switch and protected push buttons, with all lifting and lowering functions clearly labelled for intuitive operation.

The drive-on ramps can be conveniently locked and unlocked at the touch of a button, and the lifting platforms can be folded up when not in use.

With these practical features, the XX50 full-rise scissor lift offers optimal working conditions for any professional automotive business.

More Information
SKU XX50
EAN-Code 0757284116100
Write Your Own Review
You're reviewing:Full Rise Scissor Lift, Overfloor - KROEMER XX50
Your Rating

1 Full-Rise Scissor Lift XX50
Electric motor 230V or 400V hydraulic unit
Heavy-duty anchor
English operating manual and inspection log for UVV approval available for download
Invoice with VAT shown
Includes rubber blocks X167

Not included in delivery:
Hydraulic oil – can be ordered as an option
Power plug – can be ordered as an option
Vehicle
