Production according to ISO 9001
Maximum lifting height is 1,200 mm
Grease nipples on almost all joints
Low requirements for the installation area:
Floor requirement only 150mm of good quality concrete
at least C20 / 25 DIN1045: 2001-D7 (armored)
Safety locking system by pneumatically unlockable
mechanical safety catch against unintentional
lowering the lift
Acoustic signal for the last third of the lowering process,
Signal tone and CE stop when lowering as crush protection
in the foot area (foot trap protection)
Dead man's switch (24V-Low voltage)
Automatic unlocking of the security system
Automatically engaging safety latches
Quality and solid construction
Powder layered paint with scratch insensitive surface treatment
Powerfull electrical engine in hydraulic oil with IP 54 control unit
Low-wear mounting of the scissor joints
Mechanical synchronization control
Inclusive deflection aid ( for low/ loered autos)
The scissor lift LK20 "Rome" is the perfect scissor lift for every car person out there. This lift will be perfect completion of your garage/ workshop. The mid-rise scissor lift can be used for all maintenance work on tires and lower body parts.
Air compressor is not required to operate this Krömer scissor lift! Thanks to Krömer, annoying compressor noises and its expensive acquisition costs is history.
Our Krömer lift has a maximum load capacity of 3,000 kg and it allows you to freely move it around the garage because of the top notch chassis. Are you suffering from lack of space in your garage? No problem, you can pile your LK20 mid-rise scissor lift in any free corner of the garage using a mobile kit (not included). With the help of the reinforced intermediate rail and the extra large work surface of 1700 x 246 mm, your new Krömer scissor lift is therefore perfect for lifting small vehicles of all kinds.
The LK20 "Rome" is equipped with a special anti-scratch chassis made of resilient plastic. This prevents sudden, unesthetic scratches on the workshop floor. As the beholder/user this allows you to to set your lift in motion without any effort.

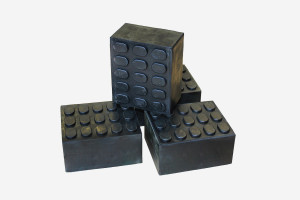

No matter what you are planning, this Kromer scissor lift fits perfectly into your workshop configuration. With the supplied rubbers , this power pack of lift can easily reach a maximum lift height of 1.20 m within a rapid lift time of approx. 20 seconds, and that directly from the position zero.
Platforms are the parts that are dealing with the most of the weight. For this very reason, we at Krömer have enclosed both the electric motor and the hydraulic pump in a durable, modern aluminum housing. This is not only more stable, but also maintains a contant temperature at the motor and thus extends the life expectancy of the lift. We guarantee quality not plastic!
Please note that this lift is not suitable for lifting vehicles with an extended wheelbase such as T6, Vito, Viano, V-Class or larger. Do you often work with these vehicles? Then we recommend a look at our 3,000kg model "Brighton" X40.
Are you a painter and need easy access to the sills of a vehicle? Then you should get it here! The ground clearance of the car is more important to you and you also want to increase vans? Then it is worth taking a look at our 3,000kg scissor lift, which we offer you for only a small surcharge.
SKU | LK20 |
---|---|
EAN-Code | 0721762577899 |
No. | File | Url | Description |
---|---|---|---|
1) | manuale_di_utilizzo_lk20.pdf | manuale-sollevatore-a-forbice-lk20.pdf | Manuale |
