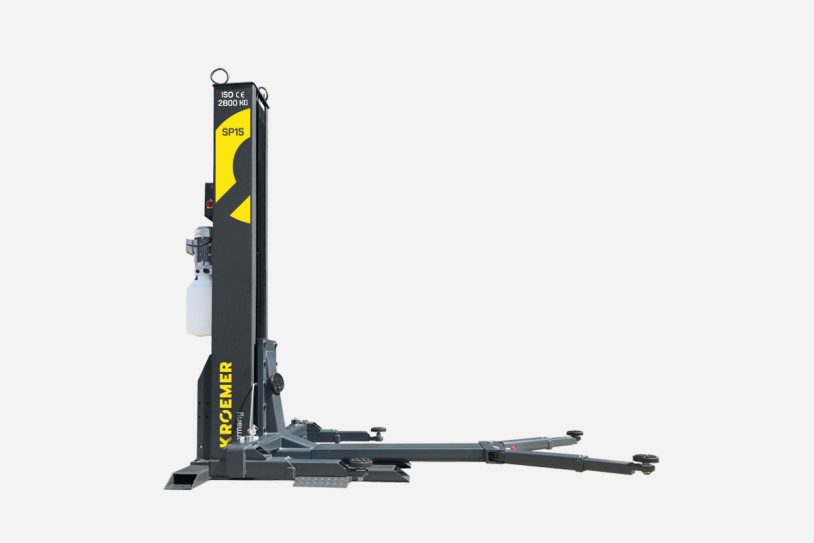

Single post lift Automatic Kroemer SP15

Kroemer SP15 1-Post Lift – 2,800 kg Lifting Capacity, 1,900 mm Lifting Height & Particularly Space-Saving Vehicle Support

The Kroemer SP15 1-post lift is a robust, fixed solution for workshops and garages looking for space-saving vehicle support combined with a high lifting capacity. With a 2,800 kg lifting capacity, a 1,900 mm lifting height and a low drive-over height of just 105 mm, this semi-automatic lift is suitable for a wide range of cars and SUVs. Its solid floor-anchored construction provides a stable platform and allows comfortable access around the raised vehicle.

Special features of single post lift SP15

• 1A processing quality with CE certificate for APR

• Production according to ISO 9001

• lifting height of 1,900 mm

• Grease nipples on almost all joints

• Safety locking system by pneumatically unlockable
  mechanical safety catch against unintentional
  lowering

• Acoustic signal at the last third of the lowering process,
  Signal tone and CE stop when lowering to prevent crushing
  in the foot area (foot trap protection)

• Dead Man's switch (24V low voltage)

• Automatic unlocking of the security system

• Automatically locking safety latches

• Exceptionally low drive-over height (105 mm)

• High quality and solid construction

• Powder coated paintwork with
  scratch-resistant surface treatment

• Powerful aluminum electric motor
  with IP 54 control unit
  + Aluminum hydraulic motor

• Emergency lowering system in case of power failure

• lowering safety device

• Low-wear bearing of the scissor joints

• Mechanical synchronization control

--- IMPORTANT NOTE --- When unloading, the customer must have a forklift or pallet truck available

This fully automatic and mobile column lift SP15 has an incredible load capacity of 2,800 kg and weight of 983 kg. Thus, the column lift is able to lift a Mercedes GSL smoothly.

The special feature of the SP15 is its particular stability. Because the single-post lift is firmly anchored in the ground thanks to the anchor bolts and thus guarantees stability and safety. The foundation plan can be of great help here (can be found in Downloads).

The post lift was manufactured using computer-aided CNC milling. By using the latest control technology, workpieces can be manufactured with maximum precision and accuracy of fit, which is also reflected in the optimized safety and the low price of this model at the same time.

Lack scratches are removed with the help of a powder-coated paint on a scissor lift. The noble and high-quality design with the powder coating rounds off the overall Kroemer package.

Of course, this model also comes with the comprehensive Kroemer guarantee, because it was manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR with distinction. Convince yourself!

If something should stop working, we always have the right spare part ready for you. Simply help yourself in our shop or give us a call.

All of our products have Allianz product liability insurance and business liability insurance!

So why this attractive price? No visits to trade fairs, no on-site sales network, quantity instead of large margins per stage sold, proven technologies, no experiments. The stability and safety of our platforms comes first!

The concrete foundation plan, which can be found in DOWNLOADS, is also suitable for the SP15.

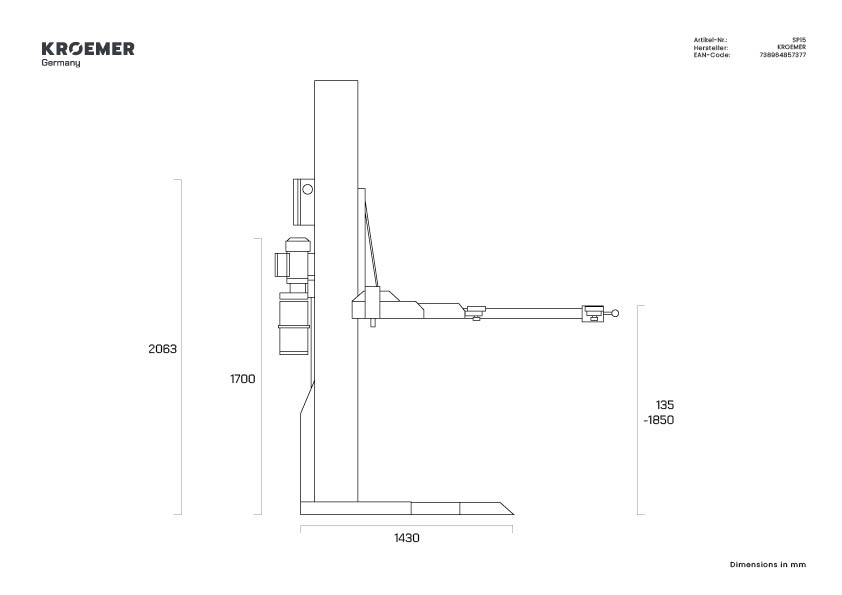

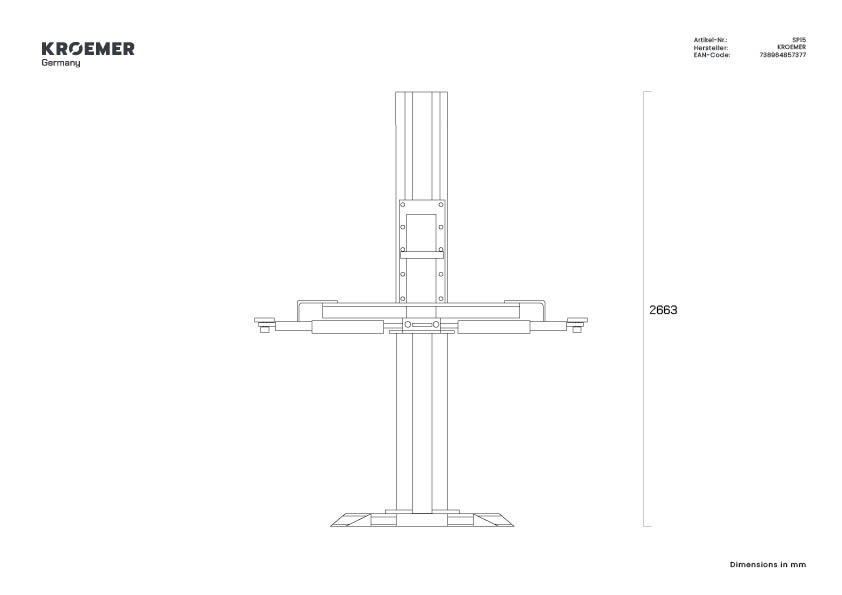

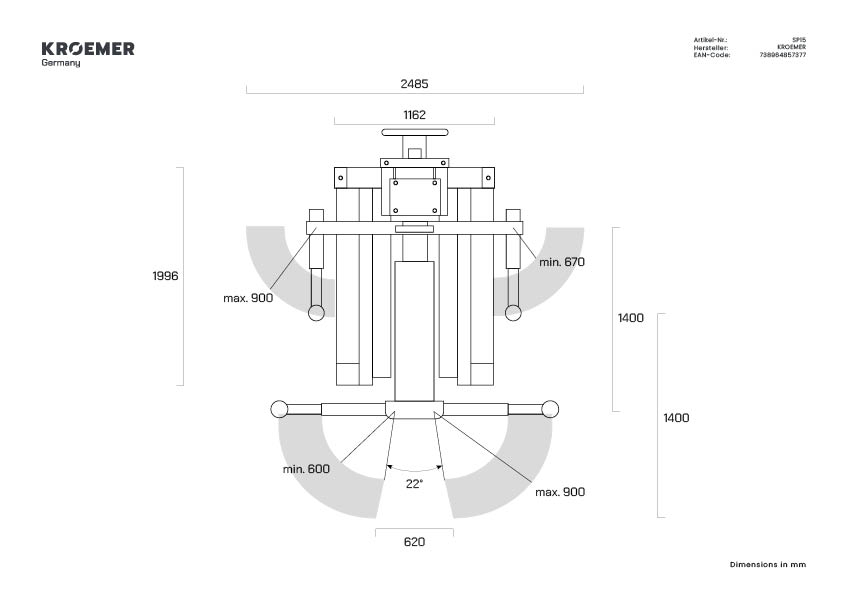

* The dimensions of the lift can be found in the technical drawing.

Not eligible for express shipping

Scope of Delivery

• Single-post lift Kroemer SP15
• Electric motor 230V or 400V hydraulic unit
• German operating manual and inspection log for UVV inspection available for download in our FAQs or instructions and inspection log
• Remote control and 230V power socket

Not included in the delivery

• Oil – optionally available for separate order (filling volume: 15 liters)
• Vehicle
• Optional transport extensions

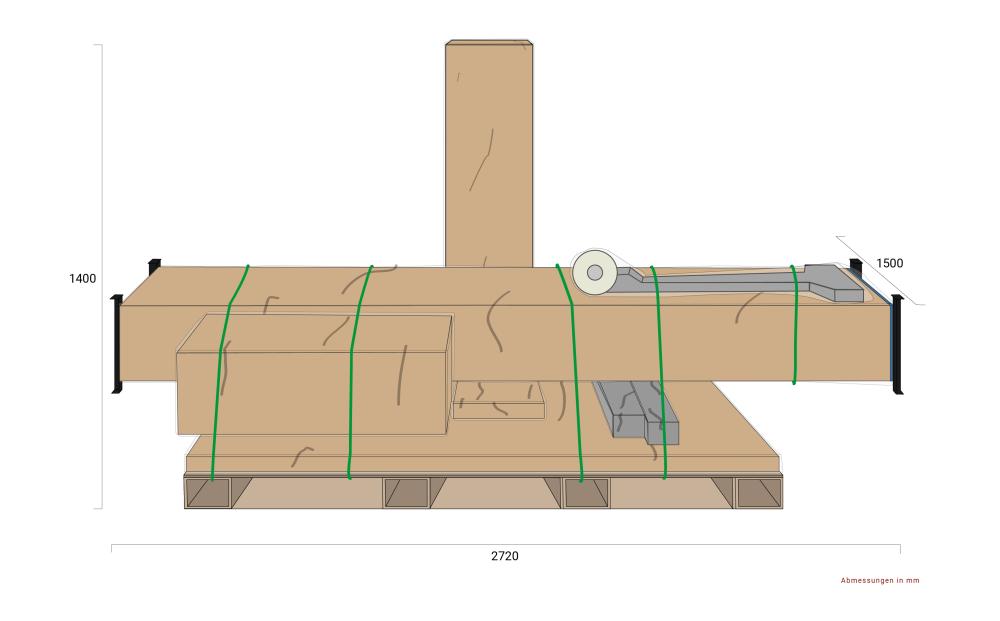

Unloading information

Despite the high-quality paint finish, minor scratches may occur during logistics handling, quality control, or assembly.

A forklift is required for unloading. Depending on the carrier, some trucks are equipped with tail lifts with a load capacity of 750 kg. Otherwise, the single-post lift must be unpacked inside the truck, which may take more time.
