Expert Single Post lift 3.2t "Venice"- mobile

Special features of "Venice" SP60

• 1A processing quality with CE certificate for APR

• Production according to ISO 9001

• 1,950 mm lifting height

• Asymmetric telescopic lifting arms

• Manufactured with CNC laser for maximum precision

• Powerful hydraulic cylinder with lifting height limitation

• Low-wear bearing of the scissor joints

• Dead man's control (24V low voltage)

• Automatic unlocking of the security system

• Automatically locking safety latches

• Powder coated paintwork with
  scratch-resistant surface treatment

• Acoustic signal during the last third of the lowering process, signal tone and CE stop when lowering to protect against crushing in the foot area (foot trapping protection)

• Powerful aluminum electric motor
  with IP 54 control unit
  + Aluminum hydraulic motor

• Emergency lowering system in case of power failure

• Absenksicherungsvorrichtung

• Mechanical synchronization control

• Steering aid

--- IMPORTANT NOTICE ---  When unloading, the customer must have a forklift available

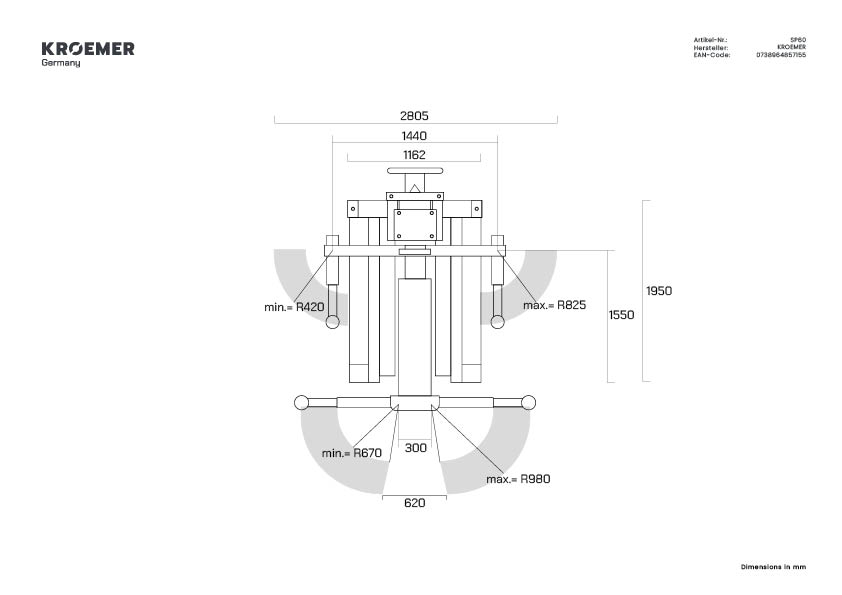

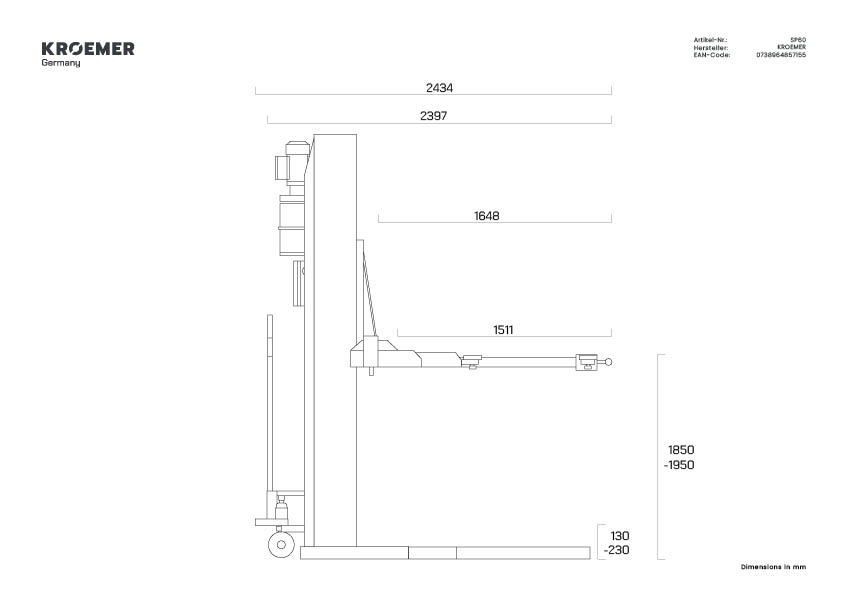

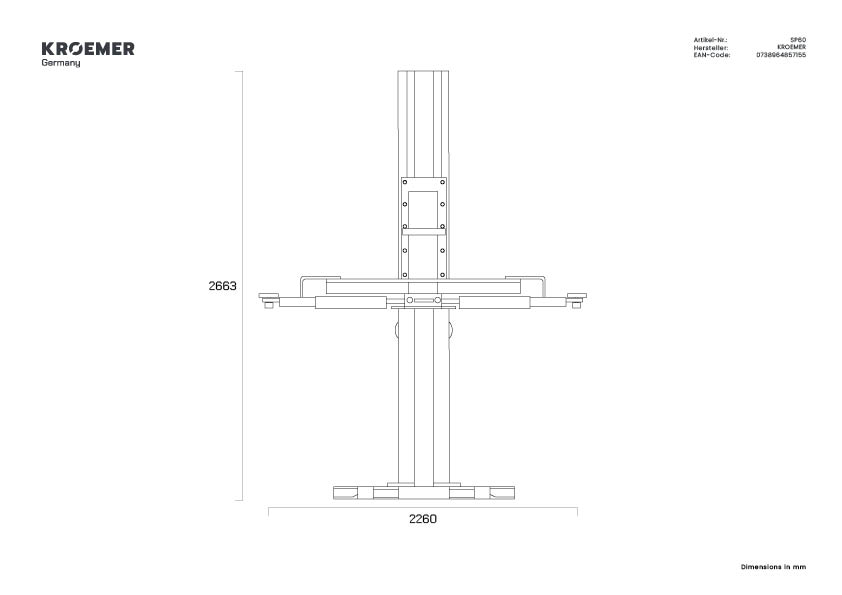

The column lift "Stettin" SP 60 has a maximum load capacity of 3,200 kg and a dead weight of 1,300 kg. Thus, it can smoothly raise and lower a Fiat Ducato L4. Despite its own weight, the 1-post lift contains a mobile chassis for flexible working in the workshop or garage. The 2-way adjustable support arms can reach a length of up to 840 mm or 825 mm (see technical drawing).

Where many manufacturers still rely on manual unlocking mechanisms, this Krömer SP60 single-post lift has compressed air-free and fully automatic unlocking using electric magnets.One push of a button and your stage lowers. A workshop compressor or similar is not required.

Like all other single-post lifts, this Krömer marvel has also been manufactured using computer-aided CNC milling. By using the latest control technology, workpieces can be manufactured with maximum precision and accuracy of fit, which is also reflected in the optimized safety and the low price of this model at the same time.

In everyday workshop life, things can get rough at times. In order to protect your new single post lift and you as the operator from unnecessary impacts, we at Krömer have moved both the solid aluminum industrial motor and the hydraulic oil tank to the head of the lifting column. You can be sure of an additional plus in occupational safety.

No more scratches on the paintwork and poor processing: your new 1-post lift from Krömer has a powder-coated paint finish.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the "Venice" 1-post car lift has been tested and approved in accordance with the Machinery Directive in accordance with Appendix IV with a type examination, and was therefore manufactured in accordance with ISO and CE regulations. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on all our products!

1 post lift 3.2t SP60 for Multi-Van
Mobile chassis
Electric motor 230V or 400V hydraulic unit
English operating instructions and test book for UVV acceptance as a download
Optional: 220 volt socket, remote control, increases possible

Oil not included - can be ordered as an option (capacity: 15 litres)
Power cable + plug not included
Vehicle not included
