FP531 equalisation cable 5,575 mm for Kroemer VPL16-5.0T-RC

Medium-length 5,575 mm equalisation cable for Kroemer VPL16-5.0T-RC 4-post lift – FP531

The FP531 equalisation cable is a suitable spare part for the Kroemer VPL16-5.0T-RC 4-post lift. It is routed through the designated cable guide over the pulleys and supports the even movement of the runways during lifting and lowering.

The 4-post lift is fitted with a total of four equalisation cables of different lengths. These are classified as short, medium, long and extra-long equalisation cables. This item is the medium-length equalisation cable with an overall length of 5,575 mm. One cable of this version is required per lift.

During regular operation, the steel cable is continuously exposed to mechanical loads. Corrosion, damaged individual wires, deformation or other signs of wear may impair the cable routing and the even movement of the lift. Timely replacement supports reliable operation and the professional repair of the lift.

The other equalisation cables for the VPL16-5.0T-RC in short, long and extra-long versions can be found below this product description in the Accessories section. A complete set containing all four equalisation cables of different lengths is also available there. By purchasing the complete equalisation cable set, you benefit from a reduced set price compared with buying the cables individually.

Product features

• Medium-length equalisation cable for the Kroemer VPL16-5.0T-RC 4-post lift
• One of four equalisation cables of different lengths
• Version: medium length
• Supports the even movement of the runways
• Robust replacement cable for regular workshop use
• Suitable for the professional repair of the cable routing
• One equalisation cable of this length is required per lift

Technical specifications

• Item number: FP531
• Compatible model: Kroemer VPL16-5.0T-RC
• Version: medium-length equalisation cable

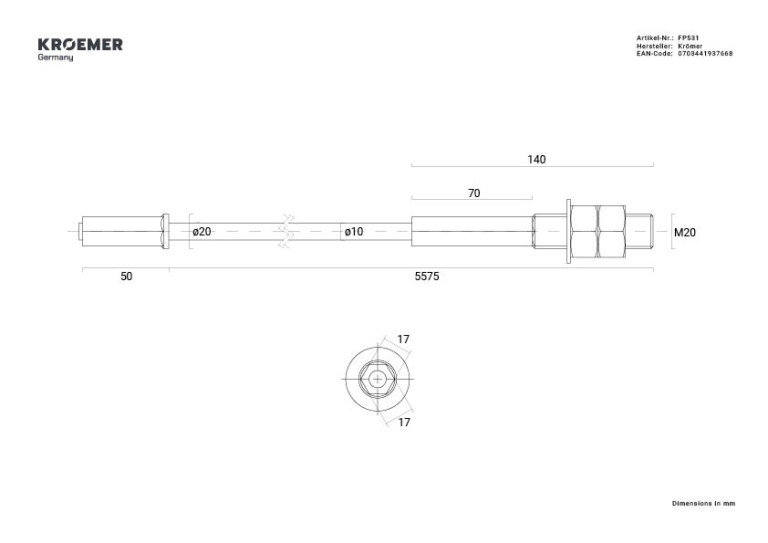

• Length: 5,575 mm
• EAN: 0703441937668

Scope of delivery

1 FP531 equalisation cable – version: medium length
Length: 5,575 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalisation cable. As the VPL16-5.0T-RC is fitted with four equalisation cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or identification marking is located at both ends of the equalisation cable. This generally includes the cable length, often at the end of the marking. Compare this information with the existing cable to clearly identify the correct spare part.

The other cable lengths and the complete set containing all four equalisation cables can be found below the description in the Accessories section. The complete set is offered at a reduced set price.

Replacement, tensioning and adjustment of the equalisation cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, the cable routing, fastenings, cable tension and even lifting movement must be checked carefully.
