FP532 synchronization rope 9455 mm for Kroemer VPL16-5.0T-RC

Long synchronization rope 9455 mm for Kroemer VPL16-5.0T-RC 4-post lift – FP532

The FP532 synchronization rope is a suitable spare part for the Kroemer VPL16-5.0T-RC 4-post lift. It is routed through the designated rope guide over the pulleys and supports the even movement of the runways when raising and lowering the lift.

A total of four synchronization ropes of different lengths are installed in the 4-post lift. According to their length, they are classified as short, medium, long and very long. This item is the long synchronization rope with a total length of 9,455 mm. One synchronization rope of this version is required per lift.

During regular operation, the synchronization rope is continuously subjected to mechanical loads. Corrosion, broken individual wires, deformation or other signs of wear can impair reliable rope guidance and the even operation of the lift. Timely replacement of the affected rope supports professional maintenance and reliable operation of the lift.

The other synchronization ropes for the VPL16-5.0T-RC in the short, medium and very long versions can be found below this product description in the Accessories section. The complete set containing all four synchronization ropes of different lengths is also available there. By purchasing the complete synchronization rope set, you benefit from a reduced set price compared with purchasing the ropes individually.

Product features

• Long synchronization rope for the Kroemer VPL16-5.0T-RC 4-post lift
• One of four synchronization ropes of different lengths
• Version: long
• Supports the even movement of the runways
• Contributes to reliable lifting movement of the lift
• Suitable for professional repair of the rope guidance system
• One synchronization rope of this length is required per lift

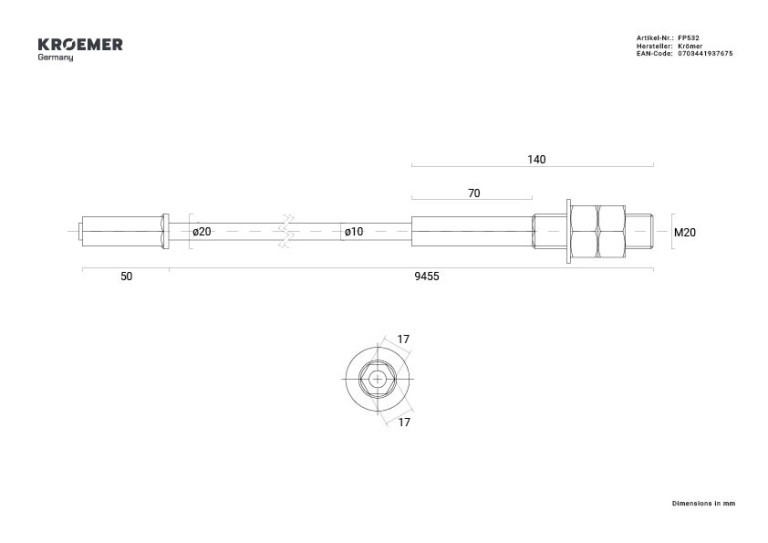

Technical data

• Item number: FP532
• Product type: synchronization rope
• Compatible model: Kroemer VPL16-5.0T-RC
• Version: long synchronization rope
• Length: 9,455 mm
• EAN: 0703441937675

Scope of delivery

• 1 FP532 synchronization rope – version: long
• Length: 9,455 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing synchronization rope. As four synchronization ropes of different lengths are installed in the VPL16-5.0T-RC, the short, medium, long and very long versions must not be confused with one another.

A serial number or identification marking is located at both ends of the synchronization rope. This usually also includes the rope length, often at the end of the marking. Compare this information with the existing synchronization rope to clearly identify the correct spare part.

The other rope lengths and the complete set containing all four synchronization ropes can be found below the description in the Accessories section. The complete set is offered at a reduced set price compared with purchasing the ropes individually.

Replacement as well as subsequent tensioning and adjustment of the synchronization rope must only be carried out by qualified personnel with the lift fully lowered, switched off and secured against unintentional activation. After installation, the rope routing, fastenings, rope tension and even lifting movement must be carefully checked.
