FP529 synchronization rope set for Kroemer VPL16-5.0T-RC

Synchronization rope set for Kroemer VPL16-5.0T-RC 4-post lift – FP529

The FP529 synchronization rope set is a complete spare parts set for the Kroemer VPL16-5.0T-RC 4-post lift. The four steel ropes connect the individual posts and platforms and support the even movement of the runways when raising and lowering the lift.

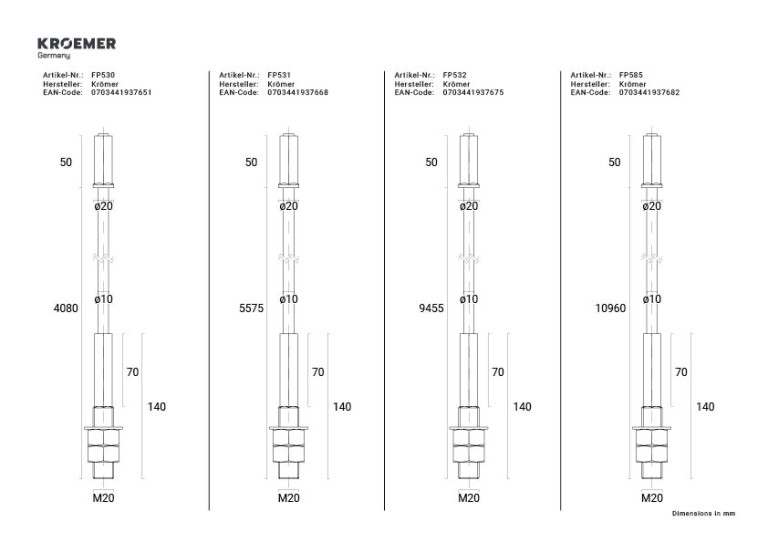

A 4-post lift uses four synchronization ropes of different lengths. The FP529 set contains all four required versions, allowing the existing ropes to be replaced completely:

• Short synchronization rope FP530: 4,080 mm
• Medium synchronization rope FP531: 5,575 mm
• Long synchronization rope FP532: 9,455 mm
• Very long synchronization rope FP533: 10,960 mm

All four ropes can also be ordered individually. However, when purchasing the complete FP529 synchronization rope set, you benefit from a reduced set price compared with purchasing the ropes individually. The complete set is therefore particularly suitable for comprehensive maintenance where all synchronization ropes are to be replaced at the same time.

During regular operation, the synchronization ropes are continuously subjected to mechanical loads. Corrosion, broken individual wires, deformation or incorrect rope tension can impair the even operation of the lift. Timely replacement of worn ropes supports reliable operation and professional maintenance of the lift.

Product features

• Complete synchronization rope set for the Kroemer VPL16-5.0T-RC
• Consists of 4 steel ropes of different lengths
• Includes one short, medium, long and very long synchronization rope
• Supports the even movement of the runways
• Complete spare parts set for the rope guidance system
• Ideal for replacing all four synchronization ropes at the same time
• Reduced set price compared with individual purchase
• Individual rope lengths also available separately

Technical data

• Item number: FP529
• Product type: synchronization rope set
• Compatible model: Kroemer VPL16-5.0T-RC
• Number of synchronization ropes: 4 pieces
• Short synchronization rope: FP530 – 4,080 mm
• Medium synchronization rope: FP531 – 5,575 mm
• Long synchronization rope: FP532 – 9,455 mm
• Very long synchronization rope: FP533 – 10,960 mm
• EAN: 0703441937644

Scope of delivery

• 1 short FP530 synchronization rope with a length of 4,080 mm
• 1 medium FP531 synchronization rope with a length of 5,575 mm
• 1 long FP532 synchronization rope with a length of 9,455 mm
• 1 very long FP533 synchronization rope with a length of 10,960 mm

Important application note

Before ordering, check the lift model as well as the markings and lengths of the existing synchronization ropes. A serial number or identification marking is located at both ends of the ropes and usually provides information about the rope version and its respective length.

The four synchronization ropes have different lengths and must be assigned to their designated positions during installation. The short, medium, long and very long versions must not be confused with one another.

Replacement as well as subsequent tensioning and adjustment of the synchronization ropes must only be carried out by qualified personnel with the lift fully lowered, switched off and secured against unintentional activation. After installation, the rope routing, fastenings, rope tension and even lifting movement must be carefully checked.
