FP164 equalising cable 10,250 mm for Kroemer FP41

Long 10.250 mm equalising cable for Kroemer FP41 4-post lift – FP164

The FP164 equalising cable is a suitable replacement part for the Kroemer FP41 4-post lift. It supports even movement of the runways during raising and lowering and therefore contributes to reliable synchronisation of the lift.

The Kroemer FP41 is fitted with a total of four equalising cables of different lengths. These are classified as short, medium, long and extra-long equalising cables. This product is the long equalising cable with a total length of 10,250 mm. One equalising cable of this version is required per lift.

During regular operation, the equalising cables are continuously exposed to mechanical stress. Corrosion, broken individual wires, deformation or other signs of wear may affect the cable guidance and even operation of the lift. Timely replacement of the affected cable supports reliable operation and professional repair of the FP41.

The equalising cables for the FP41 in short, medium and extra-long versions are available as separate replacement parts. The corresponding products can be found below this description in the Accessories section.

Product features

• Long equalising cable for the Kroemer FP41 4-post lift
• One of four equalising cables of different lengths
• Version: long
• Supports even movement of the runways
• Contributes to reliable lifting movement of the lift
• Robust design for regular workshop use
• Suitable for professional repair of the cable guidance system
• One equalising cable of this length is required per FP41

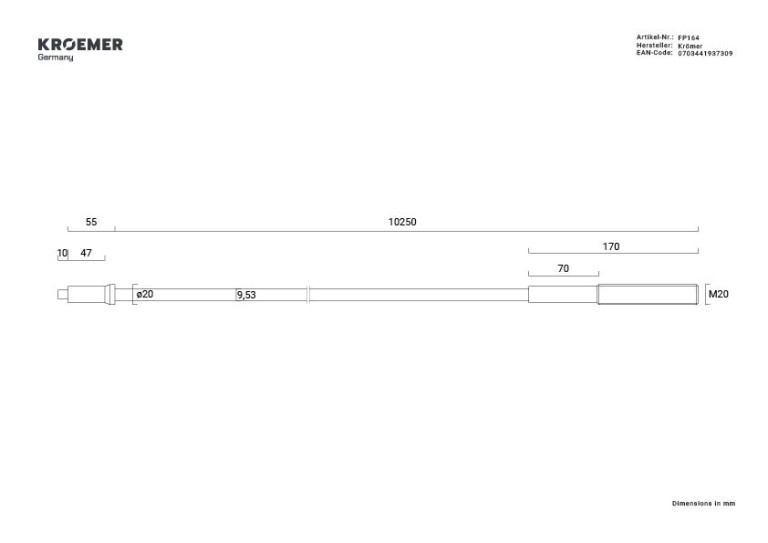

Technical data

• Item number: FP164
• Product type: equalising cable
• Compatible model: Kroemer FP41
• Version: long equalising cable
• Length: 10.250 mm
• Required quantity of this version per lift: 1 piece
• EAN: 0703441937309

Scope of delivery

• 1 FP164 equalising cable – version: long
• Length: 10.250 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalising cable. As the FP41 uses four cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or marking is located at both ends of the equalising cable. This provides information about the cable version and generally also includes the length, often at the end of the marking. Compare this information with the existing cable to select the correct replacement part.

The short, medium and extra-long equalising cables for the FP41 can be found below the product description in the Accessories section.

Replacement, tensioning and subsequent adjustment of the equalising cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, carefully check the cable routing, fixings, cable tension and even lifting movement.
