FP165 synchronisation cable 7,610 mm for Kroemer FP41

Medium 7,610 mm equalising cable for Kroemer FP41 4-post lift – FP165

The FP165 equalising cable is a suitable replacement part for the Kroemer FP41 4-post lift. It runs through the designated cable guidance system and supports even movement of the runways when raising and lowering the lift.

The Kroemer FP41 is fitted with a total of four equalising cables of different lengths. Depending on their length, these are classified as short, medium, long and extra-long. This product is the medium-length equalising cable with a total length of 7,610 mm. One equalising cable of this version is required per lift.

During regular operation, the equalising cable is continuously exposed to mechanical stress. Corrosion, broken individual wires, deformation or other signs of wear may affect the reliable cable guidance and even operation of the lift. Timely replacement of the affected cable contributes to professional repair and reliable operation of the FP41.

The other equalising cables for the Kroemer FP41 in short, long and extra-long versions are available as separate replacement parts. The corresponding products can be found below this description in the Accessories section.

Product features

• Medium-length equalising cable for the Kroemer FP41 4-post lift
• One of four equalising cables of different lengths
• Version: medium
• Supports even movement of the runways
• Robust steel cable for regular workshop use
• For professional repair of the cable guidance system
• One equalising cable of this version is required per FP41

Technical data

• Item number: FP165
• Compatible model: Kroemer FP41
• Version: medium-length equalising cable

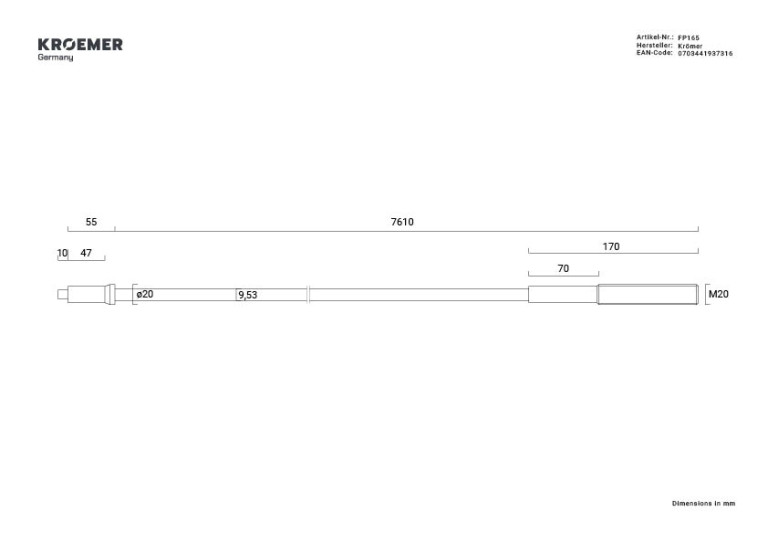

• Length: 7,610 mm
• EAN: 0703441937316

Scope of delivery

• 1 FP165 equalising cable – version: medium length
• Length: 7,610 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalising cable. As a 4-post lift uses four cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or marking is located at both ends of the equalising cable. This provides information about the cable version and generally also includes the length, often at the end of the marking. Compare this information with the existing cable to select the correct replacement part.

The short, long and extra-long equalising cables for the FP41 can be found below the product description in the Accessories section.

Replacement, tensioning and subsequent adjustment of the equalising cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, carefully check the cable routing, fixings, cable tension and even lifting movement.
