FP162 equalising cable 11,690 mm for Kroemer FP41

Extra-long 11,690 mm equalising cable for Kroemer FP41 4-post lift – FP162

The FP162 equalising cable is a suitable replacement part for the Kroemer FP41 4-post lift. It runs through the designated cable guidance system over the pulleys and supports even movement of the runways when raising and lowering the lift.

The Kroemer FP41 is fitted with a total of four equalising cables of different lengths. Depending on their length, these are classified as short, medium, long and extra-long. This product is the extra-long equalising cable with a total length of 11,690 mm. One equalising cable of this version is required per lift.

During regular operation, the equalising cable is continuously exposed to mechanical stress. Corrosion, broken individual wires, deformation or other signs of wear may affect the reliable cable guidance and even operation of the lift. Timely replacement of the affected steel cable supports professional repair and reliable operation of the FP41.

The other equalising cables for the Kroemer FP41 in short, medium and long versions are available as separate replacement parts. The corresponding products can be found below this description in the Accessories section.

Product features

• Extra-long equalising cable for the Kroemer FP41 4-post lift
• One of four equalising cables of different lengths
• Version: extra-long
• Supports even movement of the runways
• Robust steel cable for regular workshop use
• Suitable for professional repair of the cable guidance system
• One equalising cable of this length is required per FP41

Technical data

• Item number: FP162
• Compatible model: Kroemer FP41
• Version: extra-long equalising cable

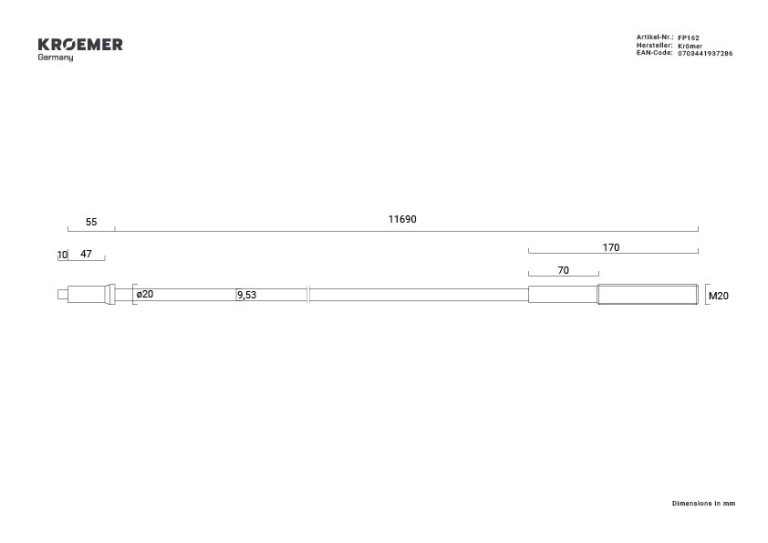

• Length: 11,690 mm
• EAN: 0703441937286

Scope of delivery

• 1 FP162 equalising cable – version: extra-long
• Length: 11,690 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalising cable. As the FP41 uses four cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or marking is located at both ends of the equalising cable. This provides information about the cable version and generally also includes the cable length, often at the end of the marking. Compare this information with the existing equalising cable to select the correct replacement part.

The short, medium and long equalising cables for the FP41 can be found below the product description in the Accessories section.

Replacement, tensioning and subsequent adjustment of the equalising cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, carefully check the cable routing, fixings, cable tension and even lifting movement.
