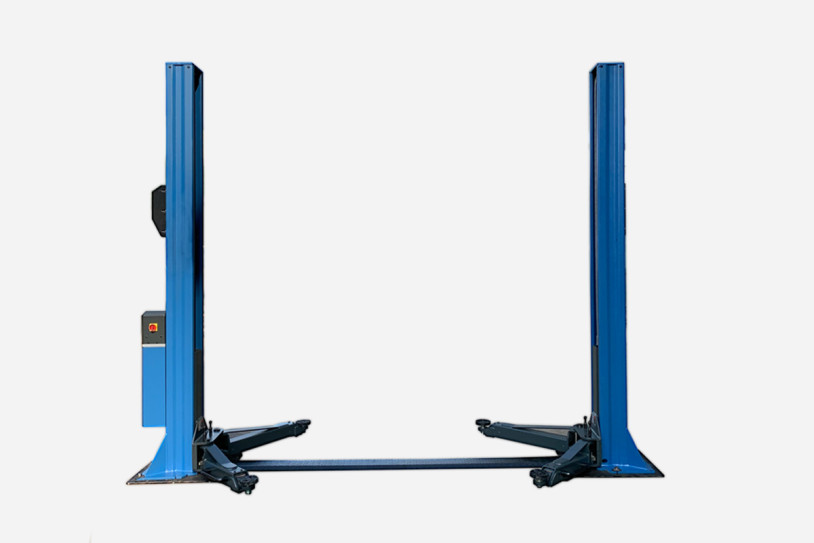

Professional 2 Post Lift 4.0t "Norwich" full-automatic

Special features of "Norwich"

• 1A processing quality, with CE certificate for APR acceptance

• Production according to ISO 9001

• Maximal lifting height 2150 mm

• High-quality and solid construction (weight 630 kg)
• Lifting arms with automatic locking and unlocking

• Optional additional 230 V socket on the switch box

• Synchronization control by wire ropes

• Powder-coated paintwork, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Powerful aluminum electric motor

• Limit switch for height limitation and automatic safety for safe working

• Two-stage, height-adjustable turntable with anti-twist protection, low swiveling height thanks to flat support arms

• Column covers for comprehensive occupational safety

• Two powerful hydraulic cylinders



Especially in the commercial professional sector, there are special requirements for car lifts. With the "Norwich" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 4,000 kg. You will soon be able to lift small trucks and caravans without any problems (see dimensions and graphic).It should be noted that the lift is delivered with 3x support arms for one side and 2x support arms for the other.

With the help of the submersible pump, the TP27 "Norwich" works extremely quietly and is therefore also suitable for sensitive ears.

The hydraulic motor of this 2 post lift is made of high-quality industrial aluminum! Cheap cast iron motors are a thing of the past. At Krömer you also get a high-quality, modern and newly designed metal control panel, which is not available anywhere else.

The columns were manufactured using the highest quality Auropont special steel (Q235) and bent 14 times with and with the help of a machine from a Trumpf subsidiary. Wobbly and imprecisely fitted support arms or lifting carriages are almost impossible. Our welders almost exclusively use Panasonic® welding units to assemble this model in order to further increase the production quality for you. Panasonic guarantees deep-pored penetration of the steel and joins it precisely, without deformation and without blistering (breakage).

This Krömer lift is stable and safe due to its solid metal chassis made of special rolled sections. The hydraulic motor is made of particularly high-quality industrial aluminium. Cheap cast engines are a thing of the past. The noble and high-quality design with powder coating completes the Krömer package. Most other suppliers manufacture according to their own statements in different production facilities, but all have a similar control panel despite "Designed/Made in Germany". At Krömer you have a high-quality, modern and newly designed control panel that cannot be found anywhere else!

In everyday workshop life it can often be a bit rough. In order to keep your new lifting platform reliable in the long term, we have therefore relocated the hydraulic unit and the associated oil tank to the main column head. This protects the important drive machinery from impact and dirt. In addition, this Krömer column lift offers you a 2-way height-adjustable support plate with a sophisticated double thread and overturning protection. From now on, you can also easily raise vehicles with difficult dimensions in just a few simple steps.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 2-post car lift "Paderborn SUPER" - TP27 has been tested according to the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations. This is how you succeed in the UVV acceptance with distinction. If something should stop working, we always have the right spare part ready for you. Just help yourself in our shop.

We have Allianz product liability insurance and business liability insurance on our products! Sadly, this is not the case for the most of our competition.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel.

2 post car lift 4.0t "Norwich" fully automatic
Electric motor 230V or 400V hydraulic unit
English operating instructions and test book for the UVV acceptance in DOWNLOADS
Heavy-duty anchor (12 pieces)
Door edge protection on both columns
4x height-adjustable carrying plates with double thread

Optional: 220 volt socket, remote control, increases possible
Not included in delivery:
Oil not included - can be ordered as an option (capacity: 15 litres)
Power cable + plug not included
Vehicle not included
