FP574 equalising cable for post lift

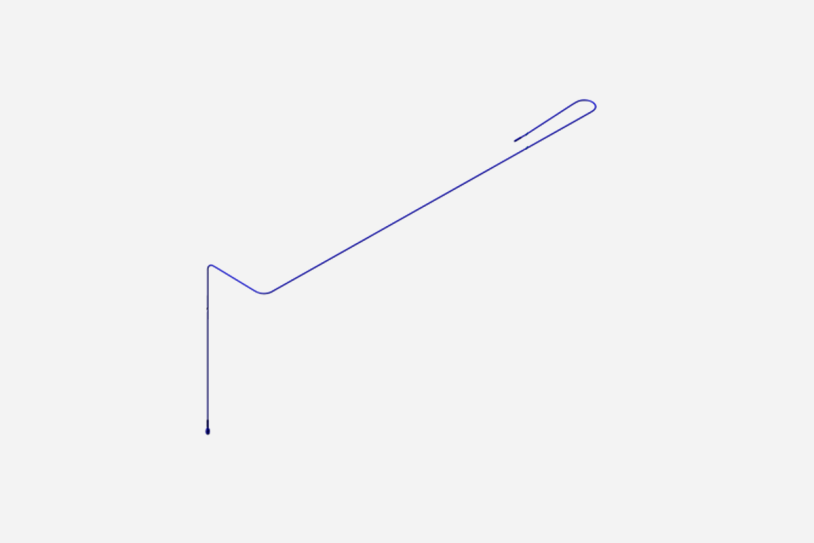

Long 9,126 mm equalising cable for Kroemer FP46 4-post lift – FP574

The FP574 equalising cable is a suitable replacement part for the Kroemer FP46 4-post lift. It supports the even movement of the runways and contributes to reliable, synchronised lifting operation.

Each Kroemer 4-post lift is fitted with a total of four equalising cables of different lengths. These are classified by length as short, medium, long and extra-long. This product is the long equalising cable for the Kroemer FP46.

The steel cable has a length of 9,126 mm and a diameter of 12.5 mm. Its durable construction is designed to withstand the mechanical stresses associated with regularly raising and lowering the lift.

Equalising cables may become damaged through continuous operation, corrosion or mechanical wear. Possible signs include broken individual wires, visible deformation or impaired synchronised movement. Timely replacement of the affected cable helps maintain reliable operation and supports professional repair of the lift.

The other equalising cables for the FP46 in short, medium and extra-long versions can be found below this product description in the Accessories section. The appropriate cable lengths are linked there as separate replacement parts.

Product features

• Long equalising cable for the Kroemer FP46 4-post lift
• One of four equalising cables of different lengths
• Supports the even movement of the runways
• Contributes to synchronised lifting operation

Technical data

• Item number: FP574
• Compatible model: Kroemer FP46
• Version: long equalising cable
• Length: 9,126 mm
• Cable diameter: 12.5 mm
• EAN: 0703441936357

Scope of delivery

• 1 FP574 equalising cable, long version
• Length: 9,126 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalising cable. As a 4-post lift uses four cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or marking is located at both ends of the equalising cable. This generally includes the cable length, often at the end of the marking. Compare this information with the existing cable to select the correct replacement part.

The short, medium and extra-long equalising cables can be found below the description in the Accessories section.

Replacement, tensioning and subsequent adjustment of the equalising cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, carefully check the cable routing, fixings, tension and even lifting movement.
