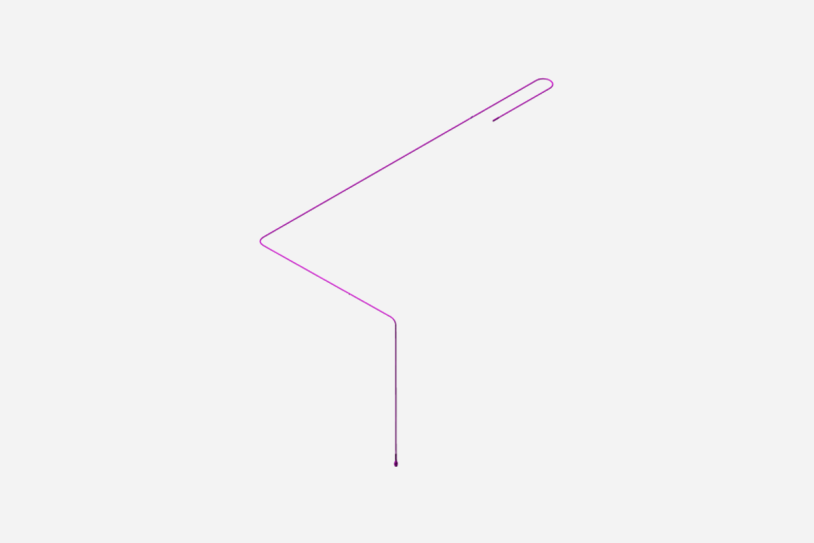

FP577 equalising cable 10,703 mm for Kroemer FP46

Extra-long 10,703 mm equalising cable for Kroemer FP46 4-post lift – FP577

The FP577 equalising cable is a suitable replacement part for the Kroemer FP46 4-post lift. It supports even power transmission within the lift and contributes to reliable and stable lifting movement of the runways.

The Kroemer FP46 is fitted with a total of four equalising cables of different lengths. Depending on their length, these are classified as short, medium, long and extra-long. This product is the extra-long equalising cable with a total length of 10,703 mm. Each of the different cable lengths is available as a separate replacement part.

The robust steel cable is designed to withstand the regular mechanical stresses that occur when raising and lowering the lift. Damage, corrosion, broken individual wires or other signs of wear may affect the reliable operation of the cable guidance system. Timely replacement supports safe operation and professional repair of the lift.

The FP577 equalising cable has a diameter of 12.5 mm and is supplied individually. The other short, medium and long versions can be found below this product description in the Accessories section. The remaining equalising cables for the Kroemer FP46 are linked there directly.

Product features

• Extra-long equalising cable for the Kroemer FP46 4-post lift
• One of four equalising cables of different lengths
• Version: extra-long
• Supports even power transmission and lifting movement
• Robust design for regular workshop use
• Suitable for professional repair of the cable guidance system

Technical data

• Item number: FP577
• Product type: equalising cable
• Compatible model: Kroemer FP46
• Version: extra-long equalising cable
• Length: 10,703 mm
• Cable diameter: 12.5 mm
• EAN: 0703441936388

Scope of delivery

• 1 FP577 equalising cable – version: extra-long
• Length: 10,703 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalising cable. As a 4-post lift uses four cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or marking is located at both ends of the equalising cable. This generally also includes the cable length, often at the end of the marking. Compare this information with the existing cable to identify the correct version.

The short, medium and long equalising cables can be found below the description in the Accessories section. Replacement, tensioning and subsequent adjustment of the equalising cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, carefully check the cable routing, fixings, cable tension and even lifting movement.
