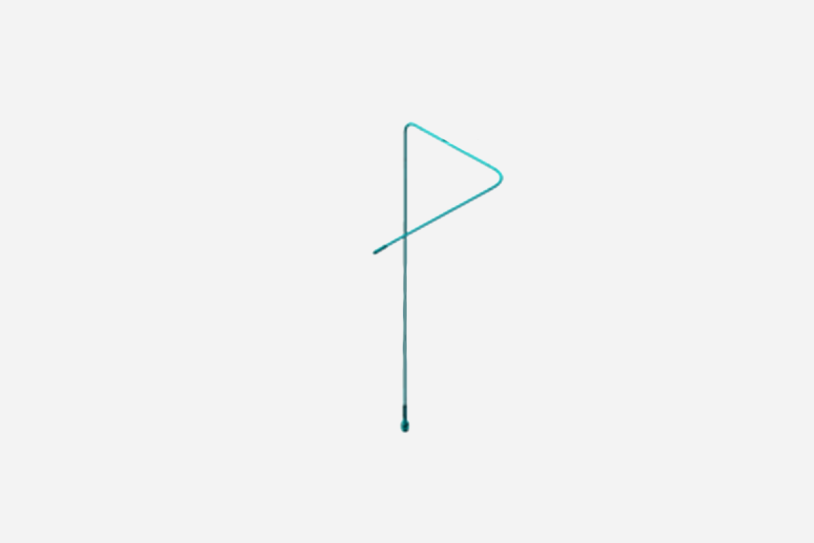

FP576 equalising cable 3,966 mm for Kroemer FP46

Short 3,966 mm equalising cable for Kroemer FP46 4-post lift – FP576

The FP576 equalising cable is a suitable replacement part for the Kroemer FP46 4-post lift. It supports the even movement of the runways and contributes to reliable lifting operation.

Each Kroemer 4-post lift is fitted with a total of four equalising cables of different lengths. These are classified by length as short, medium, long and extra-long. This product is the short equalising cable with a length of 3,966 mm.

During regular lift operation, the equalising cables are continuously exposed to mechanical stress. Damage, corrosion, broken individual wires or other signs of wear may make replacement necessary. The correct replacement cable enables professional repair of the cable guidance system.

The three other equalising cables in medium, long and extra-long versions can be found below this description in the Accessories section. The cable variants suitable for the lift are linked there as separate products.

Product features

• Short equalising cable for the Kroemer FP46 4-post lift
• One of four equalising cables of different lengths
• Version: short (3,966 mm)
• Supports the even operation of the lift
• For professional repair of the cable guidance system
• Supplied as a single equalising cable

Technical data

• Item number: FP576
• Compatible model: Kroemer FP46
• Version: short equalising cable
• Length: 3,966 mm
• Diameter: 12 mm

Scope of delivery

• 1 FP576 equalising cable, short version

Important application note

Before ordering, check the lift model, item number and length of the existing equalising cable. As a 4-post lift uses four cables of different lengths, the individual versions must not be confused with one another.

A marking or serial number is located at both ends of the equalising cable for clear identification. This marking generally also contains the cable length, often at the end of the number. Compare this information to determine the correct version.

The medium, long and extra-long versions can be found below the description in the Accessories section. Replacement and subsequent adjustment of the equalising cables must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional operation.
