Hydraulic pump for drive-on scissor lifts XX442

Hydraulic gear pump XX442 with 5.8 cm³/rev. for Kroemer drive-on scissor lifts

The XX442 hydraulic gear pump is a suitable replacement part for compatible Kroemer drive-on scissor lifts. It is installed within the hydraulic power unit and pumps the hydraulic oil through the system. This supports reliable pressure build-up and smooth lifting movement of the runways.

With a displacement of 5.8 cm³ per revolution, the pump is matched to the requirements of the corresponding hydraulic system. The compact metal housing is designed to withstand the regular mechanical and hydraulic loads encountered during workshop operation.

A worn or damaged hydraulic pump may cause delayed pressure build-up, reduced lifting performance, unusual operating noises or uneven lifting movement. Professional replacement of the individual pump allows the hydraulic power unit to be repaired without having to replace the complete hydraulic unit.

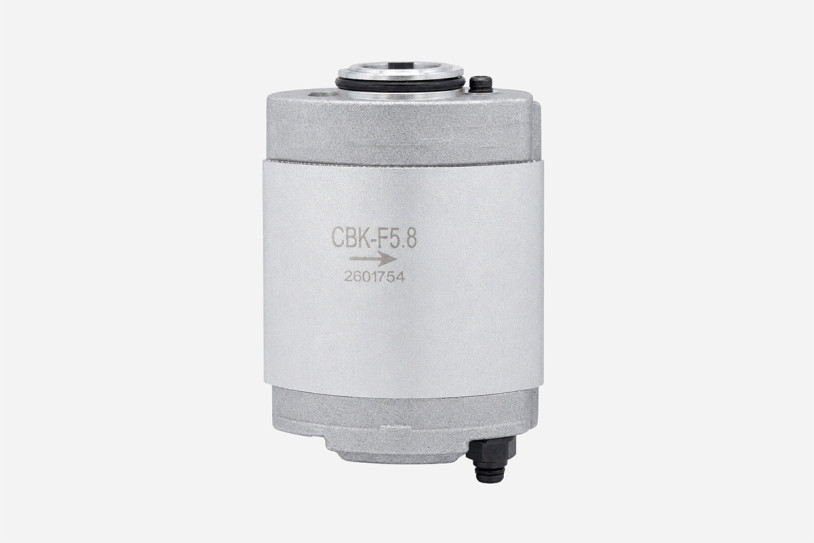

The pump housing features a model marking, the additional marking 2601754 and an arrow indicating the specified operating or pumping direction. This information makes it easier to compare the pump with the installed component and helps ensure selection of the correct replacement part.

Product features

• Hydraulic gear pump for compatible Kroemer drive-on scissor lifts
• Replacement part for the lift’s hydraulic power unit
• Displacement of 5.8 cm³ per revolution
• Supports reliable pressure build-up within the hydraulic system
• Contributes to smooth lifting movement of the runways
• Compact and robust metal construction
• Model marking directly on the pump housing
• Marked operating or pumping direction

Technical data

• Product type: hydraulic gear pump
• Displacement: 5.8 cm³/rev.
• Pumping direction: according to the arrow marking on the pump housing
• Seal: O-ring at the connection

Scope of delivery

• 1 XX442 hydraulic gear pump

Important application note

Before ordering, carefully compare the model marking, the displacement of 5.8 cm³/rev., the housing shape, connection positions, dimensions and arrow marking with the existing hydraulic pump. Even visually similar hydraulic pumps may differ in terms of displacement, direction of rotation and connection dimensions.

Replacement must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. The hydraulic system must be depressurised before dismantling.

After installation, check that the connections and seals are correctly fitted and leak-tight. The hydraulic oil level, pumping direction, pressure build-up and smooth raising and lowering movement of the lift must also be checked.
