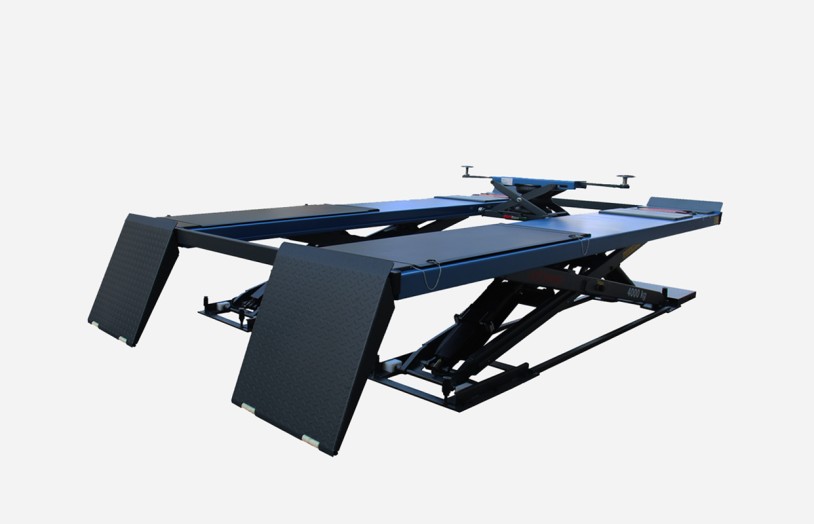

Overhead Scissor Lift Kroemer XX91

Kroemer XX91 Drive-On Scissor Lift – 4,000 kg Lifting Capacity, 1,850 mm Lifting Height and Ideal for Wheel Alignment

The XX91 vehicle inspection lift offers a lifting height of 1,850 mm and a lifting time of just 50 seconds, providing ideal conditions for fast and safe maintenance work. Whether for tyre changes or repairs to the underside of the vehicle, this workshop lift is an excellent solution for professional applications.

• Successor model to the XX90
• Industrial control system
• Modern, enclosed metal control cabinet – no plastic
• Integrated manoeuvring aid (support arm)

Maximum Functionality and Stability

The XX91 model features a solid, heavy-duty construction that provides excellent stability in daily workshop use. For even greater flexibility, an optional axle jack can be integrated – ideal for work on the suspension or brakes and perfectly suited for wheel alignment*.

Durability & High Quality

The Kroemer scissor lift is designed for long-term use. Thanks to its powder-coated finish, the lift is well protected against scratches and corrosion. In addition, the bolts and screws are galvanized, further increasing durability. For maximum safety, the XX91 is equipped with a CE stop system and an acoustic warning signal during lowering, including foot protection.

Commissioning Information

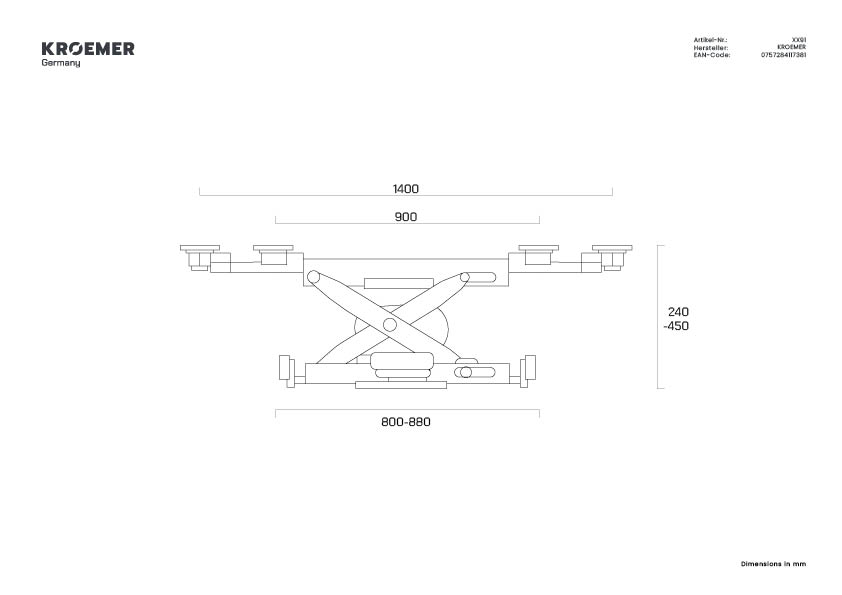

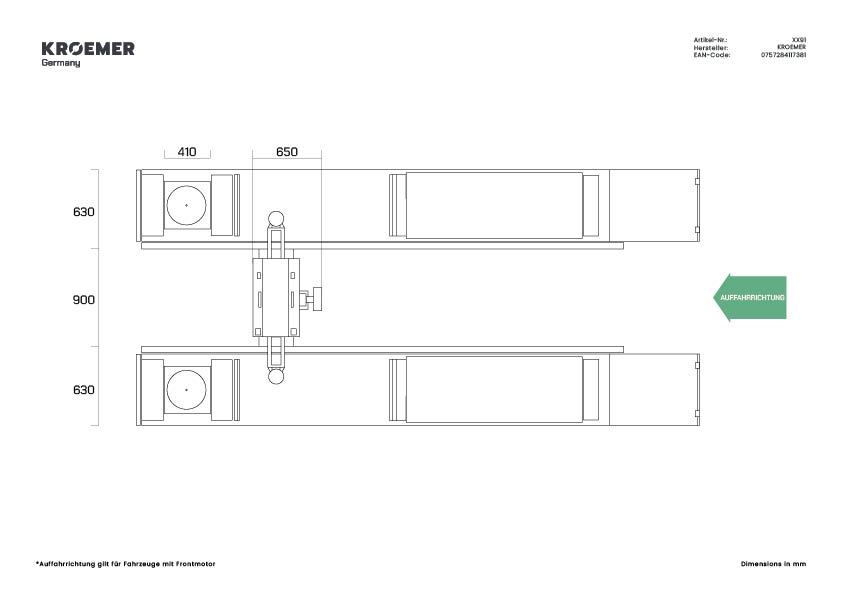

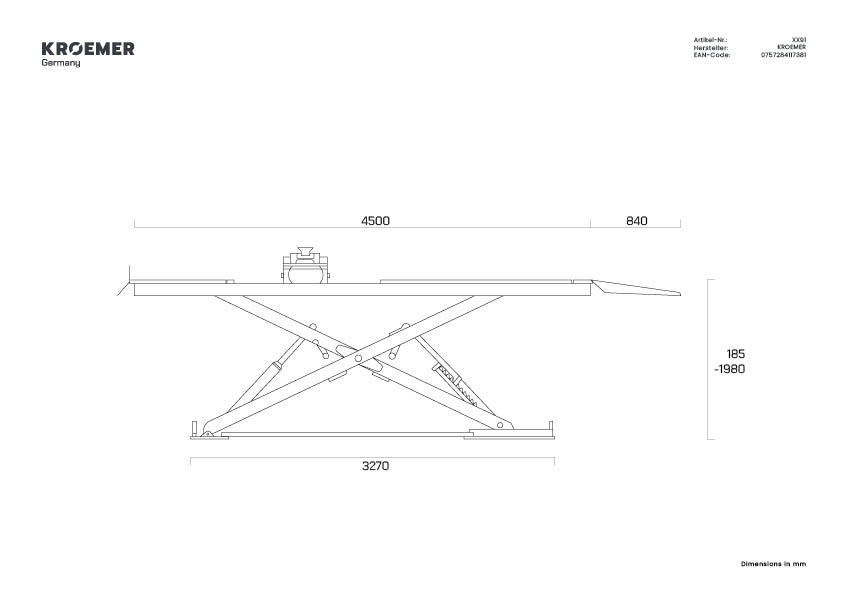

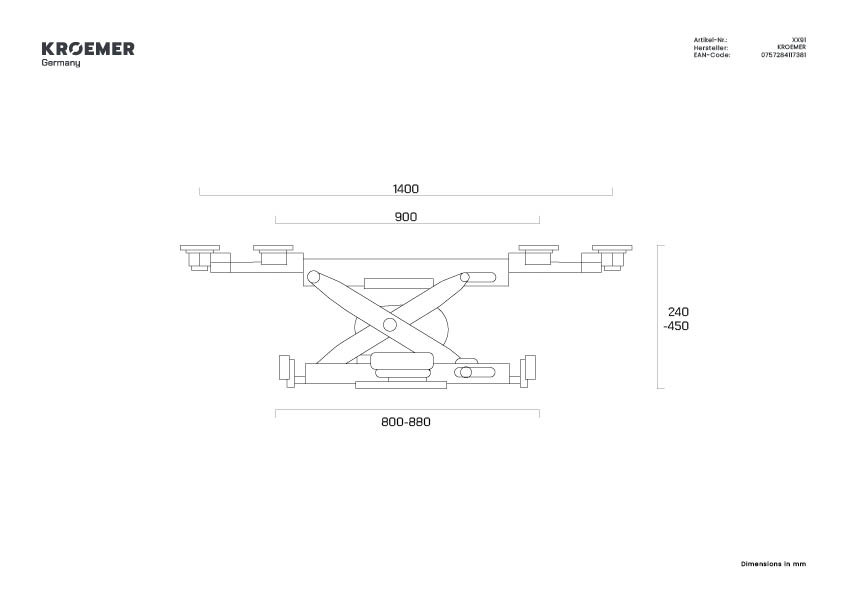

For initial commissioning and for releasing the safety locking system, a compressor with 10 bar pressure is required. To prevent damage to the vehicle or ceiling, we recommend a minimum room height of 4.20 m to 5.00 m, depending on the vehicle height and selected lifting height. Exact dimensions can be found in the technical drawing in the download section.

NOTE: Change the oil after 30 lifting cycles or 2 months, then continue with annual oil changes.

Important Information for Delivery

A forklift must be provided by the customer for unloading.

*Suitable for Kroemer 3D wheel alignment. For external diagnostic or wheel alignment equipment, please request written confirmation before purchase. Levelling after installation is mandatory.

Not Eligible for Express Shipping

Scope of Delivery

• In-ground professional scissor car lift with wheel-free jack Kroemer XX91
• Electric motor 230V or 400V
• Installation frames (2 pieces)
• German operating instructions and inspection logbook for UVV acceptance available as a download in our FAQs
• Invoice with VAT shown separately

Not Included in Delivery:

• Hydraulic oil – can be ordered optionally in the online shop (filling quantity: 15 liters)
• Vehicle
• Compressor – 8–10 bar required
• CEE plug – can be ordered optionally in the online shop
• Wheel-free jack (SX007)

Below the description you will find the accessories section with a wide range of products and services for the XX91.

Unloading Information

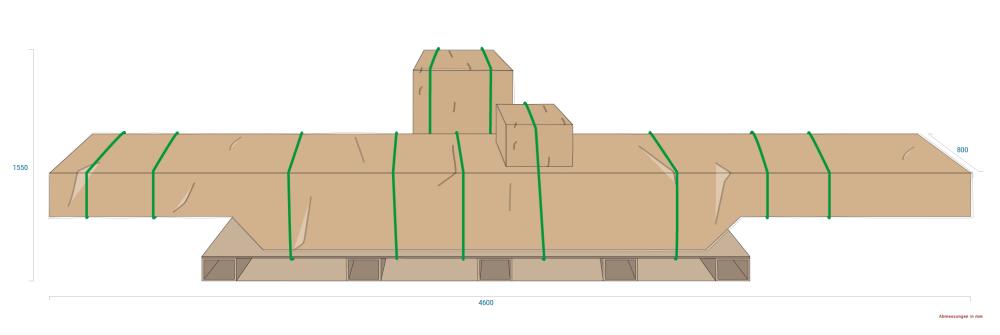

The metal frames attached around the lift serve as protection and are part of the packaging.

Despite the high-quality paint finish, scratches may occur on the lift due to logistics, quality control, and assembly.
