Fully automatic profiling machine Kroemer RW80

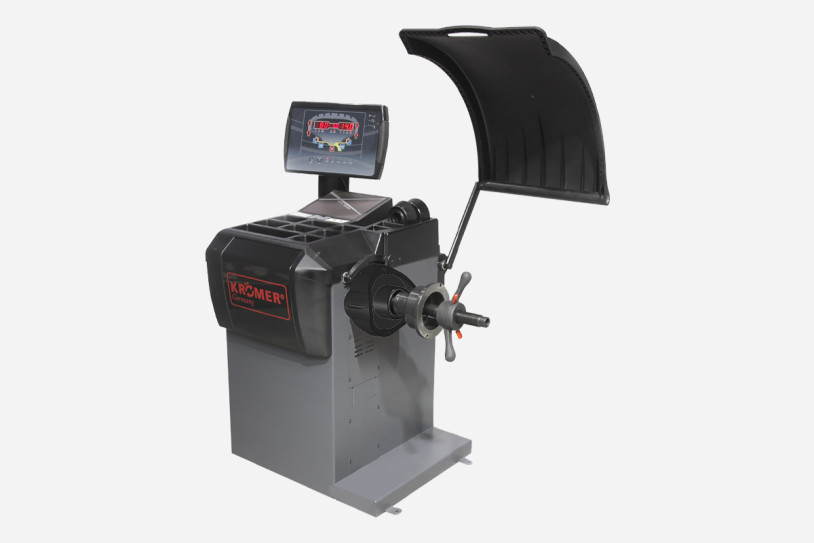

Professional Kroemer RW80 Wheel Balancer – Dual Laser, Fully Automatic Positioning & 256 Measuring Positions

Our RW80 is the ideal tool for balancing your wheels.

The integrated LED light, combined with the laser indicators at the 6 and 12 o’clock positions, allows more precise and convenient work inside the rim.

Thanks to the main shaft with 256 positions, the measurements of the RW80 are significantly more precise than those of our other model, the RW11.

The automatic start/stop function linked to the protective hood, the automatic wheel positioning at the touch of a button and the fully automatic locking brake also ensure an intuitive workflow. The automatic braking function also contributes to a significantly longer service life of the brake.

When measuring imbalance, the RW80 operates at a noise level of below 70 dB and at approximately 180 rpm. Thanks to the automated braking system, the wheel comes to a stop considerably faster than with our RW11, for example.

Using the single measuring arm, relevant dimensions such as rim distance, rim diameter and rim width are also recorded fully automatically, eliminating the need for manual input.

Thanks to the versatile programmes of the RW80, the machine can balance not only steel and aluminium car rims, but also rims for light commercial vehicles and motorcycles.

Technical Data

• Rim diameter: 12" (304.8 mm) – 24" (609.6 mm)
• Tyre diameter: 31" (800 mm)
• Main shaft diameter: 38 mm (suitable for electric vehicles)
• Maximum wheel weight: 65 kg
• Rim centre hole diameter: <135 mm
• Accuracy: 256 positions on the main shaft
• Fuse protection: 16 A (C/slow-blow)
• Balancing speed: 180 rpm
• Measuring time: 7 sec.
