ECO Reassembly Machine Kroemer RM24

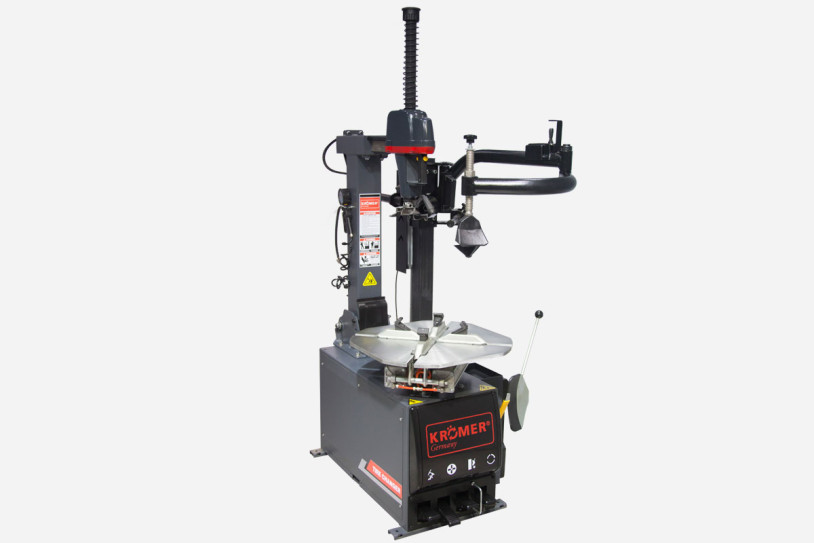

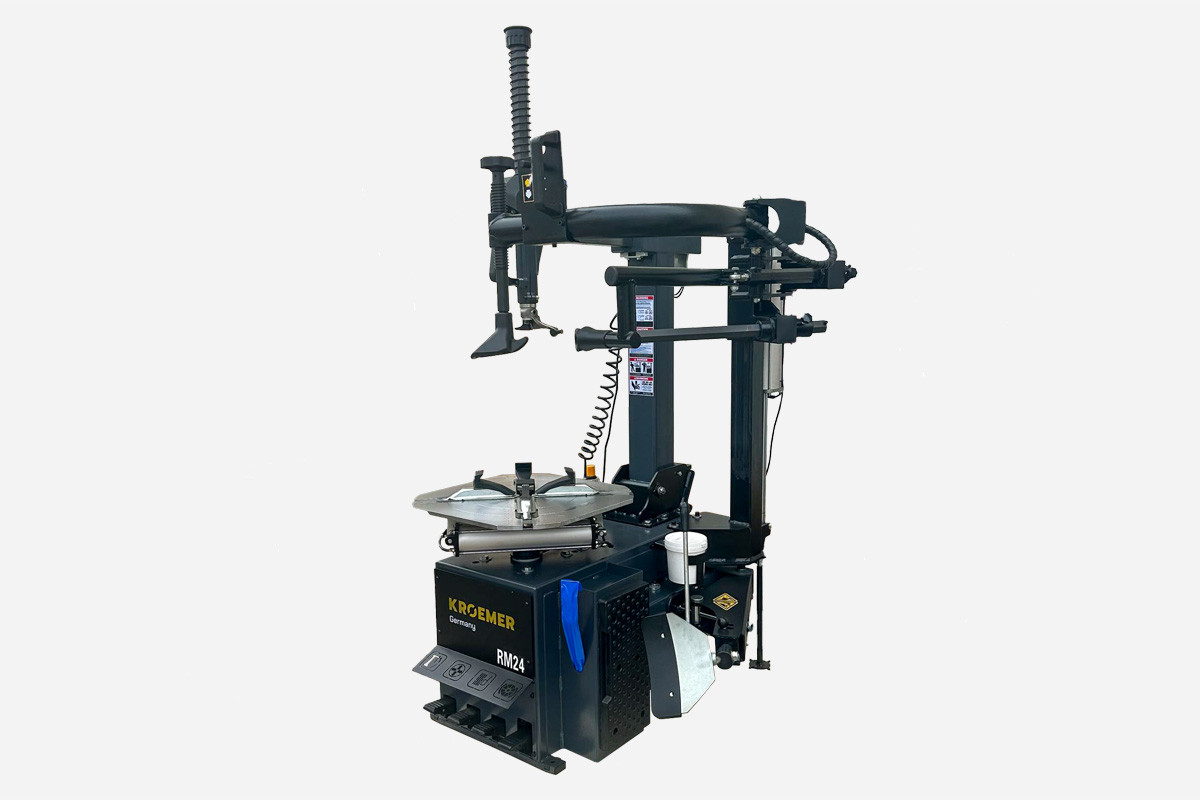

Kroemer RM24 Tyre Changer – 12–24 Inch Clamping Range, Helper Arm Included and Ideal for Cars & Small Vans

The Kroemer RM24 tyre changer is a versatile solution for workshops and ambitious users who value convenient tyre fitting and solid equipment. The pneumatically tilting mounting arm, the standard right-hand helper arm and the self-centring 4-jaw clamping system make fitting and removing a wide range of tyre types easier. With a clamping range of 12 to 24 inches, a maximum rim width of 16 inches and a bead-breaking force of 3,000 kg, the RM24 is suitable for passenger cars, small vans, run-flat tyres and low-profile tyres.

• Rear-swinging pneumatic mounting arm with pneumatic mounting head
• Suitable for: standard rims, run-flat tyres, low-profile tyres, wide tyres (over 300 mm), rims without a centre hole, emergency wheel rims and, with an adapter, motorcycle tyres
• Pressure regulator with maintenance unit
• Pneumatic turntable
• Self-centring, 2-stage adjustable and lockable 4-jaw clamping system
• Ergonomic pedal control
• Side bead breaker

The RM24 is a well-equipped mid-range tyre changer for anyone who wants to fit and remove their own car tyres.

The pneumatically tilting mounting arm and the additional helper arm included as standard make working on rims and tyres significantly easier and help save valuable working time. They also support rim-friendly tyre fitting.

Thanks to its large clamping range and self-centring 4-jaw clamping system, rims from 10" (254 mm) external clamping to 24" (610 mm) internal clamping can be handled. This allows both passenger-car and small-van tyres to be fitted smoothly. An automatic function for fully opening and closing the jaws is also integrated.

The pedal-operated control unit allows precise operation of the clamping jaws, turntable and bead-breaker blade.

The side bead-breaker blade reliably separates the tyre from the rim. With the appropriate adapter, motorcycle tyres can also be fitted and removed without difficulty.

If the plastic components on the clamping jaws or mounting head become heavily worn after an intensive tyre season, they can be replaced easily.

Technical Data

• Weight: approx. 360 kg
• Clamping range: 12" (305 mm) to 24" (610 mm)
• Maximum wheel diameter: 45" (1,143 mm)
• Maximum rim width: 16" (406 mm)
• Bead-breaking force: 3,000 kg
• Power supply: 230 V / 400 V
• Motor power: 0.75 kW
• Noise level: <70 dB
• Compressed-air connection: 8–10 bar
