Time Delay Relay for 2-Post Lifts – II238

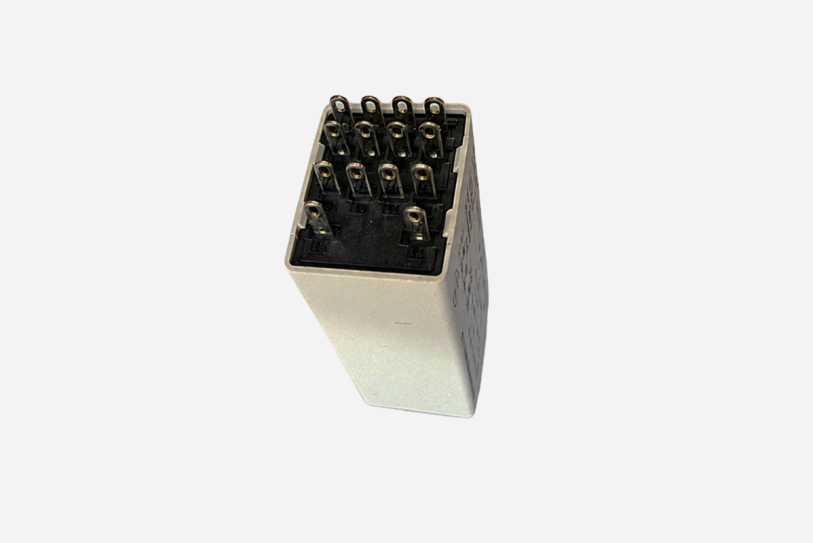

II238 Time Delay Relay, 24 V DC, for Kroemer Lift Control Systems

The II238 time delay relay is a suitable spare part for the electrical control system of selected Kroemer lifts. It controls time-dependent switching processes within the system and enables electrical sequences to be delayed in a controlled manner.

The required delay time is adjusted using the rotary dial on the side. The relay operates with a 24 V DC control voltage and features four changeover contacts. With a thermal continuous current of 5 A, it is designed for reliable operation within the lift control system.

A damaged or defective time delay relay may cause individual switching processes to occur incorrectly, too early, too late or not at all. The II238 is therefore suitable as a replacement part for restoring the intended function of the electrical control system.

The time delay relay is suitable for the Kroemer models XX75, TP11, TP22, TP52 and TP78. Before ordering, please compare the lift model, control voltage, terminal configuration and technical specifications with the existing relay.

Product Features

• Time delay relay for Kroemer lift control systems
• Control voltage: 24 V DC
• Adjustable delay time using the side-mounted rotary dial
• Four changeover contacts
• Thermal continuous current: 5 A
• Suitable as a replacement in the event of a defect or functional failure
• Controls time-dependent switching processes within the electrical system
• Suitable for XX75, TP11, TP22, TP52 and TP78
• Supplied as one individual time delay relay

Technical Data

• Item number/SKU: II238
• Model: JSZ6-4
• Component: Time delay relay
• Control voltage: 24 V DC
• Thermal continuous current (Ith): 5 A
• Contact configuration: 4 changeover contacts
• Number of terminals: 14
• Switching capacity AC-15 at 240 V: 0.75 A
• Switching capacity AC-15 at 415 V: 0.47 A
• Switching capacity DC-13 at 220 V: 0.27 A
• Time delay: Adjustable
• Standard: GB/T 14048.5
• Suitable for: Kroemer XX75, TP11, TP22, TP52 and TP78

Important Information

Work on the lift’s electrical system may only be carried out by a qualified professional. Before replacement, the lift must be completely disconnected from the power supply and secured against unintentional reconnection.

The electrical connection and adjustment of the time delay relay must be carried out by a qualified electrician in accordance with the lift’s wiring diagram. Before installation, the control voltage, contact configuration and terminal numbers must be compared with the existing component.
