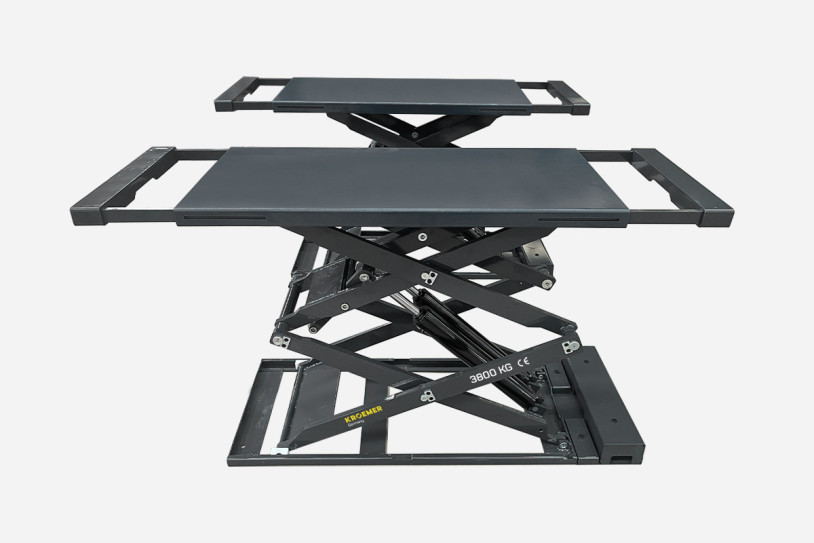

Full-rise scissor lift Underfloor - KROEMER XX75

Out of stock

£0.00
Delivery time:
30 Weekdays
Shipping cost:
599 £
  • Lifting capacity: 3,800 kg

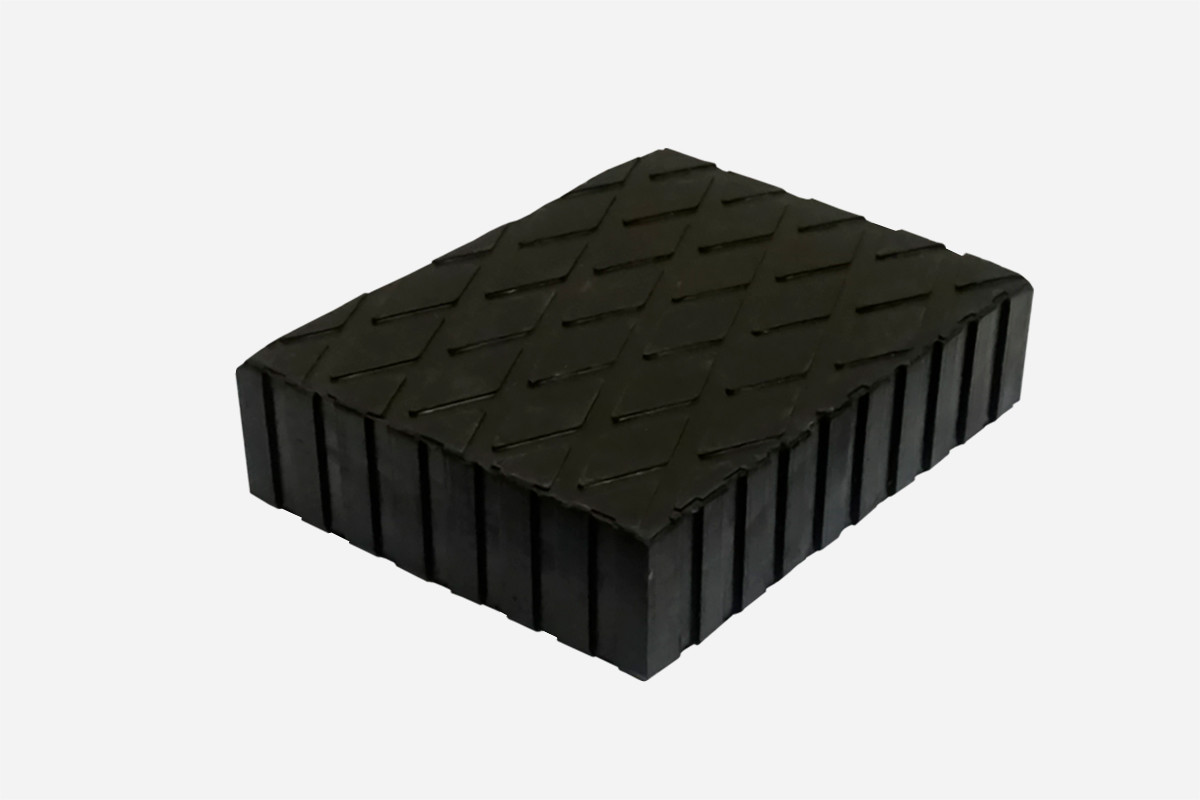

  • Lifting height with rubber blocks: 1,950 mm
  • Extendable drive-on ramps
  • Five electric valves
  • Photoelectric sensor
Description
  • Premium-grade processing quality with CE certification for UVV compliance
  • Production in accordance with ISO 9001
  • CE stop function during lowering
  • Double hydraulic cylinders
  • Robust, solid construction
  • Emergency lowering system
  • Premium powder coating by DUPONT

The Kroemer XX75 Full-rise scissor lift boasts a lifting capacity of 3.8 tonnes and a maximum lifting height of up to 1.90 metres. Designed for professional use in automotive workshops, this hydraulic car lift is ideal for a wide range of applications.

Thanks to its extendable drive-on ramps, the lift accommodates longer vehicles, making it suitable for cars, SUVs, and vans alike. Whether you're performing oil changes, tyre replacements, engine repairs, or general underbody work, the Kroemer Full-rise scissor lift delivers reliable and versatile performance.

Its sturdy construction is enhanced by a dual (redundant) hydraulic system, which eliminates the need for a compressor during the locking and unlocking process. The XX75 also features a built-in photoelectric sensor that ensures safe positioning during the CE stop.

Integrated floor covers protect the hydraulic lines, allowing vehicles to drive onto the lift safely and securely.

Note: Due to the ultra-low-profile design, no protective side plates are included. However, optional aluminium profiles are available as accessories to safeguard the side areas.

Technical Data

Technical Data

SKU XX75
EAN-Code 703.441.952.463
Delivery Time 30 Weekdays
Shipping costs 599 £
Express Shipping Available No
Lifting height max. 1.950 mm
Carrying Capacity 3.800 kg
Clearance height 0 mm (Underfloor)
Weight 1000 kg
Netzfrequenz 16 A

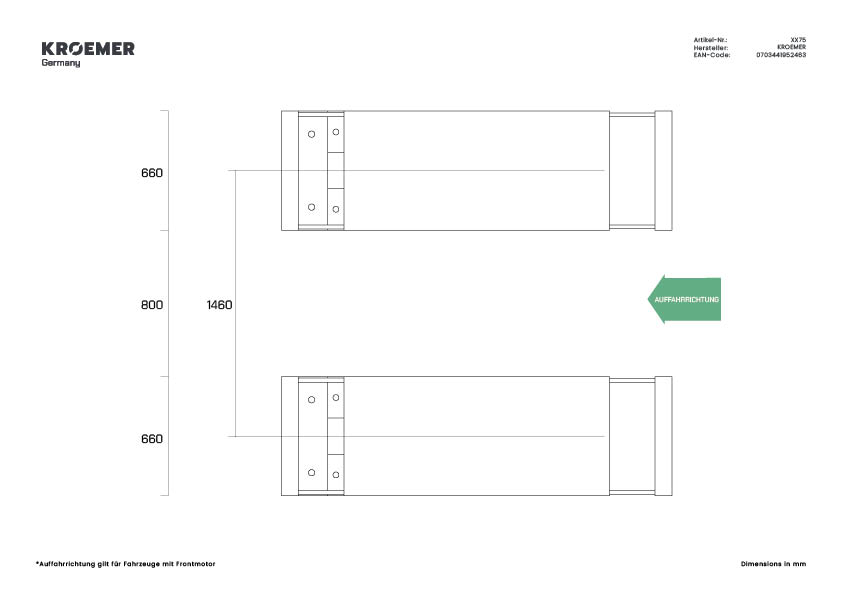

XX75 Technische Zeichnung - Draufsicht

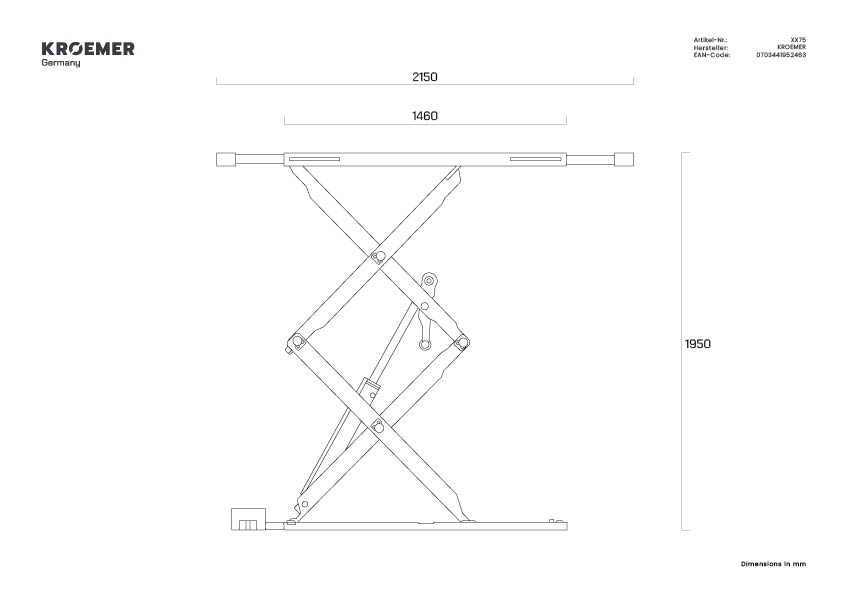

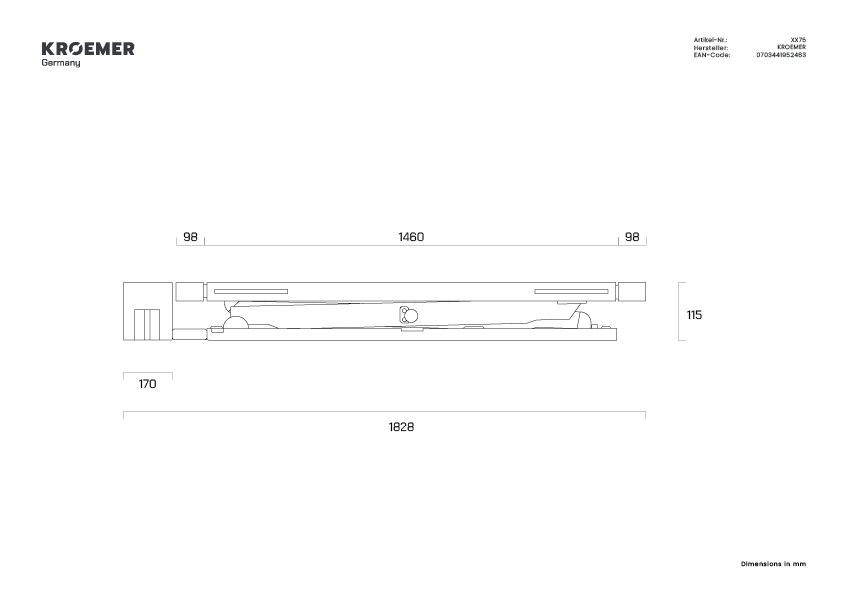

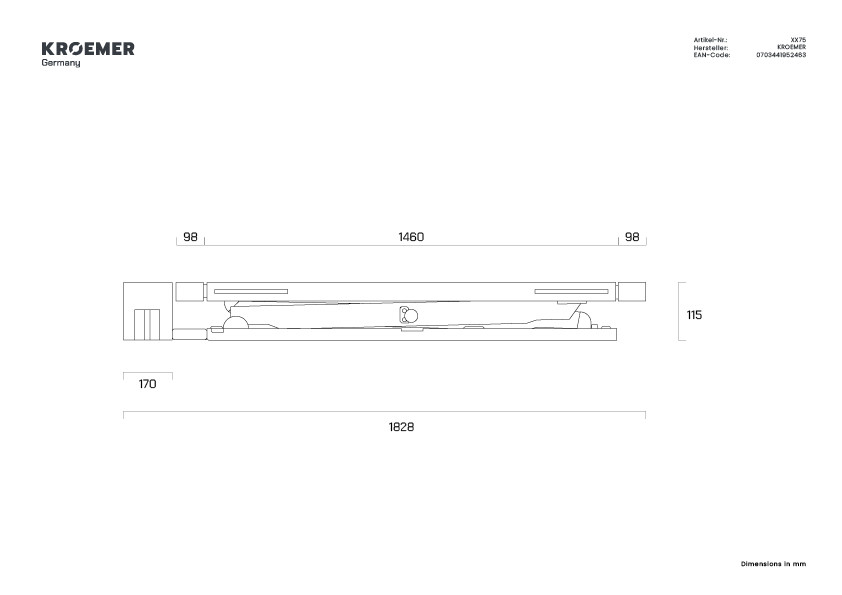

XX75 Technische Zeichnung - Seitenansicht

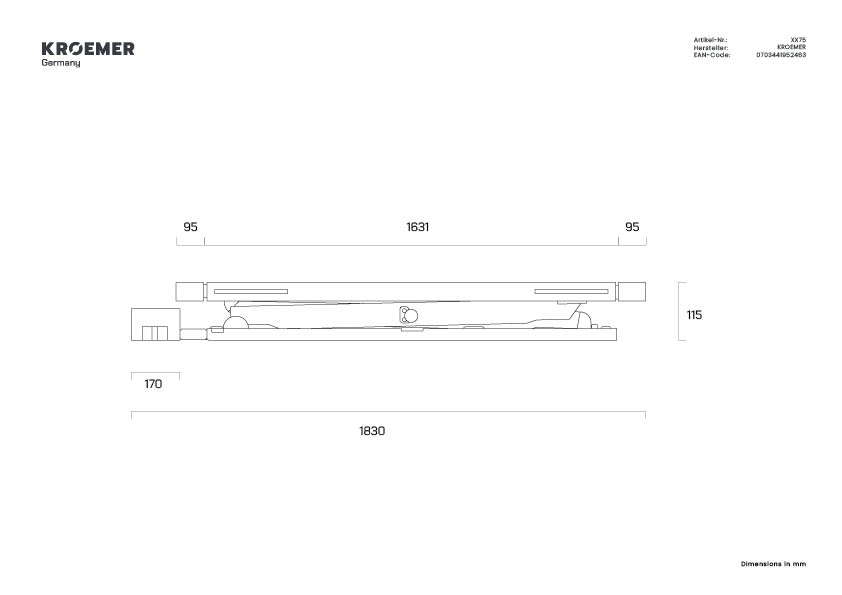

XX75 Technische Zeichnung - Seitenansicht 2

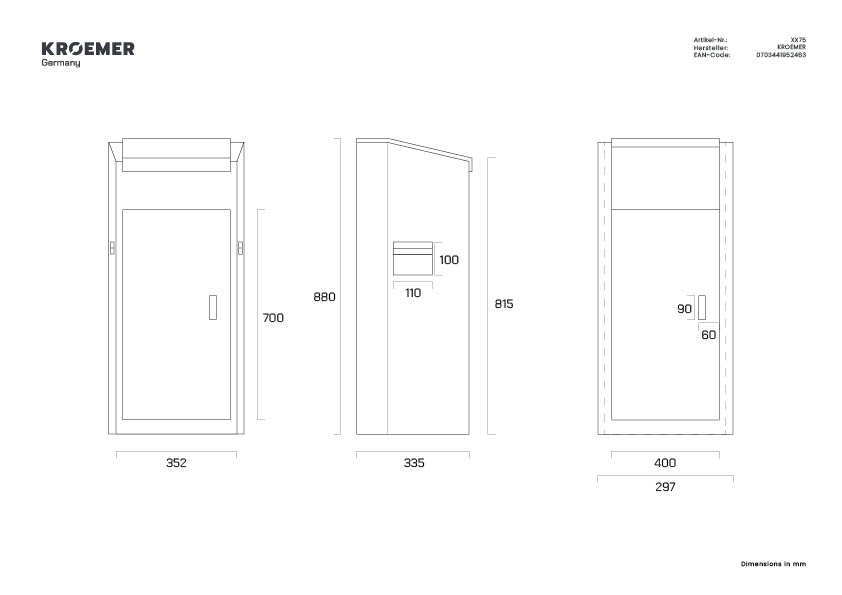

XX75 Technische Zeichnung - Bedienpult
Downloads

Downloads

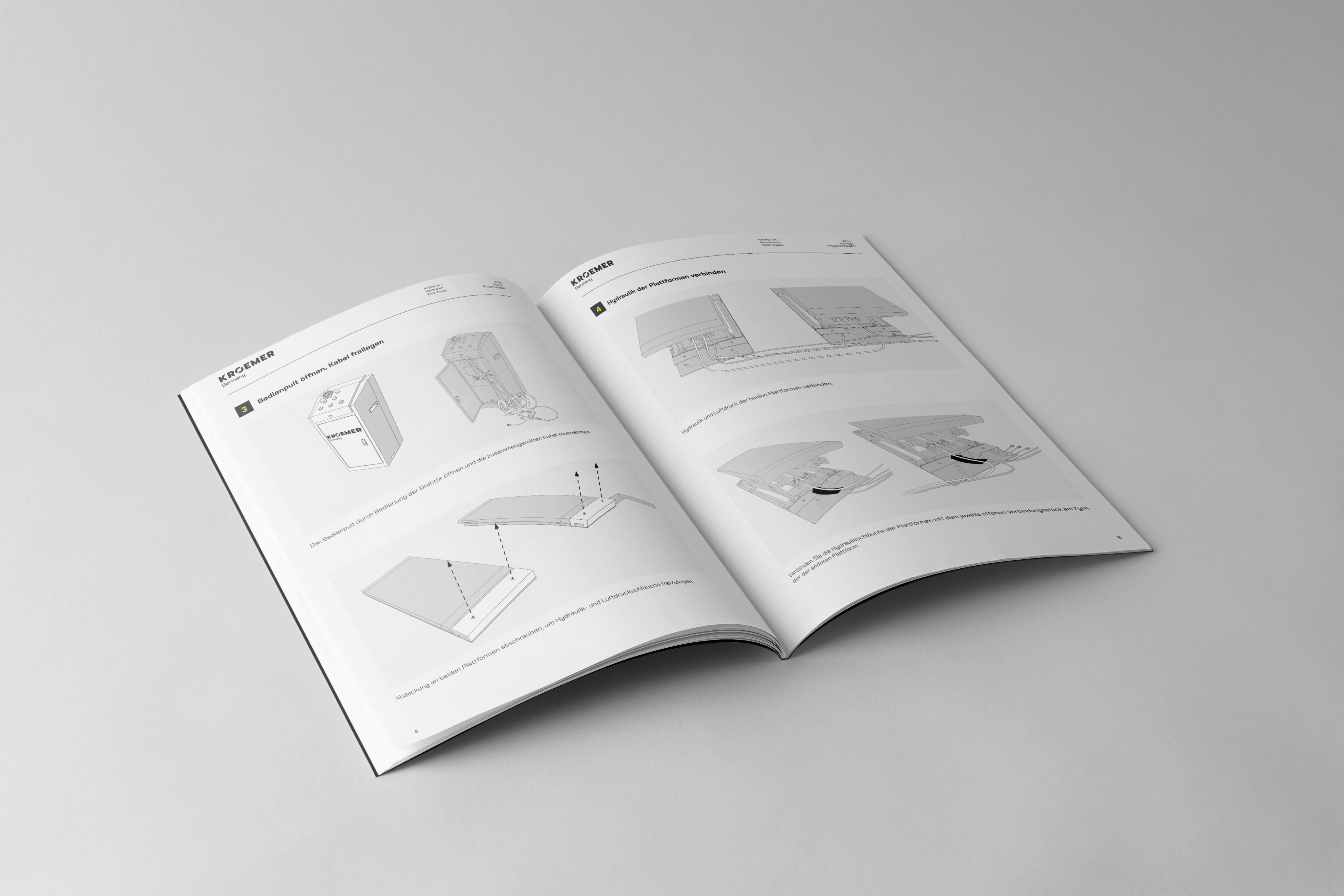

Downloads Tab
  • 1. Technische Zeichnung XX75
  • 2. Schaltplan XX75


Delivery Scope

Delivery Scope

No Express Delivery

Scope of Delivery

  • Overground vehicle double scissor lift "Lübeck" XX75
  • Electric motor 230V or 400V
  • Installation frames (2 pieces)
  • German operating manual and inspection log for UVV inspection available for download in our FAQs
  • Invoice with VAT shown.

Not included in the delivery

  • Hydraulic oil – optionally available in the online shop (filling volume: 20 liters)
  • Vehicle
  • CE plug – optionally available in the online shop

Unloading information

The metal transport frames attached around the lift serve as protective packaging and are part of the delivery packaging.

Despite the high-quality paint finish, minor scratches may occur during logistics handling, quality control, or assembly.

Below the description, you will find the accessories section with a wide range of products and services for the XX75.

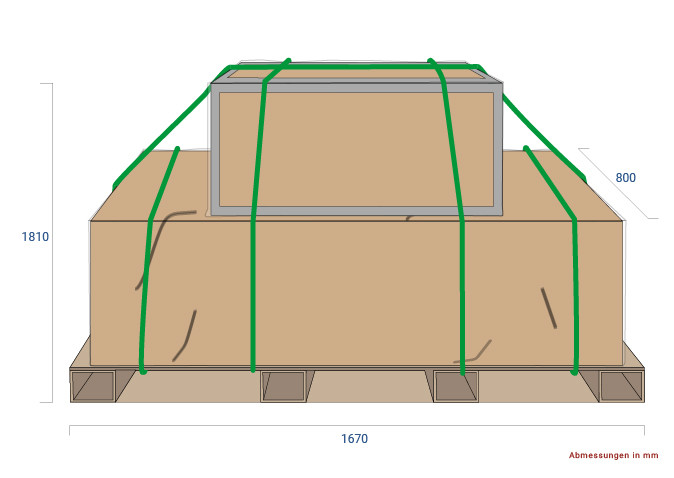

Packaging dimensions scissor lift XX75
