Achsfreiheber auf der Plattform - Scherenhebebühne

Underfloor Drive-On Scissor Lift (opt. Overfloor)

Pont élévateur XX84

PRO Underfloor Drive-On Scissor Lift - KROEMER XX84

Drive-on Scissor Lift Underfloor - KROEMER XX82

As low as £8,999.00

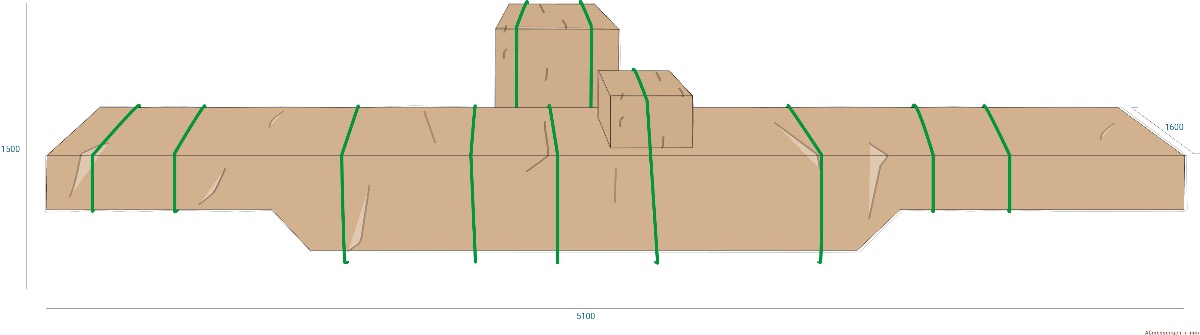

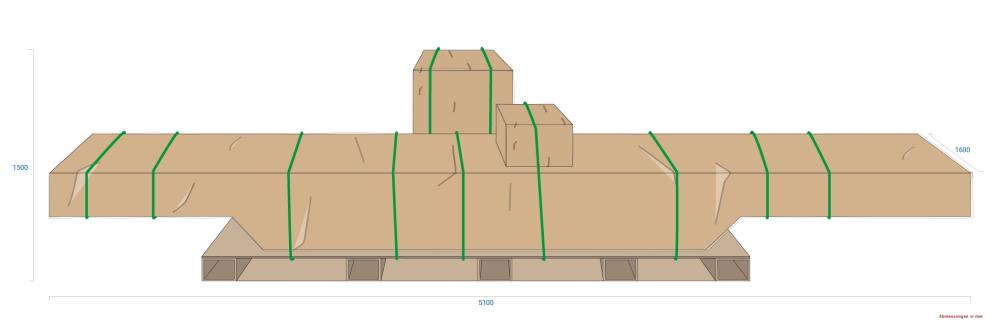

--- IMPORTANT NOTE ---  The customer must provide a forklift truck and straps for unloading.

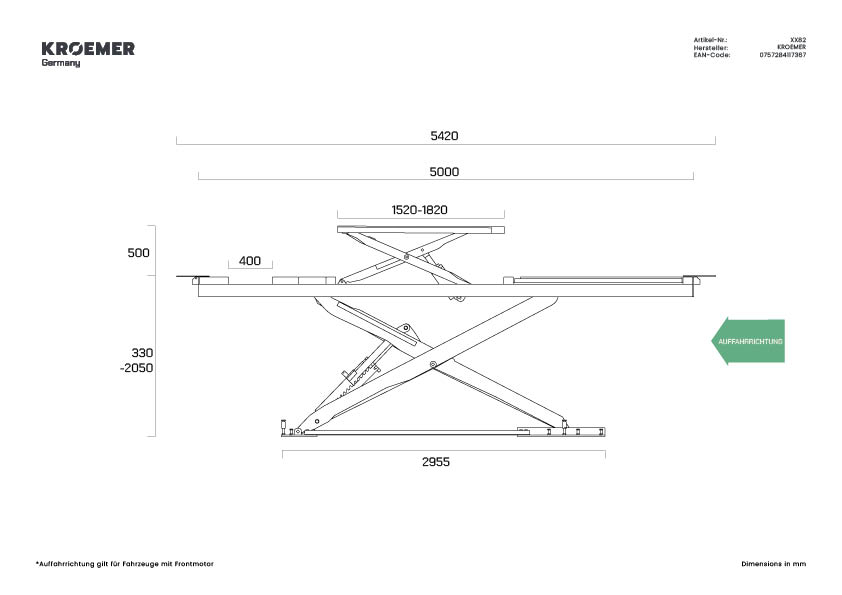

Lifting height up to 2050 mm
Wheel-free lift has an additional load capacity of 3.0 tonnes
Ground-level installation possible without excavation

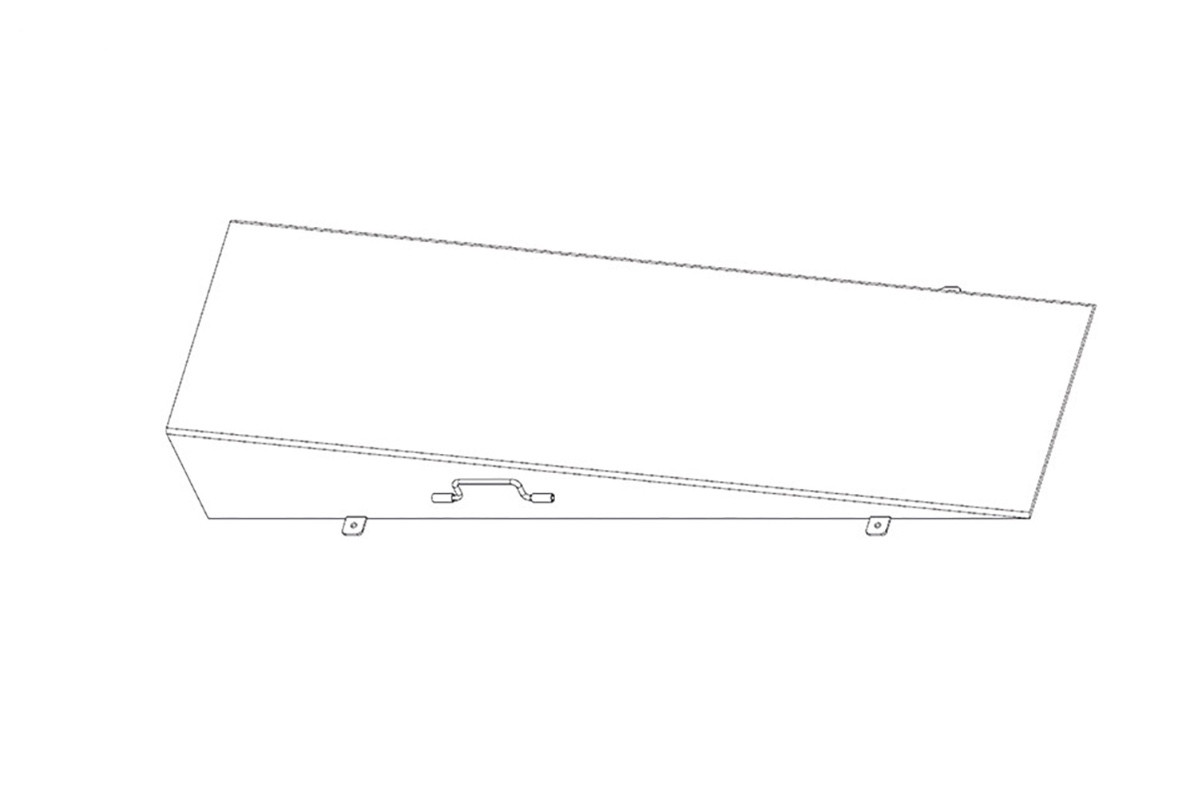

Optional ramps for use as an above-ground lift

If the platform is to be set up with an axle lift (SX007), a minimum distance of 900 mm between the platforms is required!

Availability: Out of stock
Only %1 left
More Information
Delivery Time 5-10 Business days
Shipping costs 1599 £
  • Built-in LED lighting beneath the platform

  • Underfloor installation with wheel-free lift

  • Suitable for all wheelbases

  • Integrated deflection aid

  • CE stop and acoustic signal when lowering (foot protection), acoustic lowering safety system, acoustic warning device

  • Foot protection in accordance with European Standard (EN)

  • Hydraulic equal control/regulation (cylinder sequence principle)

  • Automatic safety locking and unlocking – 10 bar air pressure required

  • Emergency lowering system in the event of a power failure

  • Hydraulic lock valves

  • Overload valve

  • Lowering safety devices

  • Motor power: 2.2 kW

  • Hydraulic pressure: 16 MPa

  • Galvanised bolts and screws

  • Wheel-free lift with lockable ramp flaps for a longer contact surface

  • Hose rupture protection

  • Platform with ramps and roll-off protection

  • Hose packages over 3,000 mm

  • First-class workmanship with CE certificate for UVV approval

  • Manufactured in accordance with ISO 9001

  • Nearly all pivot points and bearing parts fitted with grease nipples – therefore low wear

  • High-quality, durable electrics with plug system – no circuit boards

  • Double-walled compressed air cylinder for reduced wear

  • High-quality DUPONT powder coating

--- IMPORTANT NOTE ---
The customer must provide a forklift truck for unloading.

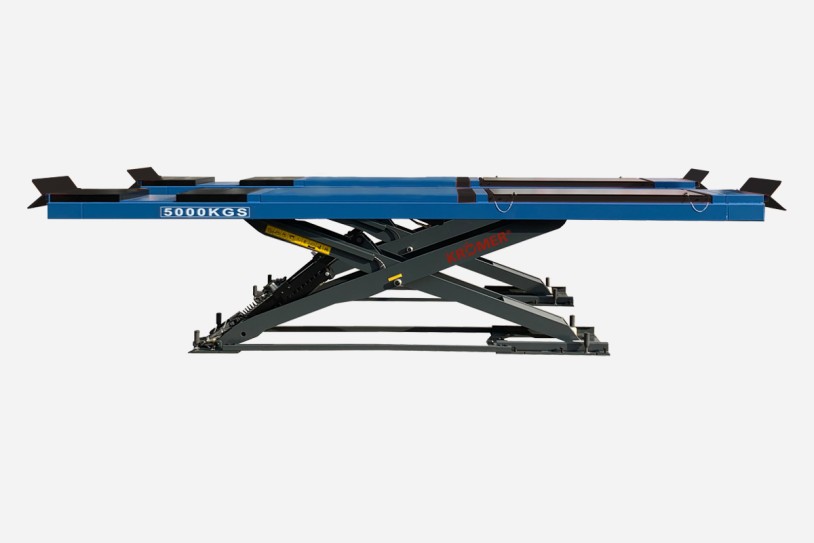

Are you looking for a drive-on scissor lift for underfloor installation? Stop searching! With an impressive maximum lifting height of 2.05 m (without wheel-free lift) and a lifting time of just 70 seconds, a Kroemer scissor lift is essential for almost all maintenance work on tyres and lower body components.

This professional Kroemer drive-on scissor lift is perfectly designed for underfloor installation. Of course, ground-level installation without excavation is also possible. With a lifting capacity of 5,000 kg, our XX82 model can easily handle virtually any type of vehicle.

The professional drive-on lift XX82 features a wheel-free lift and achieves a lifting height of 205 cm. The platform of the XX82 is additionally equipped with built-in LED lighting.

Does your vehicle have a longer wheelbase? No problem with Kroemer! Thanks to its extra-large platforms with an impressive length of 5 metres, the XX82 can lift even the largest vehicle bodies with ease.

The range of applications for our lifts is very wide due to the diversity of vehicle types and mounting points. Please note that the illustrated application icons are intended only as orientation aids and do not reflect the actual lifting capacity of our products. Kroemer Handelsgesellschaft mbH assumes no liability that all models within a vehicle class can be lifted.

The new drive-on scissor lift XX82 is also perfectly suited for wheel alignment. With its extra-long wheel-free lift (18,200 mm), working on the wheel axles becomes much easier. Cross-adjustable, lockable sliding plates complete the comprehensive Kroemer package. The XX82 also features standard guide rails for optional axle lifts, allowing for easy integration.

Say goodbye to paint scratches and poor workmanship! Your Kroemer scissor lift is coated with high-quality DUPONT® powder coating for maximum durability and a flawless finish.

All our products are covered by Allianz product liability and public liability insurance – a level of protection many competitors do not offer.

As the listed manufacturer of our lifts, Kroemer Handelsgesellschaft mbH naturally operates its own service workshop and training centre for customers.

The XX82 scissor lift has been tested and approved in accordance with the Machinery Directive, Annex IV, and is therefore equipped with CE certification from one of Europe’s leading testing agencies specialising exclusively in car lifts.

In addition to the standard CE requirements, both the lift and the control panel are individually tested for functionality prior to sale.

Note:
For initial operation, you will need a compressor (min. 10 bar) and hydraulic oil (25 litres, see operating manual). A forklift truck must be available for unloading. To ensure safe operation and avoid damage to vehicles or ceilings, the minimum room height must be 3.20–3.50 m for mid-rise scissor lifts, 4.20–4.50 m for double scissor lifts (Depending on vehicle type and lift height.)





More Information
SKU XX82
EAN-Code 0757284117367
Write Your Own Review
You're reviewing:Drive-on Scissor Lift Underfloor - KROEMER XX82
Your Rating
Kroemer scissor lift 4.0t underfloor with wheel-free lift
Denver XX82
Electric motor 230V or 400V hydraulic unit
English operating instructions and test book for UVV approval available for download

Not included in delivery:
Compressor – compressor with 8–10 bar required
Hydraulic oil not included – can be ordered as an option (fill quantity: 15 litres)
Axle jack SX007 – can be ordered as an option
Vehicle
