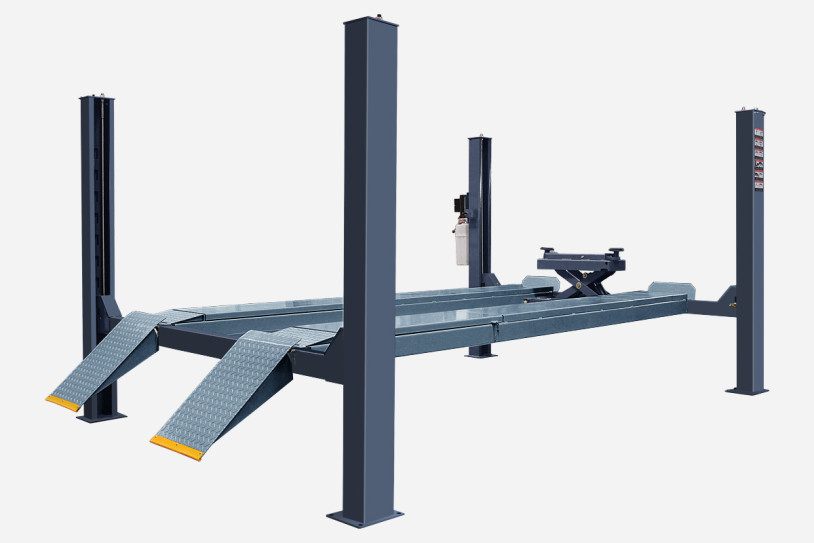

Kroemer FP44 4-post lift

Kroemer FP44 4-Post Lift – 3,500 kg Lifting Capacity, 1,933 mm Lifting Height and Optional Axle Jack

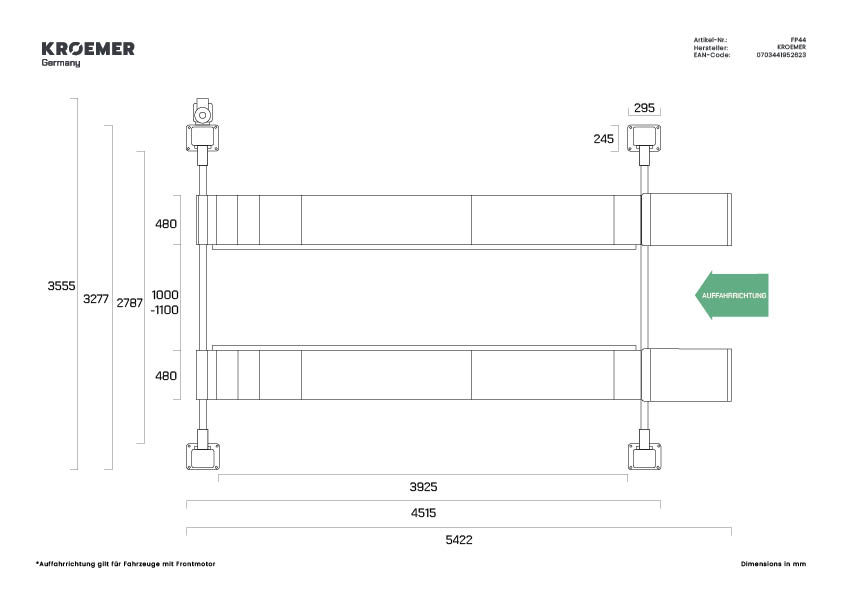

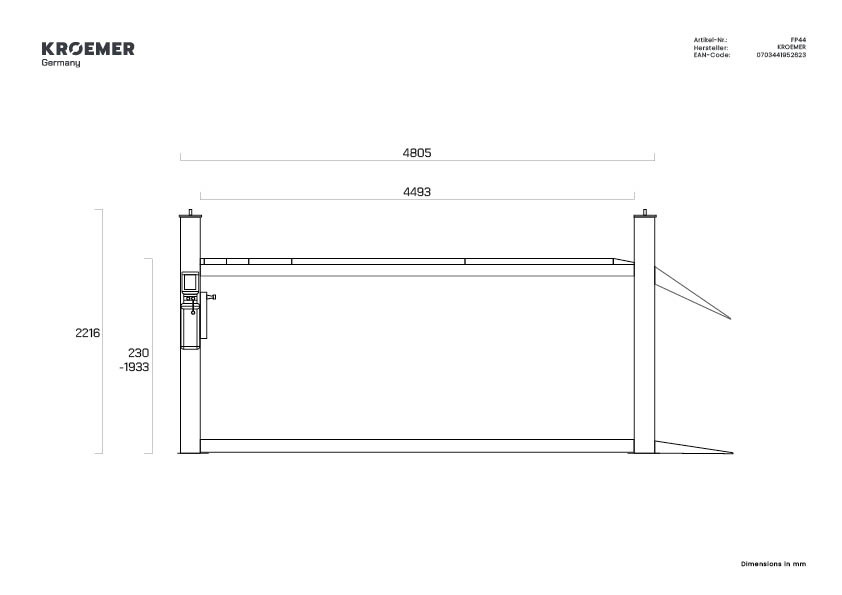

• Lifting height: 1,933 mm
• Total length including drive-on ramps: 5,422 mm
• Total width: 3,555 mm
• Platform length: 4,300 mm
• Runway (L/W): 3,925 mm / 480 mm

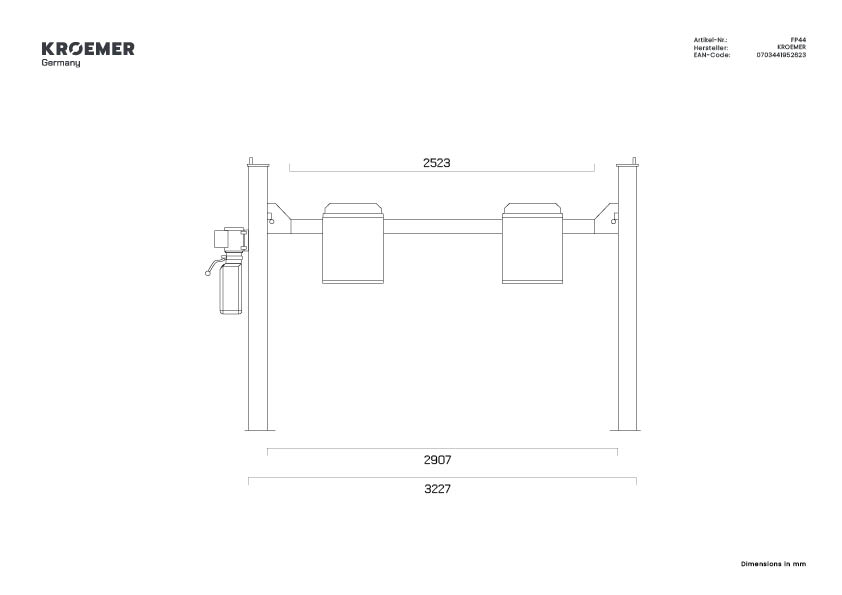

• Distance between the columns: 4,030 mm / 2,907 mm
• Lifting time: 50 sec.
• Built in accordance with CE certification
• ISO 9001
• CE stop and acoustic warning signal during the final lowering phase
• Optional: axle jack can be integrated – for even greater flexibility when working on suspension, brakes and wheel alignment*.

--- IMPORTANT NOTICE --- A forklift must be provided by the customer for unloading

The Kroemer FP44 4-post lift is designed for workshop environments requiring a stable and clearly structured lifting solution for vehicle inspection, wheel alignment*, repairs or headlight adjustment. With a lifting capacity of 3,500 kg and a lifting height of 1,933 mm, the model provides a solid basis for everyday workshop use.

The equipment includes a CE stop and an acoustic warning signal during the final lowering phase. An axle jack is also available as an option, making the lift particularly suitable for applications where further work is required in addition to simply raising the vehicle.

According to the product information, the model is manufactured in accordance with ISO 9001 and with reference to CE conformity.

The Kroemer FP44 4-post lift is therefore suitable for businesses looking for a classic 4-post solution with a clearly defined range of applications. Its combination of robust construction, practical dimensions and optional axle jack makes it a suitable solution for structured workshop processes.

DIN HLP 46 hydraulic oil is required for initial commissioning (12 litres required). Before operation, the operating instructions, concrete foundation plan and operating and maintenance manual must be read carefully.

Electrical work must only be carried out by appropriately authorised qualified personnel.

This model features semi-automatic unlocking.
For a model with fully automatic unlocking, we recommend the FP45 4.5 t lift, available for an additional €200 with the same power connection.

Our customer service advisers will be happy to assist you before purchase and help you select the right lift for your requirements.

*Suitable for KROEMER 3D wheel alignment. For third-party diagnostic equipment, please enquire in writing before purchase. Levelling after installation is mandatory.

Not eligible for express shipping

Included in the scope of delivery:

• Kroemer FP44 4-post lift
• 230 V or 400 V electric motor with hydraulic unit
• German operating instructions and inspection logbook for the UVV inspection, available as a download in our FAQs or via the instruction and inspection manual link
• Heavy-duty anchors (12 pieces)
• Mobile chassis

Not included in the scope of delivery:

• Oil – can be ordered optionally (filling quantity: 15 litres)
• Vehicle
• Axle jack

Below the description, you will find the accessories section with a wide range of products and services for the FP44.

Information regarding unloading

Despite the high-quality paint finish, scratches may occur during transport, quality control and installation of the lift.
