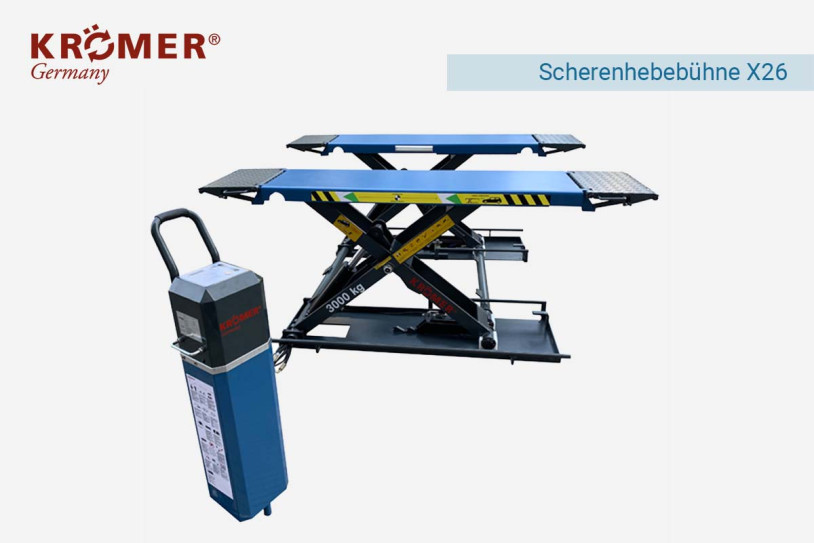

Hydraulic and mobile scissor Lift "Liverpool" for car enthusiasts. -New Model 2021 mobile kit

Specialities of the Scissor lift "Liverpool" X26

• full automatic Lifting and lowering per button click.
• Top processing quality with CE marking for APR acceptance
• Production according to ISO 9001
• The lifting height is 1.000 mm
• Double line system for symmetrical distribution of the pressure
• Bolts and screws are galvanized
• Emergency lowering system in case of power failure*
• Low demands on the set-up: Floor requirement only 150mm of good quality concrete min. C20/25 DIN1045:2001-D7 (armored)
• Dead man's control (24V-Low voltage)
• Automatic unlocking of the security system
• Automatically engaging safety latches
• Exceptionally low drive-over height (105 mm)
•  high-quality industrial paint with a scratch-resistant surface treatment
• Powerfull electrical engine in hydraulic oil with IP 54 control unit
• high-quality, chromed Krömer hydraulic cylinders
• Anti-lowering device
• Low-wear of the scissor joints
• Mechanical synchronisation control
• lockable ramps, resilient
  till 1.6 tons for each ramp (4x ramps)
• two powerful, chrome-plated hydraulic cylinders
• Foot trap protection
• Swivel joints and bearings (extreme wear with grease nipples and brass sockets)
• Low-wear of the scissor joints
• electronic lifting limitation by limit switch
• minimal floor requirements
• little place need
• absolute space freedom because there are no pillars
• Spare parts supply secured for a long time
• Multiple safety devices through hose rupture protection, overload valve, mechanical safety latches

A royalty among other scissor lifts! The perfect lift for the businesses! Loud Compressor is not needed!

With a maximum lifting height of over one meter, the mid rise scissor lift X26 "Liverpool" can be used for almost all maintenance work on tires, lower body parts and vehicle tuning. The maximum load capacity is 3.00 t.

This model is used in 1000 different workshops for all types work with cars.The Synchrony both of these platforms of this scissor lift is guaranteed due to weight of 600 kg and the basic construction, even under extreme loads!

No air compressor is required to operate this Krömer scissor lift "Liverpool"! The electromagnetic lock is controlled automatically during lifting and/or lowering.

Especially amazing about this lift is the unbelievably low drive over height of 105 mm . The Krömer scissor lift is also available with a mobile chassis (mobile kit) at no extra charge, with which you can easily move your lift in the garage and / or rotate around 360 ° on the spot.

A limit switch is also installed: This switch acts as overpressure protection and prevents damage to the construction.

We as Krömer-team are controlling that our chrome-plated hydraulic cylinders have top notch quality , which is reflected in the lower susceptibility to errors and the reduced maintenance intensity. If any kind of errors occur in your lift, we always have the right spare part ready for you. The spare part can be easily found here.

In addition to the mobile lift from Krömer, our newly designed and revised mobile unit! The modern, space-saving and closed metal limit switch impresses with its low-noise operation! Because the newly designed motor is completely immersed in an oil bath, it is extremely quiet! Easy on the ears and nerves during daily use. Besides, the resulting heat can be given off constantly even in continuous operation. Another highlight of the control panel is the standard industrial control. The electrical system of the Krömer control panel consists of only 3 main components; Mircocomputer control, circuit board and motor contactor. These standardized assemblies (Conrad Electronics modular principle) can easily be exchanged even years later thanks to the new plug-and-play modular design, without time-consuming troubleshooting. For the user, this is an huge advantage in operating safety. We will be happy to provide you with a 10-year guarantee on these assemblies for a small surcharge.

Krömer Handelsgesellschaft mbH (as a listed manufacturer) of course also has a service workshop with a training center for our customers!

For the first start-up you need 15 liters of HLP46 hydraulic oil (see operating instructions).

Unfortunately, this model is not designed for SUVs and other vehicles with a wheelbase above 3000 mm such as T4-T6 (Bully), Vito, Viano, V-Class, pickups or larger. We advise all customers with this type of vehicle to use the "Aachen" model (check the manual and center of gravity / Center of Gravity). **

* An additional hand pump is required to release the lift from the safety catch

** The dimensions of the lift can be found in the pictures.

Shipping and Unloading:

You do not need a forklift, loading ramp or anything else. The lift will be unloaded for you by the shipping company. You will be informed by telephone about your upcoming delivery 1 day in advance (Tel.-Avis).

Tip!

For problem-free operation of the scissor lift and to avoid vehicle damage, there must be a room height of at least 3.20 m or 3.50 m for mid-rise scissor lifts (depending on the vehicle ). Please refer to the manual for the dimensions of the lift.
