FP580 equalisation cable 11,773 mm for Kroemer FP42

Long 11,773 mm equalisation cable for Kroemer FP42 4-post lift – FP580

The FP580 equalisation cable is a suitable spare part for the Kroemer FP42 4-post lift. It supports the even guidance of the runways and contributes to reliable force transmission during lifting and lowering.

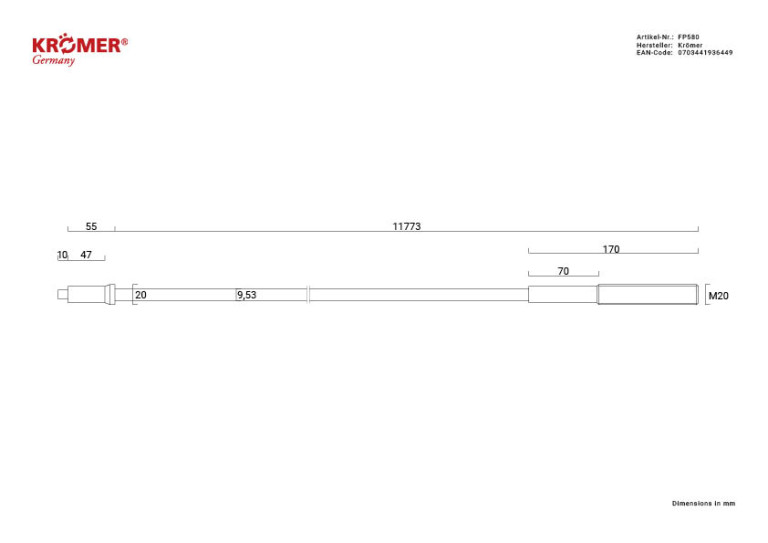

The Kroemer FP42 uses equalisation cables in four different lengths. These are classified as short, medium, long and extra-long equalisation cables. This item is the long equalisation cable with an overall length of 11,773 mm and a cable diameter of 9.53 mm.

The steel cable is designed to withstand the regular mechanical loads encountered during workshop operation. Wear, corrosion, broken individual wires or visible deformation may impair the cable routing and the even movement of the lift. Timely replacement of the affected equalisation cable supports the reliable operation and professional repair of the FP42.

The other equalisation cables for the Kroemer FP42 in short, medium and extra-long versions can be found below this product description in the Accessories section. The corresponding cable lengths are linked there as separate spare parts.

Product features

• Long equalisation cable for the Kroemer FP42 4-post lift
• One of four equalisation cables of different lengths
• Version: long
• Supports the even movement of the runways
• Provides reliable force transmission within the cable routing
• Robust and corrosion-resistant steel cable

Technical specifications

• Item number: FP580
• Product type: equalisation cable
• Compatible model: Kroemer FP42
• Version: long equalisation cable
• Length: 11,773 mm
• Cable diameter: 9.53 mm
• EAN: 0703441936449

Scope of delivery

1 FP580 equalisation cable – version: long
Length: 11,773 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalisation cable. As four equalisation cables of different lengths are available for the FP42, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or identification marking is located at both ends of the equalisation cable. This provides information about the correct version and generally also includes the cable length, often at the end of the marking. Compare this information with the existing cable to clearly identify the required spare part.

The short, medium and extra-long equalisation cables for the FP42 can be found below the description in the Accessories section.

Replacement, tensioning and adjustment of the equalisation cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, the cable routing, fastenings, cable tension and even lifting movement must be checked carefully.
