FP579 equalisation cable 8,682 mm for Kroemer FP42

Medium-length equalisation cable for Kroemer FP42 4-post lift – FP579

The FP579 equalisation cable is a suitable spare part for the Kroemer FP42 4-post lift. It is routed through the designated cable guide and supports the even movement of the runways when raising and lowering the lift.

The Kroemer FP42 is fitted with a total of four equalisation cables of different lengths. These are classified according to their length as short, medium, long and extra-long. This item is the medium-length equalisation cable with an overall length of 8,682 mm.

During regular operation, the equalisation cable is continuously exposed to mechanical loads. Corrosion, damaged individual wires, deformation or other signs of wear may impair reliable cable routing and the even movement of the lift. Timely replacement of the affected steel cable supports the professional repair and reliable operation of the FP42.

The equalisation cable has a diameter of 9.53 mm and is supplied individually. The other equalisation cables for the Kroemer FP42 in short, long and extra-long versions can be found below this product description in the Accessories section. The corresponding cable lengths are linked there as separate spare parts.

Product features

• Medium-length equalisation cable for the Kroemer FP42 4-post lift
• One of four equalisation cables of different lengths
• Version: medium length
• Supports the even movement of the runways
• Robust steel cable for regular workshop use
• Suitable for the professional repair of the cable routing

Technical specifications

• Item number: FP579
• Compatible model: Kroemer FP42
• Version: medium-length equalisation cable

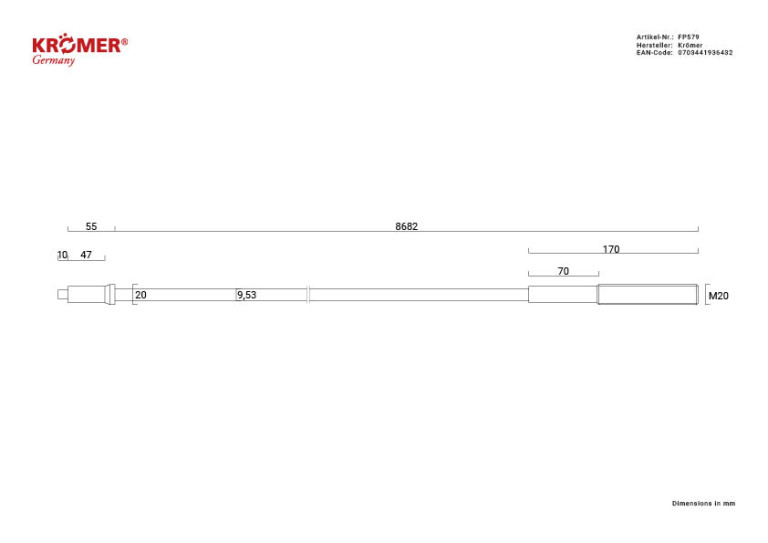

• Length: 8,682 mm
• Cable diameter: 9.53 mm
• EAN: 0703441936432

Scope of delivery

1 FP579 equalisation cable – version: medium length
Length: 8,682 mm

Important application note

Before ordering, carefully check the lift model, item number and length of the existing equalisation cable. As the FP42 is fitted with four equalisation cables of different lengths, the short, medium, long and extra-long versions must not be confused with one another.

A serial number or identification marking is located at both ends of the equalisation cable. This provides information about the cable version and generally also includes the length, often at the end of the marking. Compare this information with the existing equalisation cable to clearly identify the correct spare part.

The short, long and extra-long equalisation cables for the FP42 can be found below the product description in the Accessories section.

Replacement, tensioning and adjustment of the equalisation cable must only be carried out by qualified personnel when the lift is fully lowered, switched off and secured against unintentional activation. After installation, the cable routing, fastenings, cable tension and even lifting movement must be checked carefully.
