Vehicle 2 Post 4.0 "Berlin" Lift electromagnetic - barrier free

Full rise scissor lift 3.5t "Dublin"

Besonderheiten der Scherenhebebühne „Halle EXTREM“

  • Radstand größer als 3 Meter (Multivan-fähig)
  • Akustischer Warngeber (Fußschutz)
  • Eingebaute Umlenkhilfe
  • Bedienpult mit Klappsicherungen statt Glassicherungen
  • Eingebautes LED-Licht und Umlenkhilfe
  • Hochwertige und massive Konstruktion
  • 2.140 mm Hubhöhe für bequemes Arbeiten (bei Überflur-Einbau)
  • 1.850 mm bei Unterflureinbau
  • Tragkraft bis 3.500 kg
  • zum Entriegeln wird ein Kompressor mit 8-10 bar benötigt
Availability: Out of stock
Only %1 left
More Information
Delivery Time 5-10 Business days
Shipping Cost 199

Special features of „Dublin“

  • 1A processing quality with CE certificate for APR acceptance
  • Production according to ISO 9001
  • 4-fold extendable vehicle mounts
  • Lockable drive-on ramps can each be loaded with 800 kg per side
  • Powerful aluminum electric motor with IP 54 control unit + aluminum hydraulic engine + oil tank from metal
  • Two powerful hydraulic cylinders
  • Signal tone and CE-Stop during the lowering to prevent crushing in the foot area (foot trapping protection)
  • Overload protection by means of a pressure relief valve
  • Safety latch system with pneumatically unlockable mechanical safety latch to prevent the lift from being lowered unintentionally
  • Bolts and screws are hot-dip galvanized
  • High-quality powder coating with powder coating from DUPONT

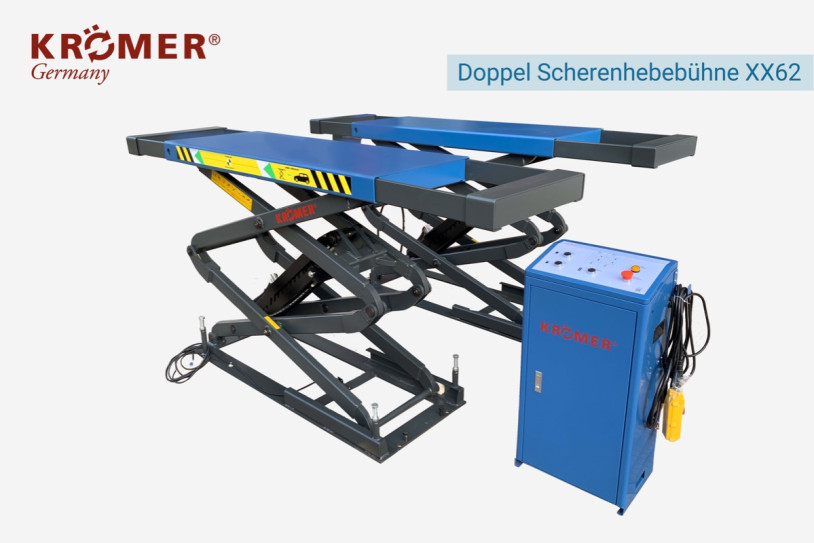

With a maximum lifting height of 1850 mm and a lifting time of a rapid 50 seconds, a full rise scissor lift from Krömer is simply a must for almost all maintenance work on tires and lower body parts. Especially in the commercial work area such as in workshops or tire services, there are special requirements for lifting platforms . We at Krömer have recognized this and therefore offer you our specially adapted full length scissor lift. Ambitious hobbyists also trust the XX62 because it can be installed completely at ground level (for 0 mm drive-over height).

With the extendable ramps, the XX62 "Halle EXTREME" scissor lift is particularly suitable for cars with a longer wheelbase as well as SUVs and Minivans with a normal wheelbase. The platform can be extended even further on the XX62 than on the XX60 and XX61. Remote control can be purchased optionally if desired.

Your car has a longer wheelbase? That is not a problem for Kromer and our products! Due to its 4x extendable, extra large (2,435 x 540 mm) drive-on ramps, your new full rise scissor lift is extremely flexible. With it, even the Porsche of your most demanding customer will be raised in a matter of seconds. With a new upgrade of the mobile scissors, this lift is also ideally suited for SUV areas.

Our engineers have designed this full rise scissor lift especially for long running times.Grease nipples were installed on almost all moving joints. One of the most common sources of failure in scissor lifts is corroded air cylinders. Krömer products therefore have an oiler as standard, which is used to remove water from the compressed air circuit. Another weak point of the the other scissor lifts are leaking hydraulic cylinders.At Kromer you can purchase 2-walled air cylinders. This lowers the platform's susceptibility to errors and at the same time reduces the maintenance intensity.

Low-noise operation also due to the motor! Since the newly designed engine is completely immersed in oil, it is extremely quiet! Easy on the ears with daily use.

No more paint scratches and poor processing! Your new professional scissor lift from Krömer is coated with excellently finished, powder-coated DUPONT® paint.

At Krömer, we don't have our hard-chromed hydraulic cylinders manufactured in a backyard workshop, which is reflected in the lower susceptibility to errors and the reduced maintenance intensity. If something should stop working, we always have the right spare part ready for you. You can order it on our website

We have Allianz product liability insurance and commercial liability insurance on our products! - Unfortunately most of our competition do not have a conctract with a such well known insurance company, which demonstarates their care for their customers!





For trouble-free operation of the lift and to avoid vehicle/ceiling damage, a room height of at least 3.20 m or 3.50 m for short-stroke scissor lifts and 4.20 m or 4.50 m for double scissor lifts (depending on the vehicle and lifting height of the lifting platform). The dimensions of the lifting platform can be found in the technical drawing.
More Information
SKU XX62
EAN-Code 0757284117336
Write Your Own Review
You're reviewing:Full rise scissor lift 3.5t "Dublin"
Your Rating

Krömer professional full length scissor lift in ground lift 3.5t "Dublin" XX62
Electric engine 230V or 400V hydraulic unit
German installation manual und Test book for the APR in download section

Not part of the delivery:
Compressor - Compressor with 8-10 bar is required
Hydraulic oil - can be ordered if desired (Oil tank: 15 liters)
Vehicle
