Mobile Scissor Lift For Beginners - KROEMER X10

X10 KROEMER

Easy Handling and Maximum Flexibility

• The classic among scissor lifts – 20 years of top-notch workmanship
• No travelling connecting rod
• Drive-over height only 105 mm
• Deflection aid/auxiliary arm or deflection mechanism for lowered cars
• Emergency lowering function in the event of a power failure
• Modern, space-saving, splash-proof and self-contained control panel
• Easy installation of the lift, as 80% is already pre-assembled
• Lowering safety device
• Hose length from lift to control unit = 2.5 metres
• No compressed air required – no compressor necessary
• Lockable ramps (flaps) for a longer lifting surface

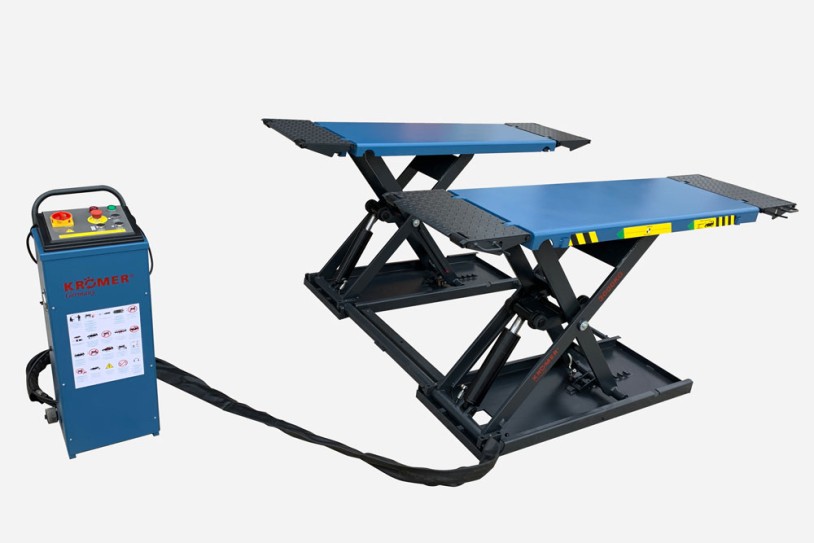

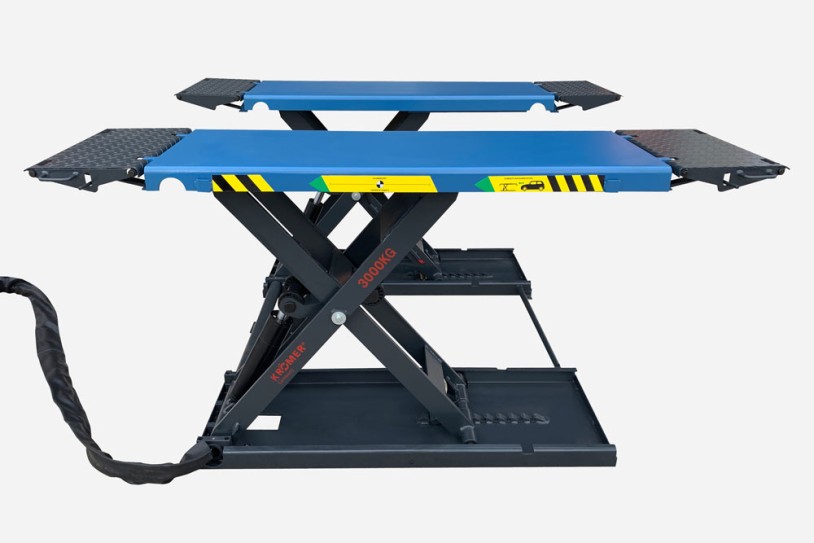

With a load capacity of 3000 kg, this platform offers a space-saving solution for your workshop. Without any annoying connecting rods and with fully automatic operation at the touch of a button, it is easy and efficient to use. Thanks to its low lifting height of 1000 mm and minimal floor space requirements, it is extremely versatile. Safety features such as automatic unlocking and durable construction in accordance with ISO 9001 guarantee reliable operation. The scratch-resistant powder coating and two hard chrome-plated hydraulic cylinders ensure long-lasting quality. An ideal choice for any workshop or garage.

High Safety and Performance
The platform operates quietly thanks to a high-quality aluminium motor. An integrated limit switch ensures precise electronic lift limitation. Multiple safety features—such as hose rupture protection and an overload valve—provide secure and reliable operation. Additionally, the scissor lift is designed without a travelling connecting rod, allowing for greater accessibility and ease of use.

Electromagnetic Safety Functions
The X10 scissor lift features an electromagnetic locking and unlocking safety system, as well as an emergency lowering function in the event of a power failure. The dead man's control ensures that the lift stops immediately when the control buttons are released. A splash-proof, self-contained control panel adds further protection and reliability during operation.

Easy Installation and Operation
The system arrives 80% pre-assembled for fast and simple installation. The hose from the lift to the control unit measures 2.5 metres, offering flexible setup options. The 24 V / IP54-rated control unit is user-friendly and includes two limit switches (CE Stop) for added safety compliance.

Additional Notes
The X10 and X11 models are structurally identical and differ only in colour.
Important: Before purchasing, please consider the maximum lifting height of the X10 (plus 300 mm) and ensure that the ceiling height of your garage is sufficient for your vehicle. Kroemer GmbH accepts no liability for damage to vehicle roofs caused by user error or technical faults in the lift.
