Full Rise Scissor Lift "New York" Galvanized

Special features of „New York“ XX72

• High-quality powder coating with powder coating from DUPONT
• 1A processing quality with CE certificate for APR
• Production according to ISO 9001
• a compressor with 8-10 bar is required to unlock
• High quality and solid construction
• 4-fold extendable vehicle mounts
• Lockable drive-on ramps can each be loaded with 800 kg per side
• Powerful aluminum electric motor with IP 54 control unit + aluminum hydraulic motor + metal oil tank
• Two powerful hydraulic cylinders
• Signal tone and CE-Stop when lowering to prevent crushing in the foot area (foot trapping protection)
• Overload protection by means of a pressure relief valve
• Safety locking system with pneumatically unlockable mechanical safety latch to prevent the lift from being lowered unintentionally

XX72 "New York" is particularly resistant due to its complete galvanization. The XX72 professional double scissor lift is particularly suitable for a sunken structure. A comfortable way of working is given thanks to a lifting height of 190 cm. In addition, the "Erfurt galvanized" double scissor lift can withstand up to 3,000 kg. Thus, the XX72 is able to lift SUVs.

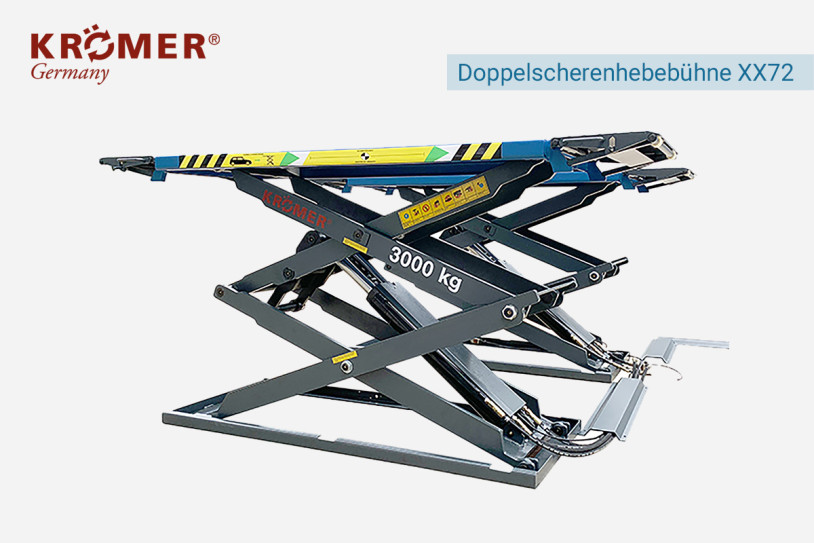

Your car has a longer wheelbase? No problem for Kromer! Due to its 4x extra large ramps of 2100 mm, your new professional scissor lift is extremely flexible. With it, even the Porsche of your most demanding customer will be lifted in a matter of seconds.

Our engineers have designed this full length scissor lift especially for long running times. One of the most common sources of failure in scissor lifts is corroded air lift cylinders. Krömer products therefore have an oiler as standard, which is used to remove water from the compressed air circuit. Another weak point of conventional platforms are leaking hydraulic cylinders. At Krömer you can get our special double-wall compressed air cylinder as an option. This lowers the platform's susceptibility to errors and at the same time reduces the maintenance intensity.

Low-noise operation also due to the motor! Since the newly designed engine is completely immersed in oil, it is extremely quiet! Easy on the ears with daily use.

No more paint scratches and poor processing! Your new professional scissor lift from Krömer is coated with excellently finished, powder-coated DUPONT® paint.

At Krömer, we don't have our hard chrome-plated hydraulic cylinders manufactured in a backyard workshop, which is reflected in the lower susceptibility to errors and the lower maintenance intensity.

Krömer Full Rise Scissor Lift "New York" XX72-galvanized
Electric motor 230V or 400V hydraulic unit
German operating instructions and test book for APR acceptance as a download

Not included in the delivery:
Compressor - Compressor with 8-10 bar is required
Hydraulic oil not included - can be ordered as an option (capacity: 15 liters)
vehicle

,hkd_Accessible=Body repair, opt. Remote control,,hkd_delivery_time=5-10 Business Days,hkd_Elektroanschluss=230 or 380/50 (V/Hz.) 16 A CEE (C2),hkd_lieferumfang=Krömer Full Rise Scissor Lift "New York" XX72-galvanized Electric motor 230V or 400V hydraulic unit German operating instructions and test book for APR acceptance as a download Not included in the delivery: Compressor - Compressor with 8-10 bar is required Hydraulic oil not included - can be ordered as an option (capacity: 15 liters) vehicle,hkd_Netztspannung=Dead Man's switch (24V low voltage),hkd_Tragkraft=Lifting capacity: 3000 kg,hkd_Unlocking=Suitable for outdoor use, industrial control
