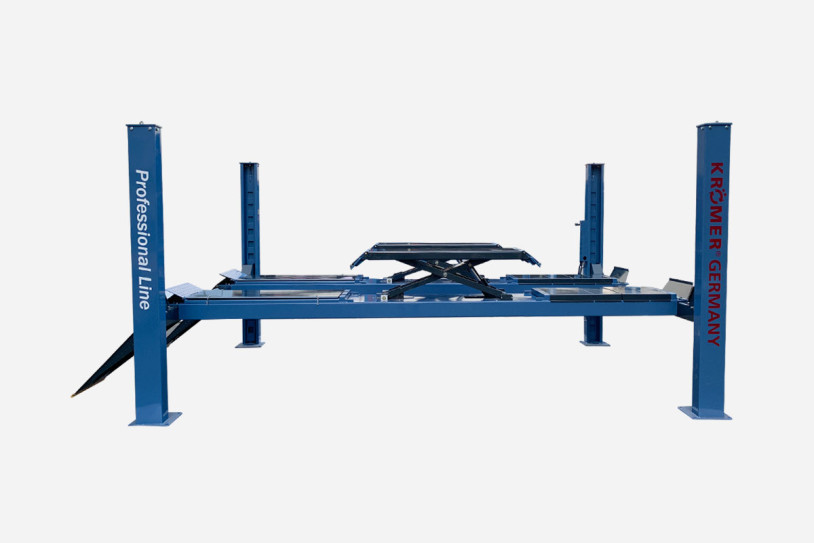

Four Post Lift "Auckland" Car Lift with Wheel-Free Jack

Special features of "Auckland"

• 1A processing quality, with CE certificate for APR acceptance

• Production according to ISO 9001

• Maximum lifting height 1850 mm

• High-quality and solid construction (weight 1660 kg)

• Ride Height (217mm)

• Safety lock and descent latches

• Safety locking system with pneumatically unlockable mechanical safety latch to prevent the lift from being lowered unintentionally

• Powder-coated finish, with a scratch-resistant surface

• Automatic rope breakage protection and slack rope

• Operation via button circuit with dead man switch

• Mechanical safety catches

• Powder-coated finish, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Hydraulic cylinder under the runway promises powerful lifting

• Hydraulic overload valve

--- Important Notice --- The customer must have a forklift during the unloading

The 4-post lift FP43 "Auckland" has a maximum load capacity of 4,000 kg. The platform is ideal for lifting vehicles with a long wheelbase (platform length: 4.7m). Among other things, the FP43 can also be used for wheel alignment, repairs, headlight adjustment.

With a maximum lifting height of 1.85m, a powerful 24V control unit and heavy-duty ramps, a 4-post lift from Krömer is simply a must for almost all maintenance work on tires and lower body parts!

The FP43 lifting platform is made of high-precision manufacturing. In addition, our 4-post lift is characterized by durable technology and robust components. The platform is ideal for lifting vehicles with a long wheelbase (platform length: 4.7m).

In addition, it has a built-in, high-quality wheel-free jack (lifting capacity 3.0t each). Access to the underbody of your vehicle is excellent thanks to the movable rails! Due to the low drive-on height (127 mm), you can easily drive onto the rails with your sports car!

No swiveling of support arms under the vehicle. Just drive up and repair! Lift and lower the 4-post lift FP43 "Auckland" easily at the touch of a button!

Due to the built-in recesses for rotating plates at the front and the already built-in oscillating plates at the rear, the Krömer 4 column is ideally suited for wheel alignments and/or also as a headlight parking space thanks to the precisely levelable perforated system of the rails for aligning and driving up the load. This guarantees high functionality

Optionally available are 4 plastic drip pans PLUS an oil pan made of metal. Krömer ensures that nothing goes wrong in the future.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Auckland" - FP43 has been tested in accordance with the Machinery Directive in accordance with Appendix IV with a type examination and was therefore manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! Sadly, this is not the case for most of our competition, that displays their attitude toward the customer

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required).

Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel. The assembly must be carried out by a specialist with several years of experience in the field of lifting platforms.

* additional hand pump is required to release the lift from the safety catch

Krömer 4-post lift FP43
Electric motor 230V or 400V hydraulic unit
wheel-free jack
English user manual in the downloads
Heavy-duty anchor (12 pieces)

Not included in delivery:
Oil - (required capacity: 15 liters)
vehicle
optional axle free jack
