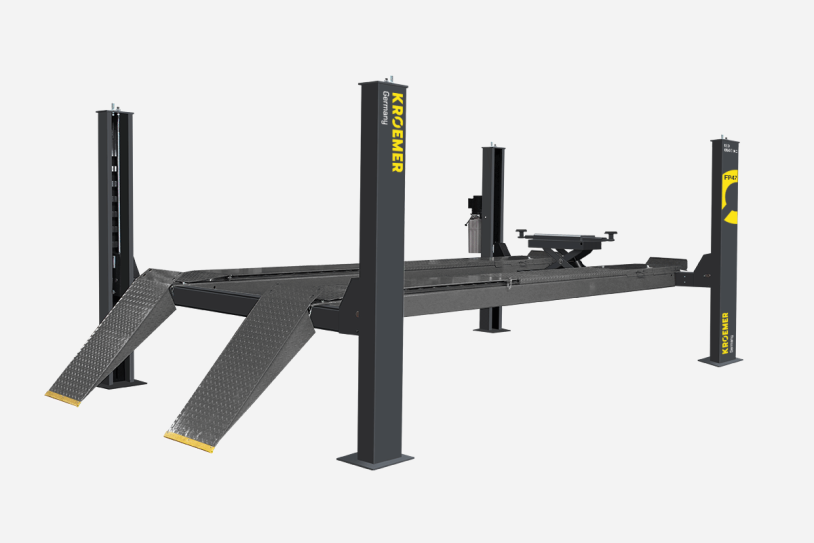

4-Post Lift Kroemer FP47

• Lifting height: 1950 mm
• Load capacity: 6.5 tonnes
• Driving surface (L/W): 5429 mm x 508 mm
• Total lifting time: 50 seconds

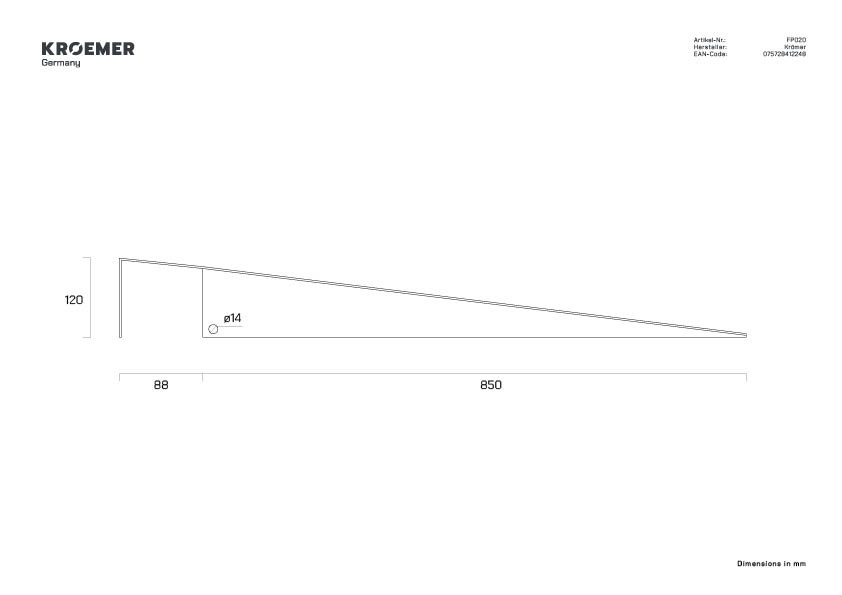

• Heavy-duty access ramps
• Built-in vibrating plates at the rear
• Fixed roll-off protection at the front, mobile protection at the rear
• Safety locking system: Unlocking via compressed air at 9–10 bar (compressor required)
• Deadman’s switch
• Robust safety locking system to prevent accidental lowering of the lift
• 80% of all major components are pre-installed
• First-class build quality, with CE certificate for UVV approval
• Manufactured to ISO 9001
• Audible signal and CE stop during lowering to prevent crushing in the foot area (foot entrapment protection)
• Powder-coated finish, with a scratch-resistant surface
• Cable break protection and slack cable
• Powerful hydraulic cylinder beneath the driving surface ensures powerful lifting
• Hydraulic overload valve

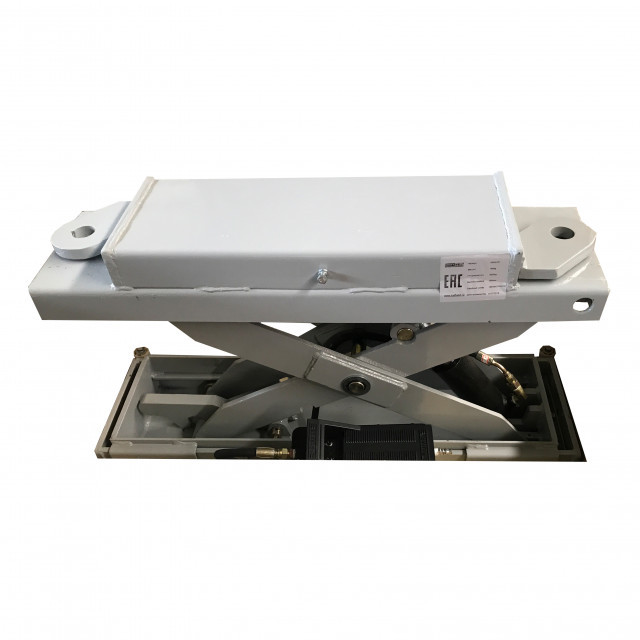

• Optional: Axle-free lift can be integrated – for even greater flexibility when working on the chassis, brakes and during wheel alignment*

--- IMPORTANT NOTE --- A forklift must be provided by the customer for unloading

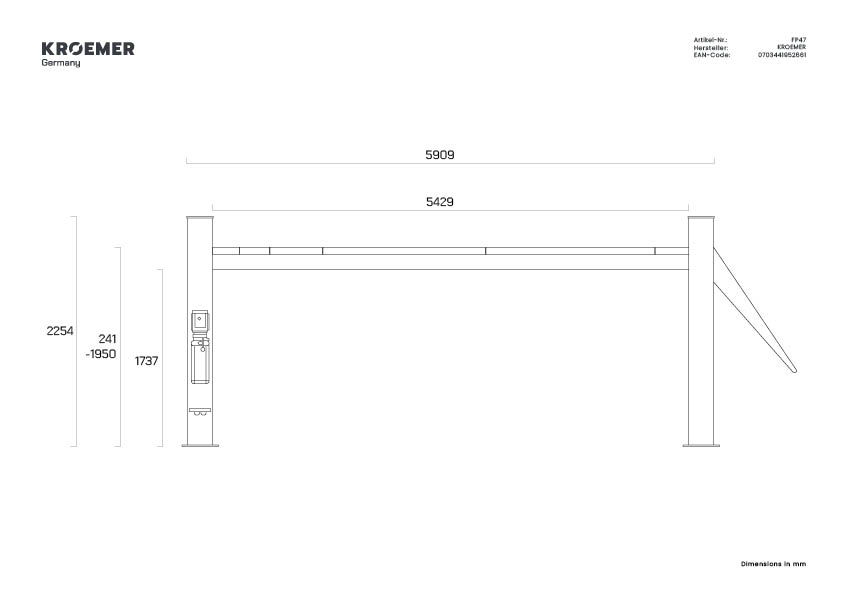

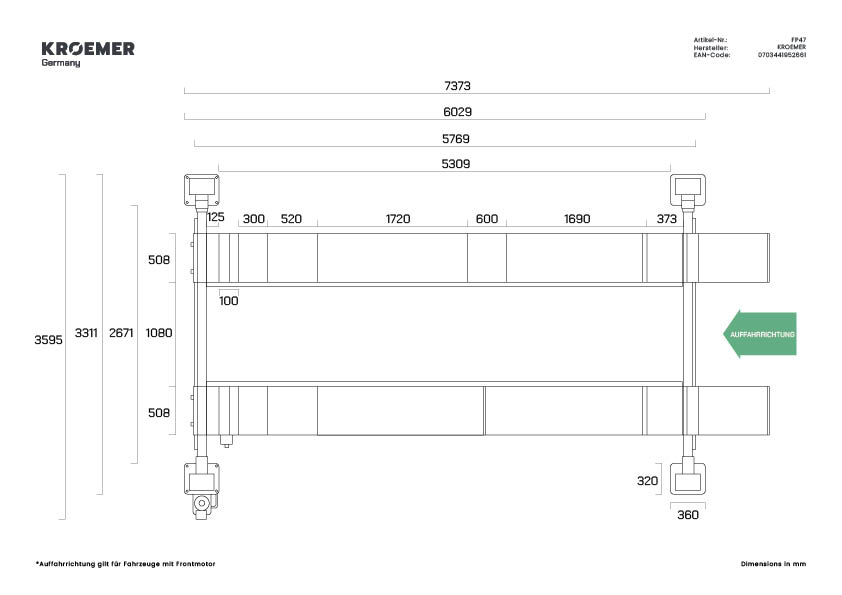

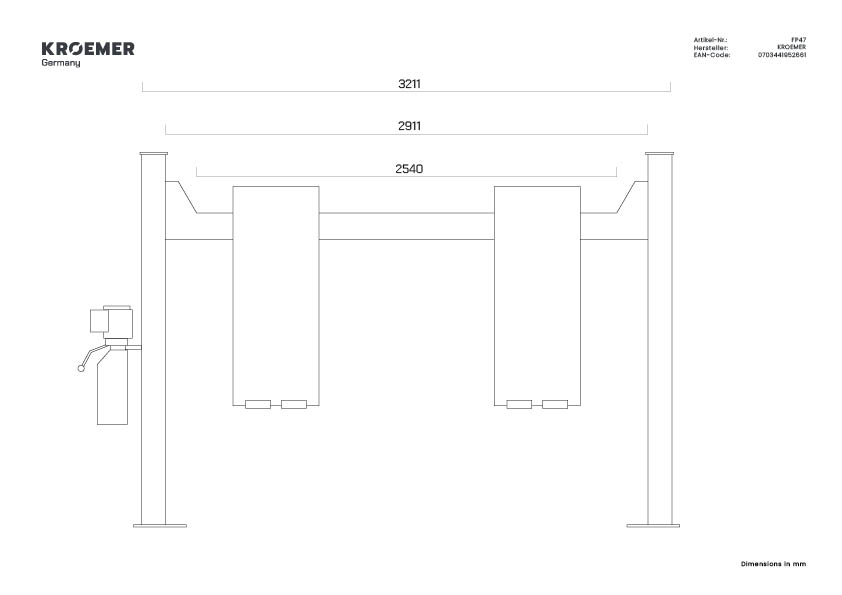

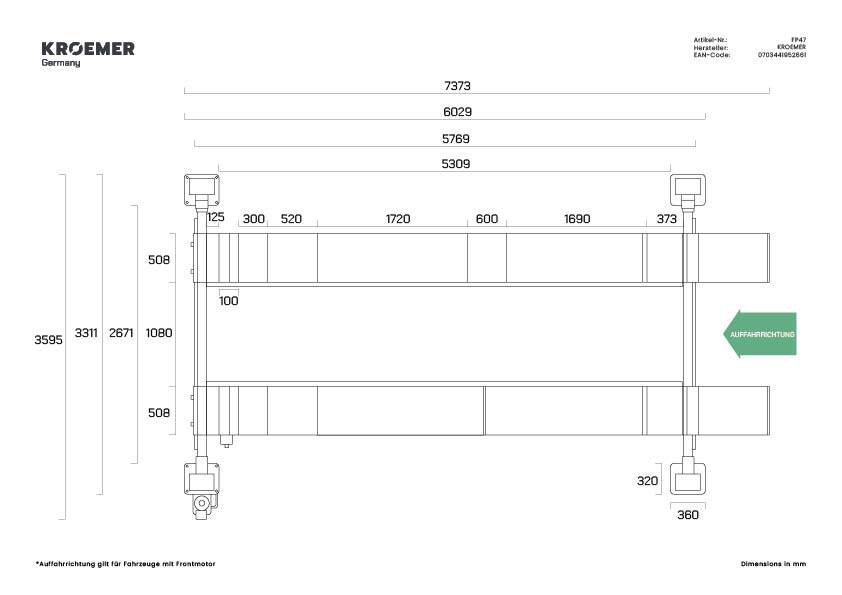

The FP47 4-post lift from Kroemer is a safe and versatile tool for lifting motor vehicles such as light goods vehicles and motorhomes (see dimensions and diagram).

This model is ideally suited to vehicles up to 6.5 tonnes with a long wheelbase, so even your largest vehicles should fit on the drive-on platforms!

The movable guide rails provide easy access to the underside of your vehicle, making tasks such as an oil change much easier! Thanks to the heavy-duty ramps, the 4-post lift can also be used for maintenance work on tyres and lower body panels.

Kroemer offers its customers only the very highest quality, as the FP47 service platform is manufactured to the highest precision using laser cutting and robotic welding.

Thanks to the built-in recesses for turntables at the front and the pre-fitted swing plates at the rear, the Kroemer 4-post lift is ideally suited for carrying out wheel alignment*. The FP47 can also be used as a headlamp alignment station, thanks to a precisely levelling, perforated rail system for aligning and positioning the load. This guarantees a high level of functionality!

Due to its own weight and high load capacity, the FP47 must be securely anchored to the floor. Please use the heavy-duty anchors included in the scope of delivery for this purpose.

Naturally, this model also comes with the comprehensive Kroemer guarantee, as the FP47 4-post car lift has been tested and approved in accordance with the Machinery Directive, Annex IV, with type examination, and was therefore manufactured in compliance with ISO and CE regulations. This ensures you’ll pass your health and safety inspection with flying colours. Should anything ever stop working, we always have the right spare part ready for you. Simply browse our shop!

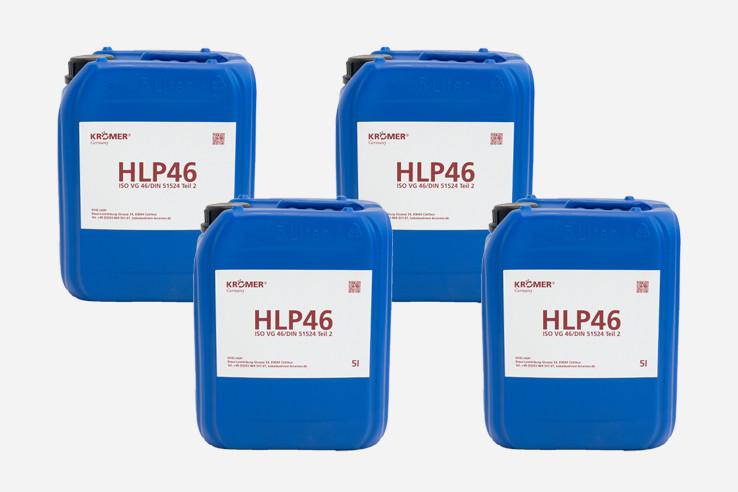

For initial commissioning, you will need DIN type HLP 46 hydraulic oil (12 litres required). Before operation, please read through the operating instructions, the concrete foundation plan and the operation and maintenance manual.

Electrical work must be carried out by suitably authorised qualified personnel.

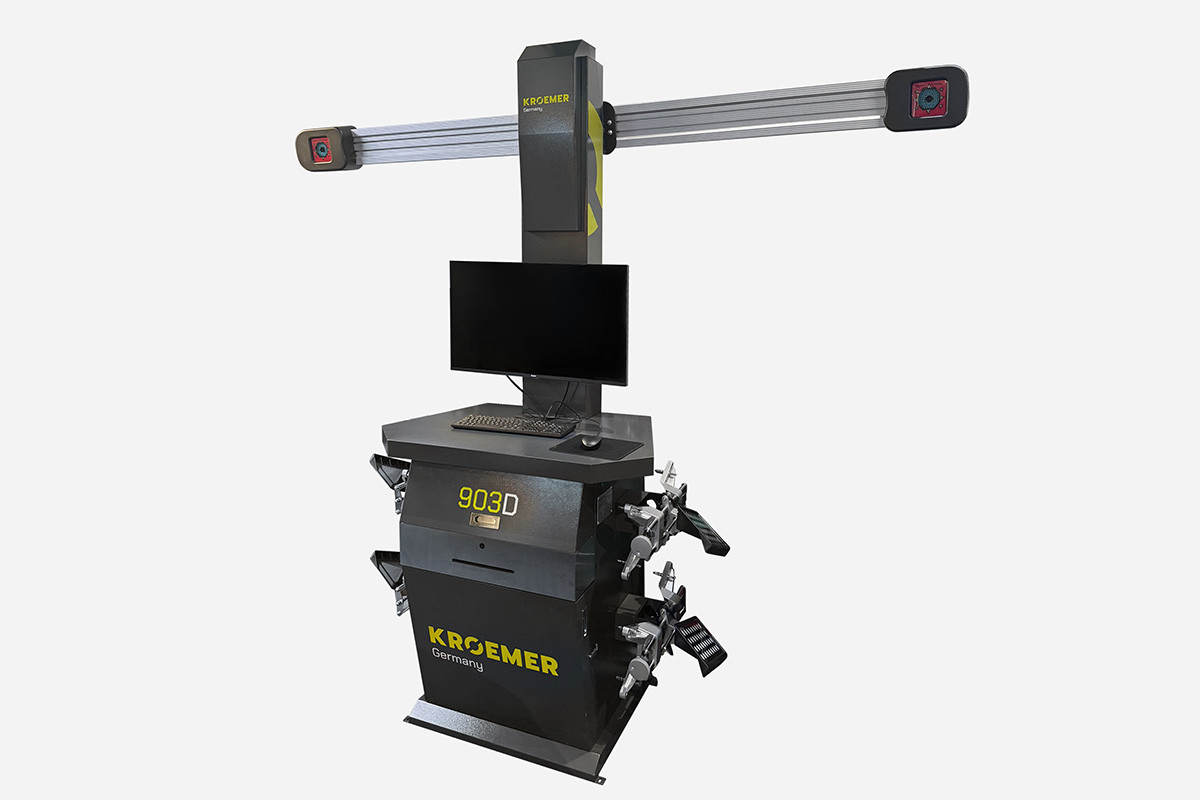

*Suitable for 3D wheel alignment by KROEMER (for external diagnostic devices, please enquire in writing before purchase – levelling after installation is essential)

**An additional hand pump is required to release the lifting platform from the safety lock

Our customer service advisers will be happy to advise you before purchase and help you choose the right lift for your needs.

Important note: Private customers must have the installation carried out by Kroemer Lifts. Commercial customers should familiarise themselves with the supplied instructions in advance. If self-installation is not possible, Kroemer Lifts’ installation service can be booked as an additional service for a fee. Commercial customers are also advised to use the professional installation service to ensure a safe and correct installation.

Not eligible for express shipping

Included in delivery:

• KRÖMER FP47 “Regensburg” 4-post lift
• 230V or 400V electric motor hydraulic unit
• German operating instructions and inspection log for UVV approval—available for download in our FAQs or here: Instructions and Inspection Log
• Heavy-duty anchors (12 pieces)

Not included in the delivery:

• Oil—but can be ordered as an option (filling capacity: 15 liters)
• Vehicle
• Chassis
• Axle-free lift (optional—SX008)

Below the description is the accessories section with a wide range of products and services for the FP47.

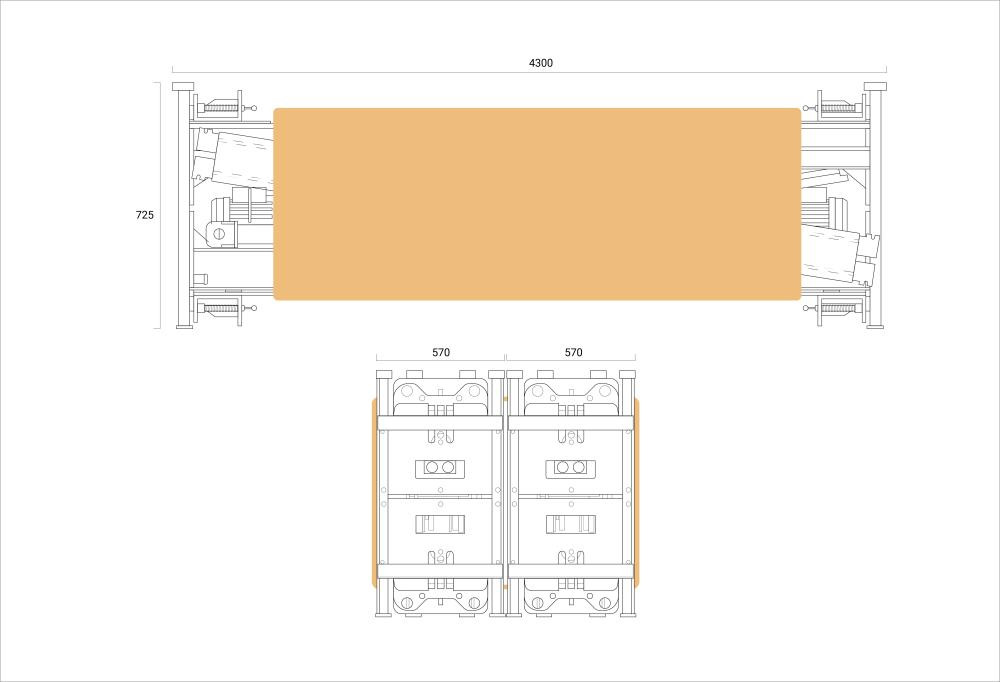

Information on Unloading

Despite the high-quality paint finish, scratches may occur during logistics, quality control, and installation on the stage.
