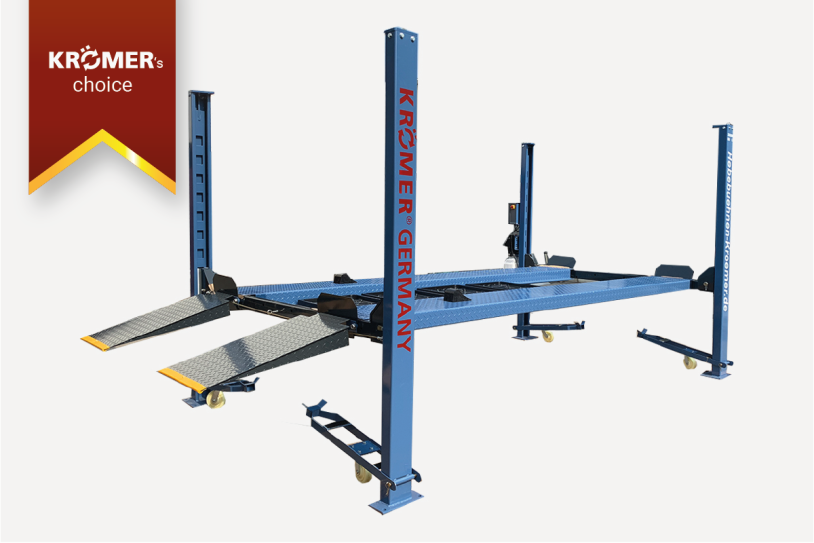

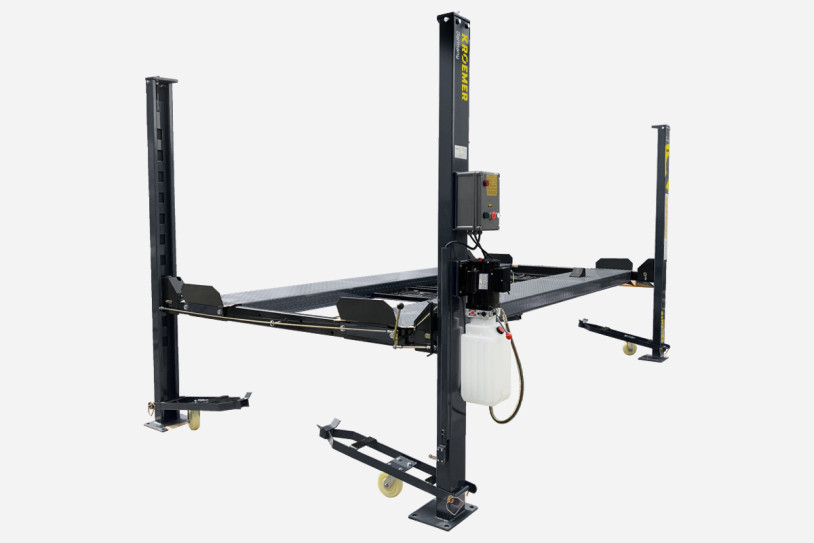

Mobile 4 Post Lift "Swansea" 3.6h Parking lift opt.

Special features of "Swansea"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

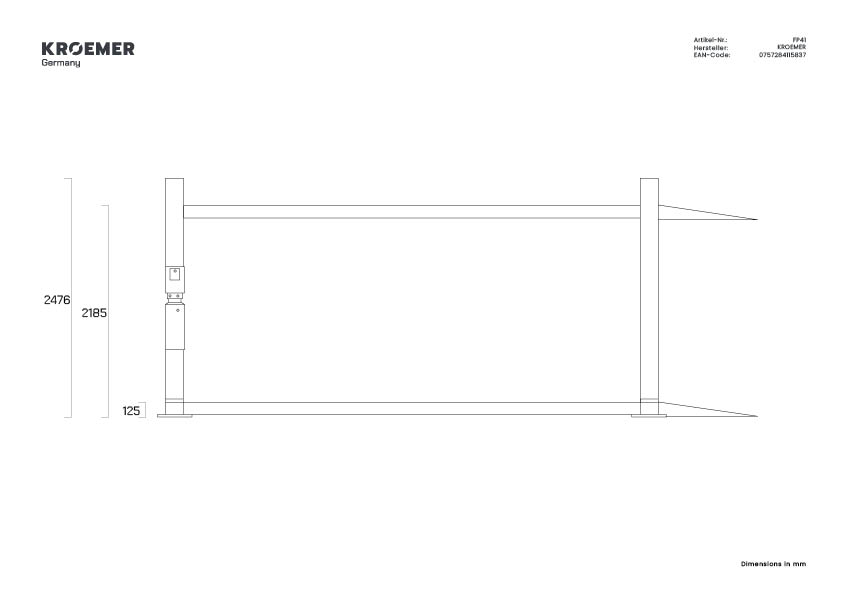

• Maximum lifting height 2,185 mm

• Signal tone and CE stop when lowering to prevent crushing in the foot area (foot trap protection)

• Safety locking system with pneumatically unlockable mechanical safety latch to prevent the lift from being lowered unintentionally

• Audible alarm and emergency stop button

• Exceptionally low clearance height: 125 mm

• Powder-coated finish, with a scratch-resistant surface

• Zinc plated bolts and screws
  cable break protection

• Convenient control box (protection class IP54 and 24 V control voltage)

• Powerful aluminum industrial electric motor with IP 54 control unit + aluminum hydraulic motor + metal oil tank

• Hydraulic cylinders under the runway for powerful lifting

• Hydraulic overload valve

• optional: mobile chassis

additional hand pump required

--- IMPORTANT NOTICE ---  When unloading, the customer must have a forklift available

Especially in the commercial professional sector, there are special requirements for car lifts. With the "Chemnitz" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles. Because the 4 post lift FP41 can lift and lower a maximum weight of up to 3,600 kg. Thus, cars and mobile homes can be lifted without any problems. The maximum lifting height is 2,185 mm and ensures problem-free parking under the platform. This means that large vehicles such as SUVs can be parked under the platform.

The 4 "Chemnitz" columns urgently need to be secured to the ground to ensure safety and stability when lifting your fleet. The heavy-duty anchors ( included in delivery ) are made exactly for this. The FP41 must be detached from the safety catch. This means that a hand pump is required to release the safety catch.

With this model, our "Krömer Easy Angles" can also be ordered as an option for €69. With the help of these practical offset plates, the hydraulic motor and control panel can be rotated at a 90° angle around the main column. It is thus possible for you to accommodate several stages in less space or to mount the columns close to the wall.

The noble and high-quality design with durable white sliding blocks and the powder coating round off the Krömer overall package.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Swansea" - FP41 has been tested and approved according to the Machinery Directive in accordance with Annex IV with type examination, so it was manufactured in accordance with ISO and CE regulations.This is how you succeed in APR approval with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! Sadly, this is not the case for the most of our competition which displays their attitude towards the customer.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel

Not eligible for express shipping

Scope of Delivery

• KRÖMER 4-post lift FP41 "Swansea"
• Electric motor 230V or 400V hydraulic unit

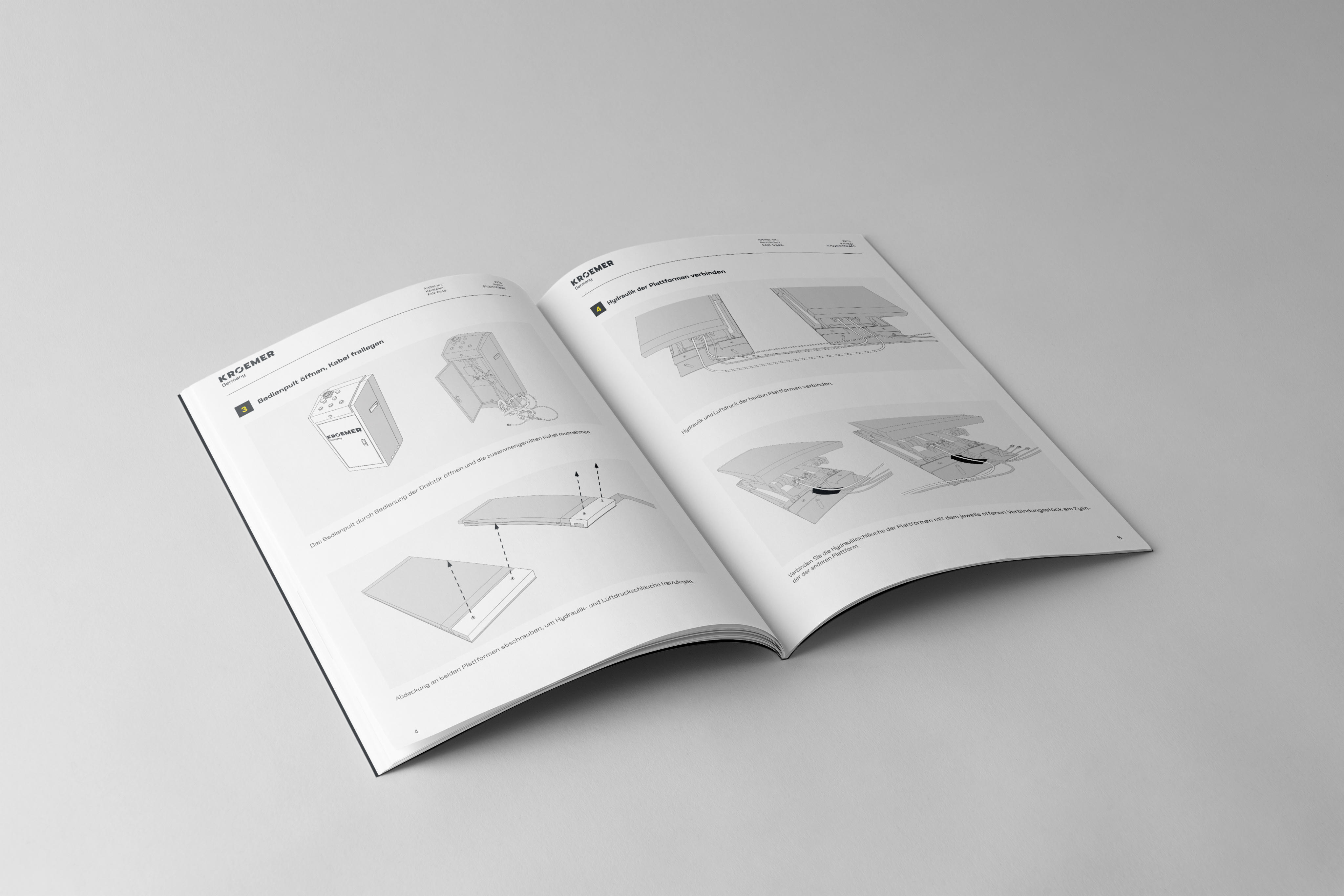

• German operating manual and inspection log for UVV inspection available for download in our FAQs or instructions and inspection log
• Heavy-duty anchors (12 pieces)
• Mobile chassis system

Not included in the delivery

• Oil – optionally available for separate order (filling volume: 15 liters)
• Vehicle

Unloading information

Despite the high-quality paint finish, minor scratches may occur during logistics handling, quality control, or assembly.
