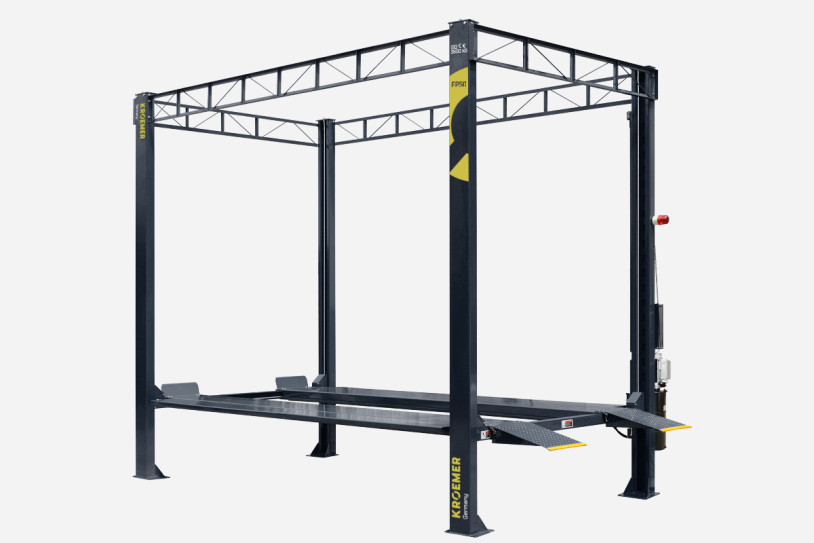

4 Post Parking Lift "Seville" Vehicle Lift Auto Lift

Special features of "Sevilla"

• 1A processing quality, with CE certificate for UVV acceptance

• Production according to ISO 9001

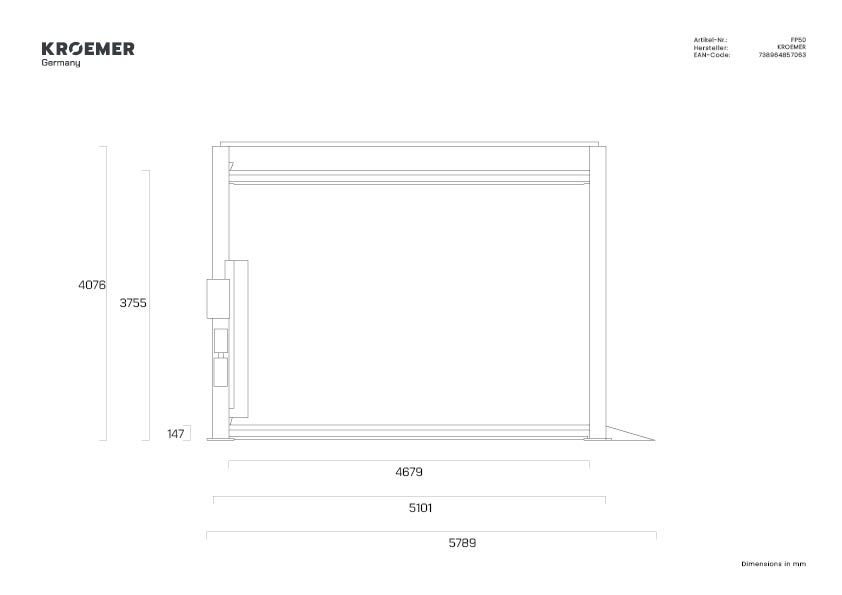

• Maximum lifting height 3755 mm

• High-quality and solid construction (weight 1380 kg)

• Optional additional 230 V socket on the switch box

• Exceptionally low ride height (147mm)

• Signal tone and CE-Stop when lowering to prevent crushing in the foot area (foot trapping protection)

• Safety locking system with pneumatically unlockable mechanical safety latch to prevent the lift from being lowered unintentionally

• Powder-coated finish, with a scratch-resistant surface

• Rope breakage protection and slack rope

• Mechanical safety catches

• Powder-coated finish, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Hydraulic cylinder under the runway promises powerful lifting

• Hydraulic overload valve

• optional: mobile chassis

--- IMPORTANT NOTICE ---  When unloading, the customer must have a forklift available

Especially in the commercial professional sector, there are special requirements for car lifts. With the "Sevilla" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 3,200 kg. With a lifting height of up to 3755mm, larger vehicles such as SUVs can also be parked under the platform.

The 4-post lift should be fixed to the ground as a matter of urgency to ensure safety and stability when lifting your vehicles. The heavy-duty anchors included in the scope of delivery are used for successful floor fixation.

Optionally available are 4 plastic drip pans and a metal oil pan. Krömer ensures that nothing goes wrong in the future.

In addition, the "Krömer Easy Angles" can be ordered optionally for €49. With the help of these practical offset plates, the hydraulic motor and control panel can be rotated at a 90° angle around the main column. It is thus possible for you to accommodate several stages in less space or to mount the columns close to the wall.

The ramps of the stage are painted in RAL 7016.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Krefeld" - FP50 has been tested and approved according to the Machinery Directive in accordance with Appendix IV with a type examination, so it was manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products! Sadly this is not the case for most of our competition, which diplays their attitude towards the customer.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required).

Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel. The assembly must be carried out by a specialist with several years of experience in the field of lifting platforms.

* additional hand pump is required to release the lift from the safety catch

Krömer 4-post lift
Color options between*:
FP50-Blue or
FP51-Anthracite

Electric motor 230V or 400V hydraulic unit
English operating instructions and test book for the APR acceptance as a download in our FAQ's or here instructions and test book
Heavy-duty anchor (12 pieces)

Not included in delivery:
Oil (required capacity: 15 liters)
vehicle

*The customer only receives the product that was ordered. The listed color selection serves as a guide.
