Vehicle lift 4 Post 4.5t Wheel Alignment "Cardiff"

Special features of "Cardiff" FP45

• 1A processing quality, with CE certificate for APR acceptance

• Production according to ISO 9001

• Signal tone and CE stop during the lowering to prevent accidents (foot trapping protection)

• Safety locking system with pneumatically unlockable mechanical safety latch to prevent from the unintentional lowering

• Slack rope safety device and emergency lowering system for lowering in case of power failure

• manual unlocking and security grid

• Audible alarm and emergency stop button

• Maximum wheelbase for alignment: 3700 mm

• Maximum wheelbase for lifting: 4320 mm

• IP 54 control box with 24 V control unit

• 24 V limit switch

• Locking positions over total lifting height

• Powerful aluminum industrial electric motor with IP 54 control unit + aluminum hydraulic motor + metal oil tank

• Powder-coated finish, with a scratch-resistant surface. Powerful hydraulic cylinder under the running surface

• Hydraulic overload valve

• Overload protection by means of a pressure relief valve

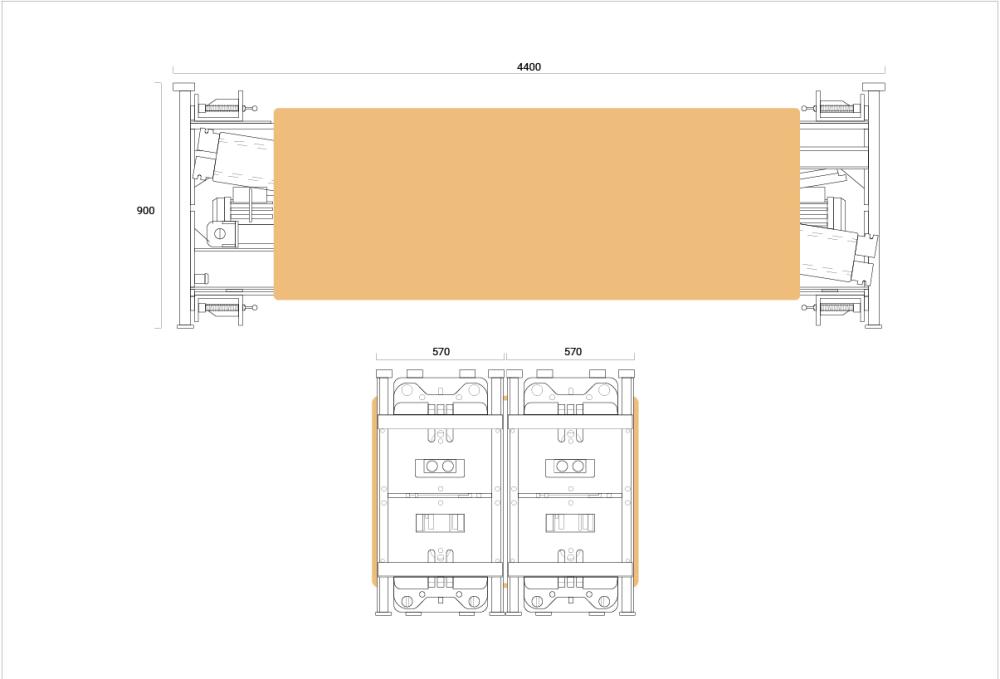

--- Important note  ---  During the unloading of the shippment the customer must possess a forklift

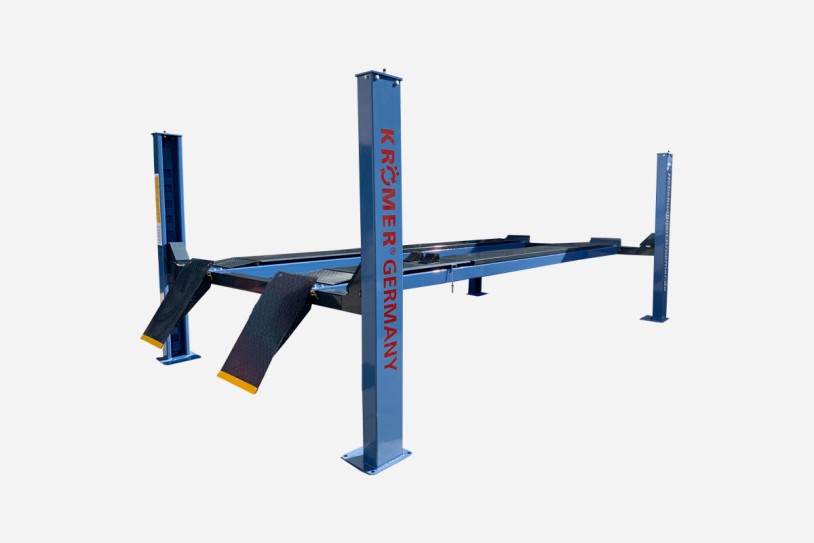

The "Cardiff" FP45 4-post lift has a load capacity of 4,500 kg. This makes the lift particularly well suited for reception, wheel alignment, repairs and headlight adjustment.

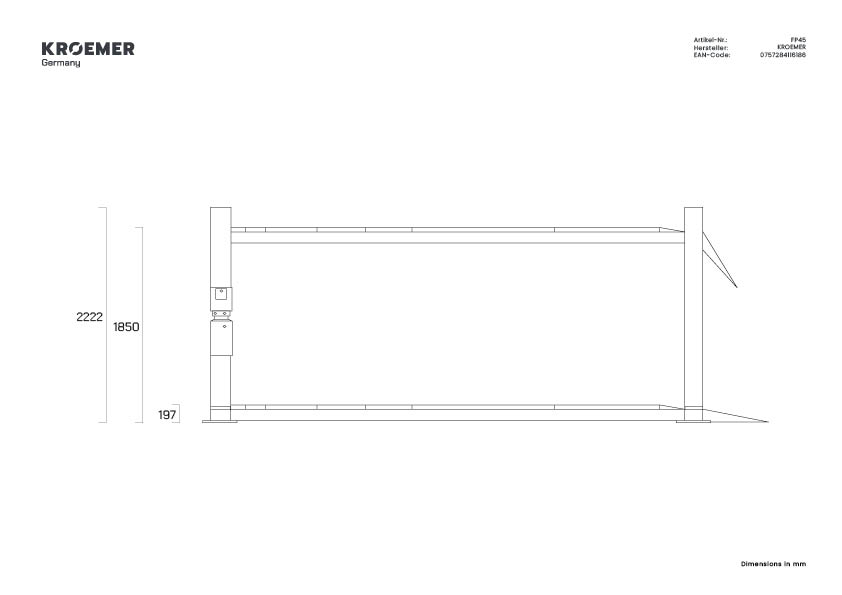

Due to the maximum lifting height of 1,850 mm, your vehicle can be parked without any problems. With the low drive-over height of 197 mm and the long ramps of up to 4990 mm, the FP45 is also suitable for lowered vehicles.

The 4-post lift should be fastened to the ground as soon as possible to ensure stability and safety when lifting your vehicle fleet. The fixing anchors supplied are used for fixing to the floor.

Only the best quality for our customers! The Krömer 4-post car lift impresses with its high-precision production using laser flame cutting and robotic welding. In addition, our 4 pillars are characterized by durable technology and robust components (almost maintenance-free)! No more paint scratches and poor processing. Your new 4-post lift from Krömer is powder-coated.

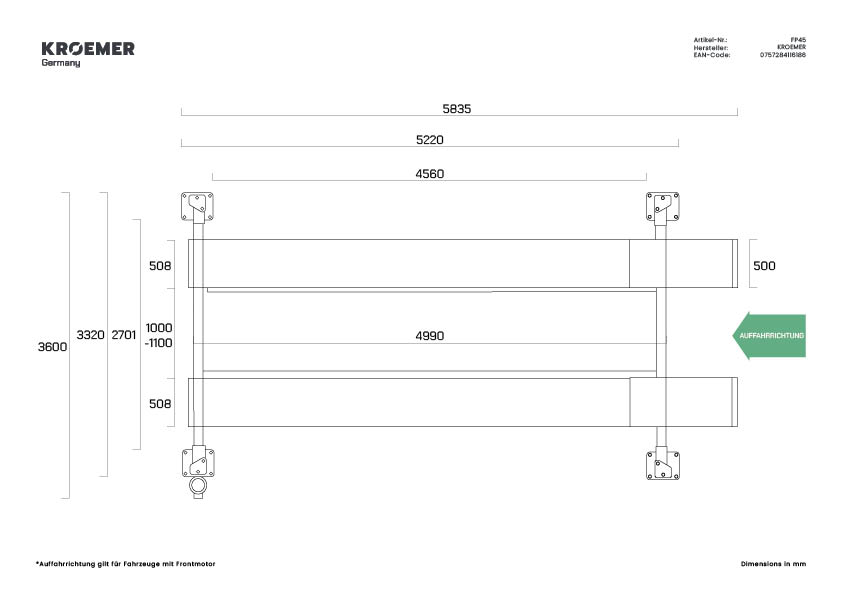

The platform is ideal for lifting vehicles with a long wheelbase (platform length: 4.9m). Access to the underbody of your vehicle is excellent due to the movable rails!

Work comfortably with the Krömer lift! No swiveling of support arms under the vehicle. Just lift and repair! Raising and lowering the stage with the click of a button!

Due to the built-in recesses for rotary plates at the front and the already built-in oscillating plates at the rear, the Krömer KFZ 4 column is ideally suited for wheel alignment and/or also as a headlight parking space due to the precisely levelable perforated system of the rails for aligning and driving up the load. This guarantees high functionality!

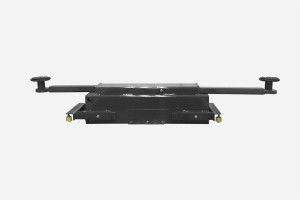

Optionally available are 4 plastic drip pans PLUS an oil pan made of metal. Krömer ensures that nothing goes wrong in the future. The axle-free jack can also be ordered as an option for a higher lifting height.

With this model, our Krömer "Easy Angles" can also be ordered as an option for €69. With the help of these practical offset plates, the hydraulic motor and control panel can be rotated at a 90° angle around the main column. It is thus possible for you to accommodate several stages in less space or to mount the columns close to the wall.

The ramps of the stage are painted in RAL 7016.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Cardiff" - FP45 has been tested and approved according to the Machinery Directive in accordance with Appendix IV with a type examination, so it was manufactured in accordance with ISO and CE regulations.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required) and air compressor (10 bar). Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be worked through. Electrical work must be carried out by appropriately authorized specialist personnel. The assembly must be carried out by a specialist with several years of experience in the field of lifting platforms.

* additional hand pump is required to release the lift from the safety catch
