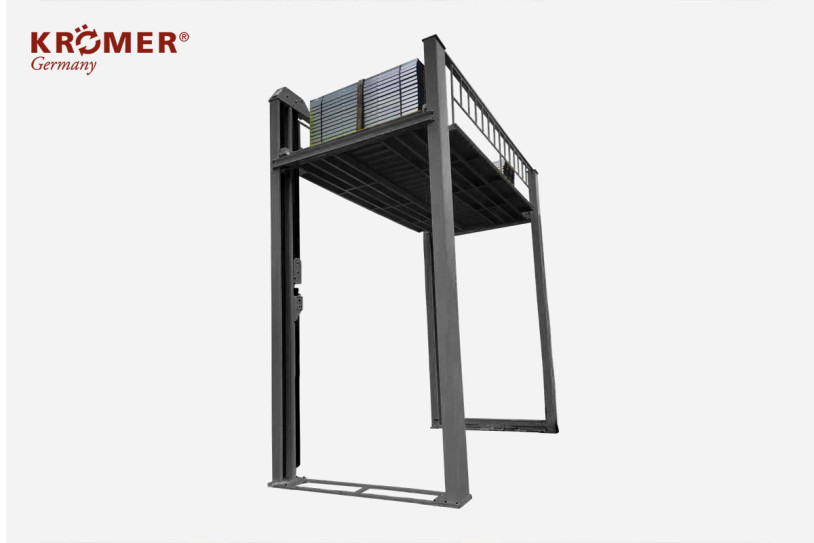

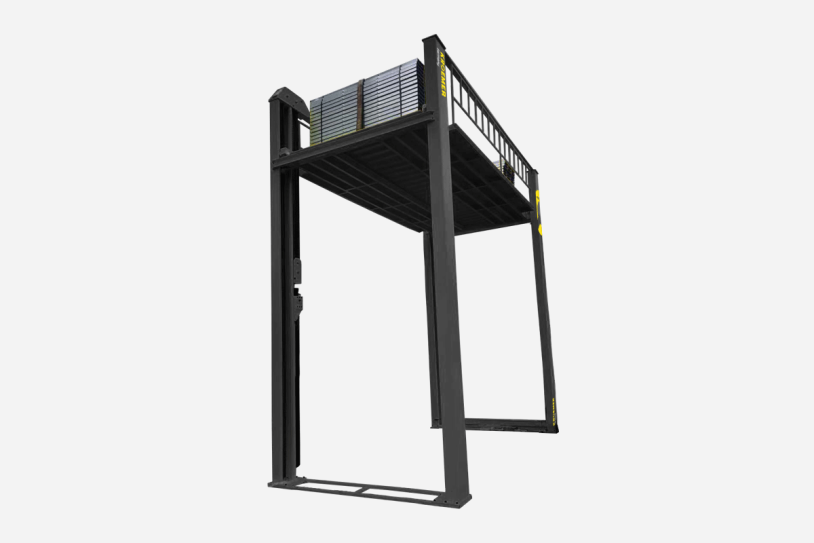

Kroemer FP58 4-post car lift

Kroemer FP58 4-Post Floor-to-Floor Lift – 3,000 kg Lifting Capacity, 5,186 mm Lifting Height and 2 Parking Stop Heights

The Kroemer FP58 is a powerful 4-post goods lift designed for professional applications with particularly high demands on lifting capacity, lifting height and stability. With a lifting capacity of approx. 3,000 kg, an exceptional lifting height of up to 5,186 mm and a generous platform area of approx. 5.8 × 2.9 m, the FP58 is ideal for transporting vehicles and loads between different levels.

The heavy-duty construction with 5 mm thick columns, an especially robust LH1266 safety and drive chain and a non-slip platform surface is designed for reliable and safe operation. Convenient operation is supported by the fully automatic safety release, the 24 V control panel with remote control and a powerful 4 kW hydraulic motor. The FP58 therefore combines high lifting performance, generous dimensions and comprehensive safety technology in a professional solution for demanding lifting and transport applications.

• Goods lift
• Column thickness: 5 mm
• Safety chain: LH1266 – extra heavy-duty
• Platform surface: 5# anti-slip finish
• Minimum drive-on height: 200 mm

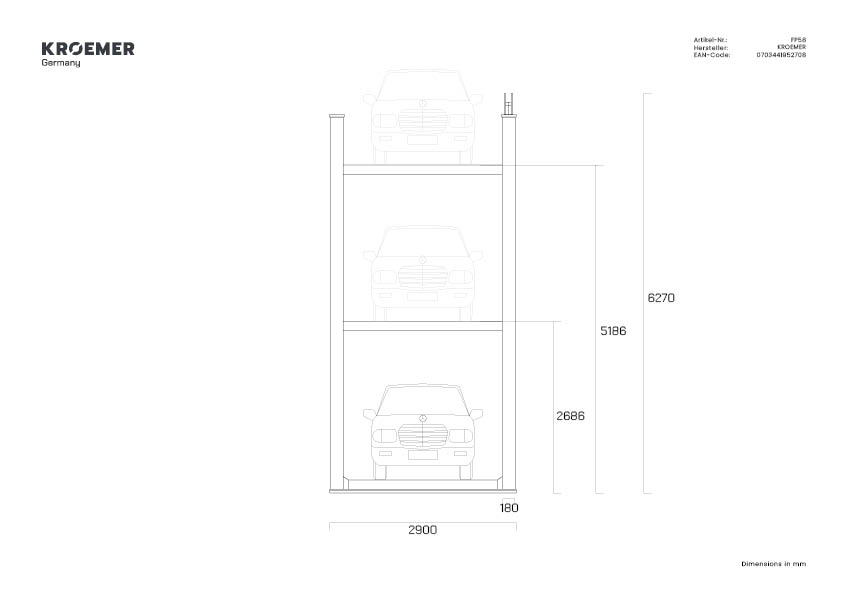

• Exceptional lifting height: 5,186 mm
• Weight: approx. 3,000 kg

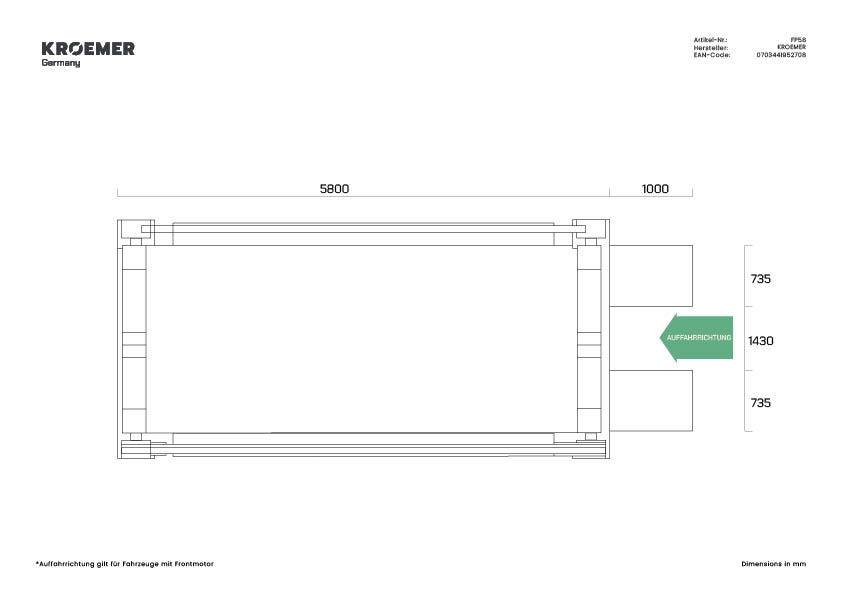

• Platform size: 5.8 × 2.9 m
• 1A build quality with CE certification for UVV inspection
• Manufactured in accordance with ISO 9001
• Hydraulic motor: 4 kW
• 24 V control panel including remote control
• Fully automatic safety lock with pneumatic release (external compressor required – not included)
• Reliable hydraulic cylinders with double seals
• Drive chain: LH1266
• Working pressure: 14 MPa
• Lifting speed: 4 metres per minute
• Powder-coated finish with scratch-resistant surface
• Platforms with anti-slip coating
• Control: manual or via remote control
• Load capacity: approx. 3,000 kg
• Equipped with a double-seal cylinder
• Concrete requirements: minimum concrete thickness 350 mm (grade C35/45 in accordance with 2006/42/EC)

--- IMPORTANT NOTICE --- A forklift with a minimum lifting capacity of 3 tonnes must be provided by the customer for unloading.

Attention: The FP58 must be delivered and installed by Kroemer Hebebühnen. Installation costs approximately €3,000. Please read the required conditions under item number ABS04 carefully. By purchasing the lift, you accept these requirements. Changes are only possible following written approval by the workshop manager.

The lift can be used for a wide range of maintenance work on tyres and lower vehicle components.

The FP58 can also be used effectively as a parking lift. With a lifting height of more than 5 m, an additional intermediate stop and a powerful 24 V control unit, it can also reach elevated parking levels with ease.

The FP58 4-post lift is manufactured with high precision using laser cutting, allowing Kroemer to provide a high standard of quality. Your new Kroemer 4-post lift features a powder-coated finish, making the surface particularly resistant to scratches.

DIN HLP 46 hydraulic oil is required for initial commissioning (50 litres required). Before operation, the operating instructions, concrete foundation plan and operating and maintenance manual must be read carefully.

Electrical work must only be carried out by appropriately authorised qualified personnel.

Attention: A 10 bar compressor is required.

Before operation, the operating instructions, concrete foundation plan and operating and maintenance manual must be read carefully. Electrical work must only be carried out by appropriately authorised qualified personnel. Installation must be carried out by the manufacturer; otherwise, no warranty can be provided for the lift.

*Attention: For commercial purchases of this lift, the 14-day right of return does not apply, as this type of lift is manufactured to order after purchase. Private purchases are only possible with prior written approval.

*** Purchase is only possible in combination with the Kroemer installation service ABS04. Additional costs apply.
