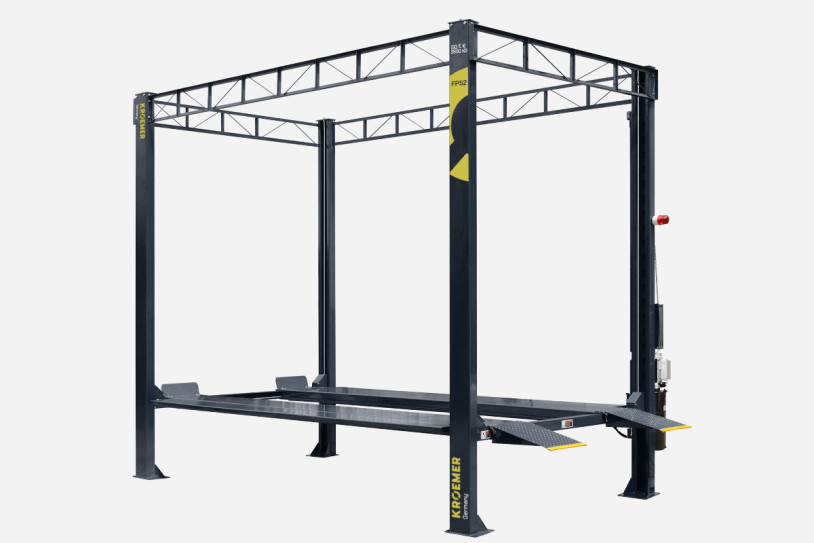

Cottages 4 Post Parking Lift Car Lift "Lisburn"

Special features of "Lisburn"

• 1A processing quality, with CE certificate for APR acceptance

• Production according to ISO 9001

• Maximum lifting height 3,800 mm

• High-quality and solid construction (weight 1380 kg)

• Optional additional 230 V socket on the switch box

• Signal tone and CE-Stop when lowering to prevent crushing in the foot area (foot trapping protection)

• Safety locking system with pneumatically unlockable mechanical safety latch to prevent the lift from being lowered unintentionally

• Powder-coated finish, with a scratch-resistant surface

• Rope breakage protection and slack rope

• Mechanical safety catches

• Powder-coated finish, with a scratch-resistant surface

• Convenient control box (protection class IP54 and 24 V control voltage)

• Hydraulic cylinder under the runway promises powerful lifting

• Hydraulic overload valve

--- IMPORTANT NOTICE ---  When unloading, the customer must have a forklift available

The 4-post lift should be fixed to the ground urgently to ensure safety and stability when lifting your fleet.

Especially in the commercial professional sector, there are special requirements for car lifts. With the "Lisburn" model, Krömer provides you with the perfect companion for hydraulic lifting of motor vehicles with a maximum weight of up to 3,200 kg. With a lifting height of up to 3,800mm, larger vehicles such as SUVs can also be parked under the platform.

Optionally available are 4 plastic drip pans PLUS an oil pan made of metal. Krömer ensures that nothing goes wrong in the future.

With this model, our "Krömer Easy Angles" can also be ordered as an option for €49. With the help of these practical offset plates, the hydraulic motor and control panel can be rotated at a 90° angle around the main column. It is thus possible for you to accommodate several stages in less space or to mount the columns close to the wall.

The ramps of the stage are painted in RAL 7016.

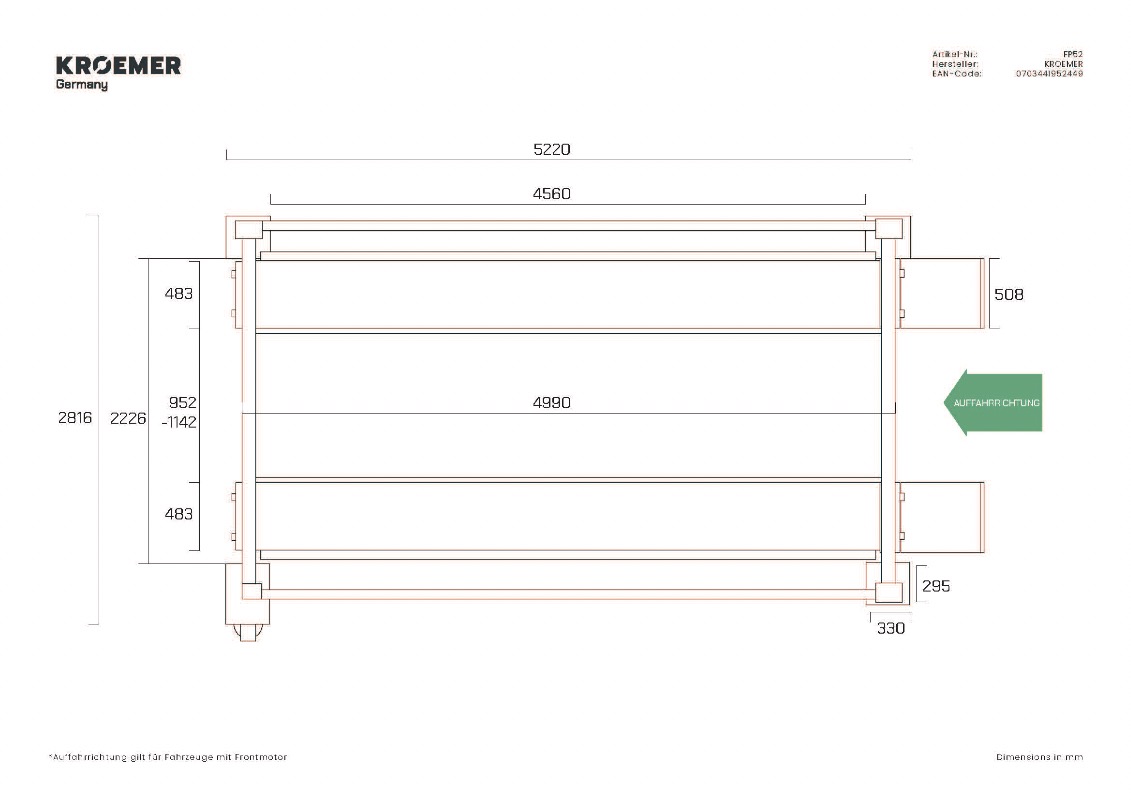

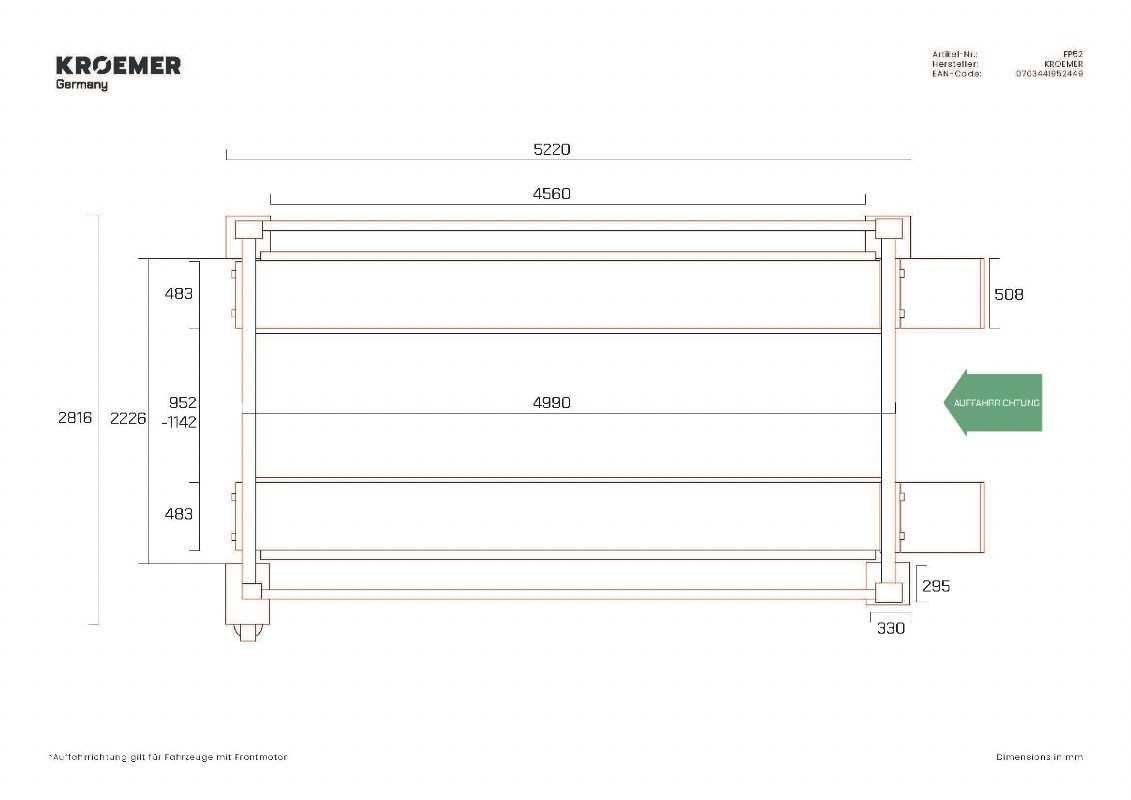

The difference to the FP50 "Sevilla" is in size. The FP52 "Lisburn" has a width of 2735 mm. Thus, the FP52 has wider ramps with defference of 508 mm.

Of course, this model also comes to you with the comprehensive Krömer guarantee, because the 4-post car lift "Lisburn" - FP52 has been tested and approved according to the Machinery Directive in accordance with Appendix IV with a type examination, so it was manufactured in accordance with ISO and CE regulations. This is how you succeed in the APR acceptance with distinction. If something should stop working, we always have the right spare part ready for you.

We have Allianz product liability insurance and business liability insurance on our products!Sadly this is not the case for the most of our competiton which displays their attitude towards the customers.

For the first start-up you need hydraulic oil of the DIN type HLP 46 (12 liters required).

Before operation, the operator's manual, the concrete foundation plan and the operation and maintenance manual must be read through. Electrical work must be carried out by appropriately authorized specialist personnel. The assembly must be carried out by a specialist with several years of experience in the field of lifting platforms.

* additional hand pump is required to release the lift from the safety catch

Not Eligible for Express Shipping

Scope of Delivery:

• KRÖMER 4-Post Lift FP52
• 230V or 400V electric motor hydraulic power unit
• German operating instructions and inspection logbook for UVV inspection approval, available as a download in our FAQs or via the manual and inspection logbook
• Heavy-duty anchors (12 pieces)

Not Included in Delivery:

• Oil – can be ordered separately as an option (required quantity: 15 liters)
• Vehicle
• Caster kit
• Rolling jack / wheel-free lifting jack

Below the description you will find the accessories section with a wide range of products and services for the FP52.

Information on Unloading

Despite the high-quality paint finish, scratches may occur on the lift due to logistics, quality control procedures, and assembly.
